2.Shell Diameter;600-1200mm
3.Capacity:10-120t/h
4.Separate magnetite, hematite etc.
Working principle of Dry Magnetic Separator Price :
Slurry enters chute through ore tank firstly, and then separating zone by waterpower. Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged into concentrate box by water effect. Gangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
Features of Dry Magnetic Separator Price :
1. High magnetic intensity.
2. Low energy consumption.
3. Good beneficiating efficiency.
4. Simple structure and easy maintenance.

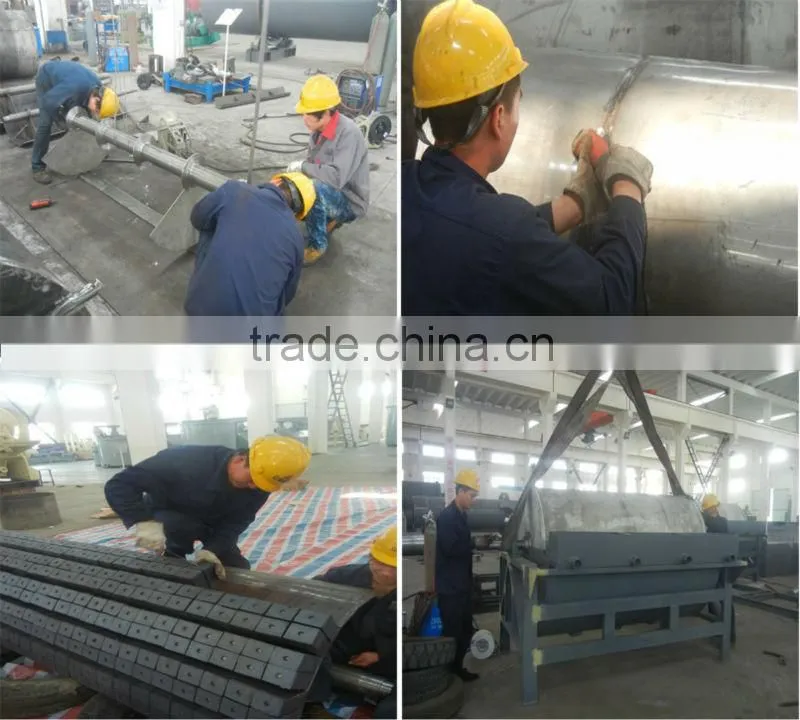

Welding & Assembling Process of dry magnetic separator price:
Types of Dry Magnetic Separator Price :
We have various of Dry Magnetic Separator Price , such as CTB612, CTB618, CTB718, CTB918, CTB1018, CTB1024,
CTB1224,etc. In order to give you a responsible quotation, you can inform us the following information:
1. What’s the material you are going to deal with?
2. What’s the granularity of the material?
3. What’s the granularity of the final products are you going to achive?
4. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.

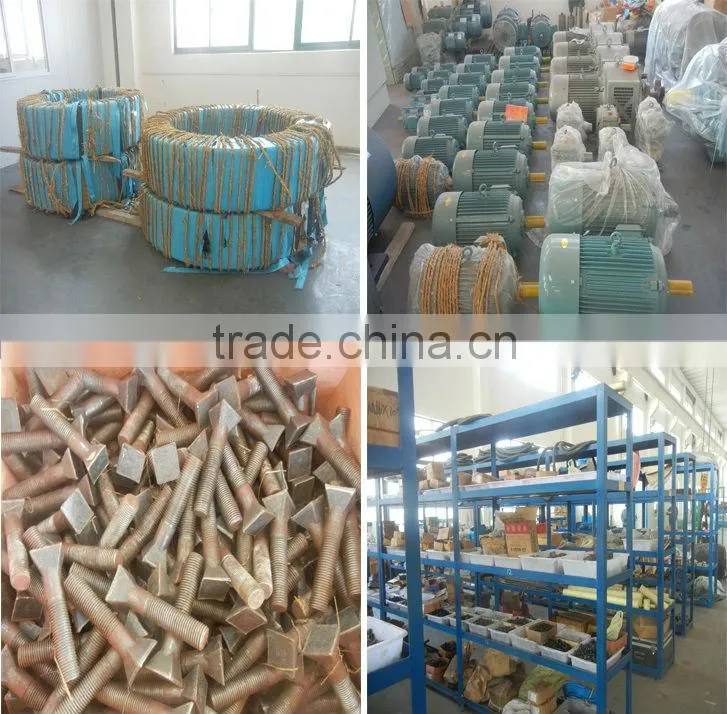

Spare parts of dry magnetic separator price:

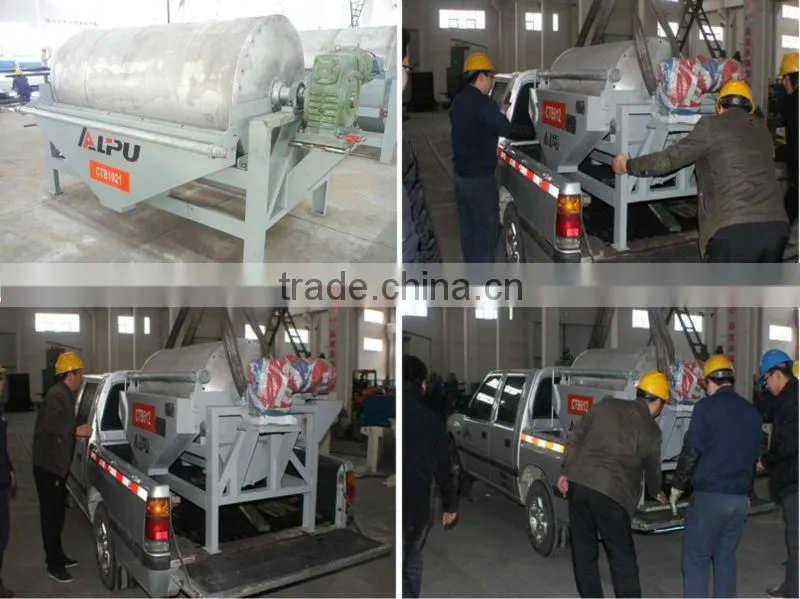

Delivery site of dry magnetic separator price:
Main Technical Dry Magnetic Separator Price :
| Model |
Shell diameter(mm) |
Shell length(mm) |
Capacity (t/h) |
Power (kw) |
Overall dimension L×W×H(mm) |
Weight (t) |
| CTB612 | 600 | 1200 | 10-20 | 1.1 | 2030×1200×1140 | 1.5 |
| CTB618 | 600 | 1800 | 15-30 | 2.2 | 2630×1200×1140 | 1.8 |
| CTB718 | 750 | 1800 | 20-45 | 3 | 2690×1380×1330 | 2.2 |
| CTB918 | 900 | 1800 | 25-55 | 4 | 2730×1600×1550 | 2.9 |
| CTB924 | 900 | 2400 | 35-70 | 4 | 3330×1600×1550 | 3.6 |
| CTB1018 | 1050 | 1800 | 40-75 | 5.5 | 2800×1760×1750 | 4.3 |
| CTB1024 | 1050 | 2400 | 60-120 | 5.5 | 3200×1760×1750 | 5.2 |
| CTB1030 | 1050 | 3000 | 70-150 | 7.5 | 3950×1760×1750 | 6.3 |
| CTB1218 | 1200 | 1800 | 60-110 | 5.5 | 2850×1980×1940 | 5 |
| CTB1224 | 1200 | 2400 | 70-130 | 7.5 | 3450×1980×1940 | 6.4 |
| CTB1230 | 1200 | 3000 | 80-160 | 7.5 | 4050×1980×1940 | 7.8 |
| CTB1530 | 1500 | 3000 | 100-180 | 11 | 4230×2300×2350 | 9.2 |
| CTB1540 | 1500 | 4000 | 115-220 | 11 | 5230×2300×2350 | 10.5 |
