Shanghai Impact Crusher Manufacturer With Latest Technology
US$ 1,000 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Impact Crusher, Impact Crusher Manufacturer
Application:
Granite limestone, etc, Granite, lime stone, concrete aggregate
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai qingdao dalian for Impact Crusher Manufacturer Export.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
World Class Mechanical Feeder for Ore DressingUS$ 1,000 - 99,999MOQ: 1 Set -
Linear Dewatering Machine for Fine SandUS$ 1,500 - 999,999MOQ: 1 Set
-
New Feeder Vibrator DesignUS$ 1,500 - 99,999MOQ: 1 Set
-
Cheap Material Vibrating Feeder PriceUS$ 1,500 - 99,999MOQ: 1 Set
-
Cheap Small Sand Washing Machine SupplierUS$ 1,000 - 999,999MOQ: 1 Set
Condition
New
Type
Other, Impact Crusher, Impact Crusher Manufacturer
Application
Granite limestone, etc, Granite, lime stone, concrete aggregate
Motor Type
AC Motor
Power(W)
90000-250000
Capacity(t/h)
15-310t/h
Place of Origin
Shanghai, China
Brand Name
LIPU impact crusher manufacturer
Model Number
PF series impact crusher manufacturer
Dimension(L*W*H)
According to model
Weight
15-38t
Certification
CE,ISO9001:2000,BV
Warranty
One Year, One Year
After-sales Service Provided
Engineers available to service machinery overseas
Brief introduction of impact crusher manufacturer :
Impact Crusher adopts the newest manufacturing technology and unique structure design, so the discharged product is with cubic and perfect shape, no tension and crack. This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, concrete aggregate, etc.

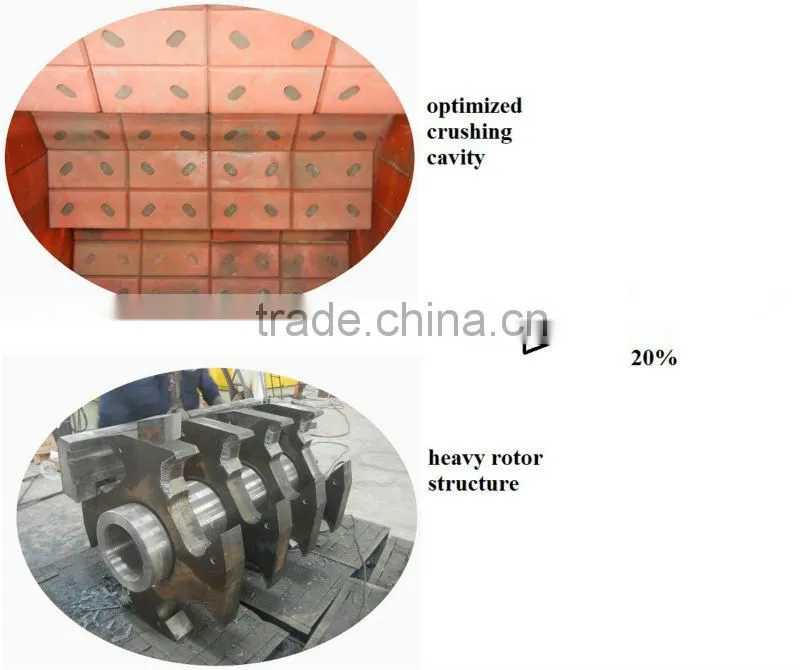

Advamtages of impact crusher manufacturer:

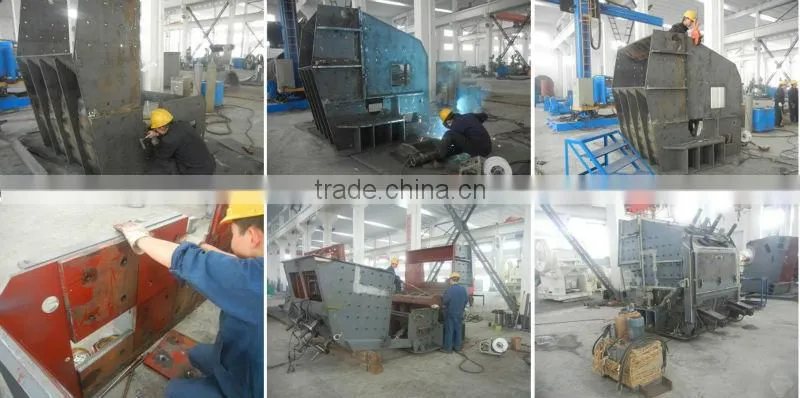

Manufacturing process

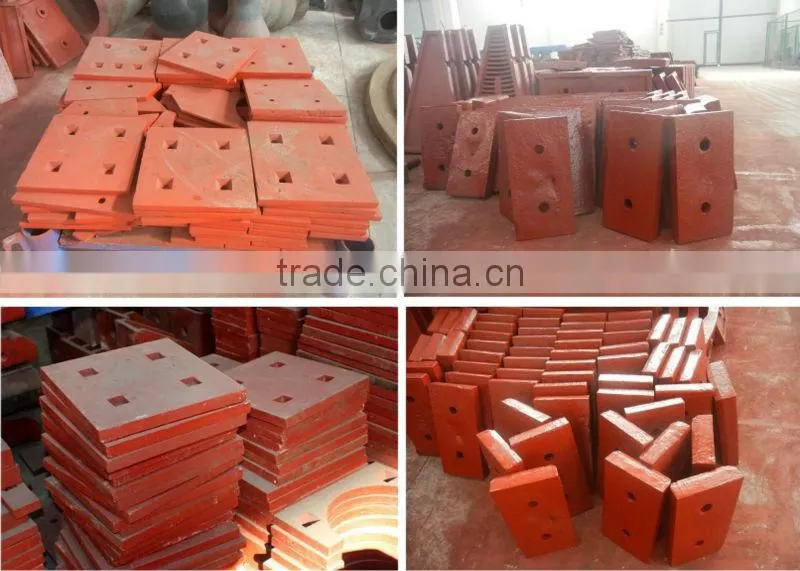

Liners of impact crusher manufacturer
Working principle of impact crusher manufacturer :
When the machine works, the rotor rotates with high speed when the crusher is driven by motor. Materials enter crushing chamber and impact with hammers on the rotor, and are thrown to impact plate for being crushed, and then are rebounded back to hammers for being crushed again. The materials enter the first chamber, the second chamber, and the third chamber for being crushed repeatedly until they are crushed into suitable size. The final product is discharged from the outlet. Product size and shape can be adjusted by adjusting space between impact plate and rotor.
Product parameter of impact crusher manufacturer :
| Model | Rotor specification (mm) | Max feeding size (mm) | Capacity (t/h) | Power (KW) | Weight (t) | Overall dimension (L x W x H) (mm) |
| PF0807 | 750×700 | 300 | 15-30 | 45 | 8.1 | 2210×1490×2670 |
| PF1007 | 1000×700 | 300 | 25-60 | 55 | 9.5 | 2400×1558×2660 |
| PF1010 | 1000×1050 | 350 | 50-80 | 75 | 12.2 | 2400×2250×2720 |
| PF1210 | 1250×1050 | 350 | 70-120 | 110 | 14.1 | 2690×2330×2890 |
| PF1214 | 1250×1400 | 400 | 110-180 | 132 | 18.6 | 2690×2688×2890 |
| PF1315 | 1320×1500 | 500 | 160-250 | 20 | 23.4 | 3096×3273×2667 |
| PF1320 | 1320×2000 | 600 | 200-310 | 315 | 27.5 | 3280×3570×2920 |
