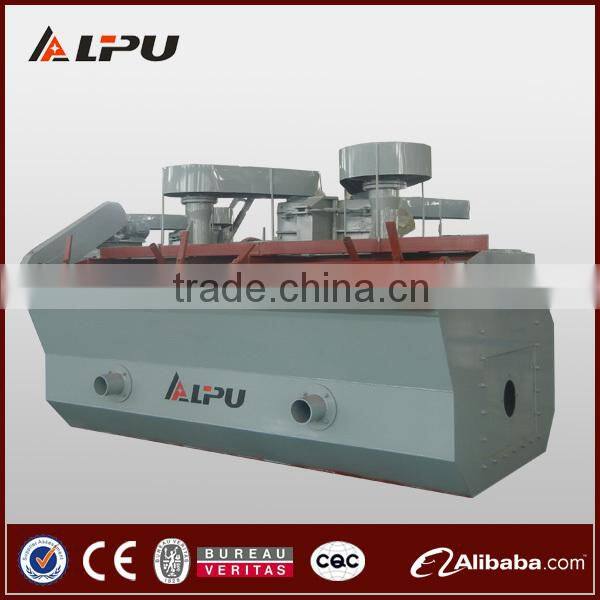

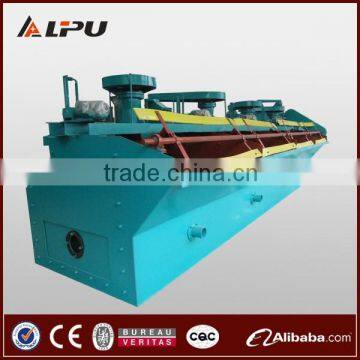

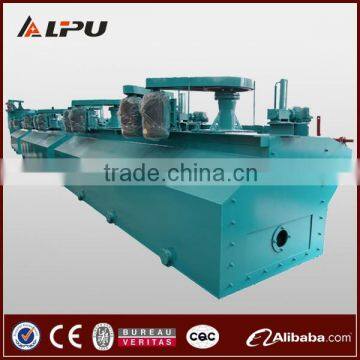

XJK&SF Auto Air Suction and Auto Pulp Suction Flotation Machine
Brief Introduction of Auto Pulp Suction Flotation Machine:
Flotation Machine is suitable to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mineral, chemical rough and etc. It can be used in roughing, scavenging, concentration or reverse flotation. In flotation machine, the slurry mixed with drugs would be stirred and inhaled air, so that valuable minerals adhere to bubbles, float to slurry surface and then scraped off ,other minerals still stay in the slurry, thus valuable minerals are separated out.
Features of Auto Pulp Suction Flotation Machine:
1.Large inhaling capacity and low consumption.
2.Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3.Reasonable circulation of slurry decreases coarse sand sedimentation.
4.Automatic controlling device makes adjustment more convenient.
Working principle of Auto Pulp Suction Flotation Machine:
The motor transmits power through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when moving jaw moves.So the moving jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
*Technical Parameters-SF series of Flotation Machine
Modle |
Cell volume(m³) |
Impeller diameter(mm) |
Impeller speed |
Capacity (m³/min) |
Main motor power(kW) |
Scraper motor power(kW) |
Weight |
SF0.37 |
0.37 |
300 |
442 |
0.2-0.4 |
1.5 |
1.1 |
0.4 |
SF0.7 |
0.7 |
350 |
400 |
0.3-1 |
3 |
1.1 |
0.9 |
SF1.2 |
1.2 |
450 |
312 |
0.6-1.2 |
5.5 |
1.1 |
1.4 |
SF2.8 |
2.8 |
550 |
268 |
1.5-3.5 |
11 |
1.1 |
2.2 |
SF4 |
4 |
650 |
235 |
2--4 |
15 |
1.5 |
2.6 |
SF8 |
8 |
760 |
191 |
4--8 |
30 |
1.5 |
4.3 |
SF16 |
16 |
850 |
190 |
5--16 |
45 |
1.5 |
7.4 |
*Technical Parameters-BFseries of Flotation Machine
Model |
Cell volume (m³) |
Impeller diameter(mm) |
Impeller speed (r/min) |
Air inflow (m³/m2.min) |
Capacity (m³/min) |
Power (kW) |
Weight (t/cell) |
BF2.8 |
2.8 |
550 |
278 |
0.9-1.1 |
1.4-3 |
11 |
2.1 |
BF4 |
4 |
650 |
235 |
0.9-1.1 |
2.4-4 |
15 |
2.6 |
BF6 |
6 |
700 |
205 |
0.9-1.1 |
3--6 |
18.5 |
3.3 |
BF8 |
8 |
760 |
188 |
0.9-1.1 |
4--8 |
22 |
4.1 |
BF10 |
10 |
760 |
188 |
0.9-1.1 |
5--10 |
22 |
4.5 |
BF16 |
16 |
850 |
195 |
0.9-1.1 |
8--16 |
37 |
8.3 |
BF20 |
20 |
850 |
195 |
0.9-1.1 |
10--20 |
45 |
8.7 |
BF24 |
24 |
920 |
181 |
0.9-1.1 |
12--24 |
45 |
9 |
*Technical Parameters-KYF series of Inflatable Flotation Machine
Model |
Cell volume (m³) |
Impeller diameter (mm) |
Impeller speed (r/min) |
Air pressure of air blower (kPa) |
Max. Air inflow (m3/m2.min) |
Capacity (m3/min) |
Main motor power (kW) |
Scraper motor power (kW) |
Weight (t/cell) |
KYF1 |
1 |
340 |
281 |
≥12.6 |
2 |
0. 2-1 |
4 |
1. 1 |
0. 8 |
KYF2 |
2 |
410 |
247 |
≥14.7 |
2 |
0. 4-2 |
5. 5 |
1. 1 |
1. 5 |
KYF3 |
3 |
480 |
219 |
≥19.8 |
2 |
0. 6-3 |
7. 5 |
1. 5 |
1. 9 |
KYF4 |
4 |
550 |
200 |
≥19.8 |
2 |
1. 2-4 |
11 |
1. 5 |
2. 2 |
KYF8 |
8 |
630 |
175 |
≥21.6 |
2 |
3. 0-8 |
15 |
1. 5 |
4. 2 |
KYF16 |
16 |
740 |
160 |
≥25.5 |
2 |
4. 0-16 |
30 |
1. 5 |
6 |
KYF24 |
24 |
800 |
150 |
≥30.4 |
2 |
4. 0-24 |
30 |
1. 5 |
7. 5 |
KYF38 |
38 |
880 |
138 |
≥34.3 |
2 |
10-38 |
37 |
1. 5 |
10. 3 |
Producing Process of Auto Pulp Suction Flotation Machine:
Delivery Site of Auto Pulp Suction Flotation Machine:
Work Site of Auto Pulp Suction Flotation Machine:
