Specifications
Sand Fine Crusher:1.PXJ series,ISO9001:2000
2.Feed size:150-180mm
3.Out put size:0-20mm
4.Capacity:55-310mm

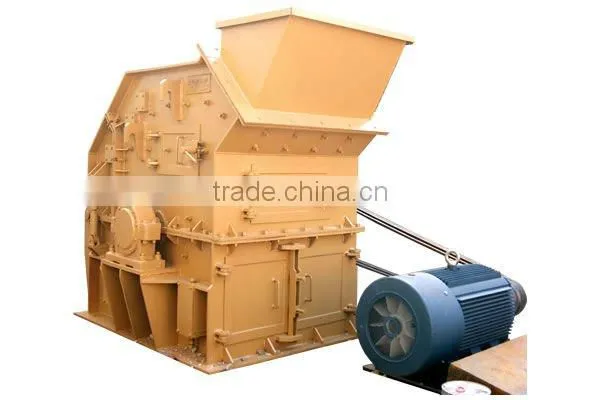

Fine Crusher,Sand Fine Crusher
1.Sand Fine Crusher Feather:
1.Model:PXJ series,ISO9001:2000
2.Feed size:150-180mm
3.Out put size:0-20mm
4.Capacity:55-310t/h
Sand Fine Crusher has many advantages, like reliable performance, easy structure, convenient maintenance, big capacity, long life hammer. It is widely used in granite, basalt, limestone, river gravel, cement clinker, quartz, iron ore, bauxite, etc. It is also used in road, railway, water conservancy, airport, construction, cement, refractories, metallurgy, etc.
2.Working principle of Sand Fine Crusher:
When the Fine Crusher is working, materials are crushed primarily in the first crushing chamber by the high speed moving rotor against the hammer, and then enter the secondary chamber for fine crushing, at last, the final materials are discharged.
3.Product parameter of Sand Fine Crusher:
| Model | Inlet size (mm) | Feed Size (mm) | Out-put size (mm) | Capacity(t/h) | Power (kw) |
| PXJ0808 | 550×330 | <150 | 0-20 | 55-65 | 55 |
| PXJ1010 | 1000×350 | <150 | 0-20 | 65-75 | 75 |
| PXJ1212 | 1200×450 | <180 | 0-20 | 90-100 | 132 |
| PXJ1414 | 1500×500 | <180 | 0-20 | 100-150 | 260 |
| PXJ1616 | 1600×550 | <180 | 0-20 | 190-250 | 250 |
| PXJ1818 | 1800×800 | <180 | 0-20 | 280-310 | 315 |
Any change of technical parameters, there is no further notice.
4.After-Sale Service:
Erection and Commissioning
Operator Training
Spare Parts Supply
Warranty Terms: More than 12 months
Delivery Time:25~30 days after receiving advanced payment
Products Certificate: CE, ISO9001:2000
