Home > Products > Crushing&Screening Plants > Impact crusher hammer miller stone crusher exporters from china

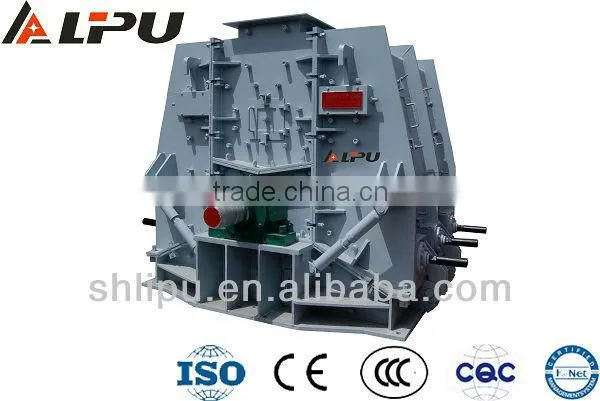

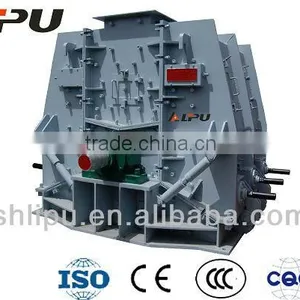

Impact crusher hammer miller stone crusher exporters from china
- 90 Set / Sets per Month
- shanghai qingdao ningbo tianjin
- T/T
Product Details
Condition: | New | Type: | Hammer Crusher | Application: | sanding crushing |
Power(W): | 220,000-1,000,000 | Capacity(t/h): | 100-550 | Place of Origin: | Shanghai, China |
Brand Name: | LIPU | Model Number: | PCFK | Dimension(L*W*H): | According to capacity |
Weight: | 19-60t | Certification: | CE,ISO9001:2000 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Export Standard container or as customers requirements
Product Description
Specifications
impact crusher hammer miller::PCFK Impact Hammer Crusher;
2.feed size:0-80mm;
3.discharge size:0-8mm;
4.hot sell.
Beief Introduction of Impact crusher hammer miller :
Reversible Impact Hammer Crusher has advantages of both Hammer Crusher and Impact Crusher. It can break brittle materials of medium hardness, such as coking coal, anthracite, coal used for fluidized bed boiler of heat power plant, coal gangue, gypsum, alum, etc.
Working Principle of Impact crusher hammer miller :
Reversible Impact Hammer CrusherMaterials enter crushing chamber from feeding hopper, and are impacted to wear-resisting toothed plates on inlet by high speed hammers, this is the first crushing process. Crushed materials with almost the same size enter the main crushing chamber for second crushing. Materials from main crushing chamber are impacted between toothed plates and hammers for many times, and discharged from the outlet. Final product size can be controlled by adjusting space between rotor and impact plates.
Technical Parameters of Impact crusher hammer miller :
Model | Rotor Diameter(mm) | Rotor Length(mm) | Feed Size(mm) | Discharge Size(mm) | Capacity(t/h) | Rotary Speed(r/min) | Power(kw) | Weight(t) | |
|
|
|
| 100% | 93% |
|
|
|
|
PCFK-1212 | Φ1200 | 1200 | ≤80 | 0-8 | 0-3 | 100-180 | 740 | 220-280 | 19 |
PCFK-1214 | Φ1200 | 1400 | ≤80 | 0-8 | 0-3 | 120-220 | 740 | 220-280 | 21 |
PCFK-1216 | Φ1200 | 1600 | ≤80 | 0-8 | 0-3 | 150-250 | 740 | 315-355 | 24 |
PCFK-1414 | Φ1400 | 1400 | ≤80 | 0-8 | 0-3 | 220-300 | 740 | 355-450 | 25 |
PCFK-1416 | Φ1400 | 1600 | ≤80 | 0-8 | 0-3 | 250-330 | 740 | 355-560 | 30 |
PCFK-1616 | Φ1600 | 1600 | ≤80 | 0-8 | 0-3 | 280-350 | 740 | 450-560 | 32 |
PCFK-1618 | Φ1600 | 1800 | ≤80 | 0-8 | 0-3 | 300-400 | 740 | 560-710 | 37 |
PCFK-1818 | Φ1800 | 1800 | ≤80 | 0-8 | 0-3 | 400-450 | 740 | 710-800 | 45 |
PCFK-1820 | Φ1800 | 2000 | ≤80 | 0-8 | 0-3 | 450-500 | 740 | 800-900 | 50 |
PCFK-1825 | Φ1800 | 2500 | ≤80 | 0-8 | 0-3 | 500-550 | 740 | 900-1000 | 60 |
Company Profile
![](http://res.goldsupplier.com/3/1_753_21082_320_185.jpg)
Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants.
We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance.
While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions.
Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
