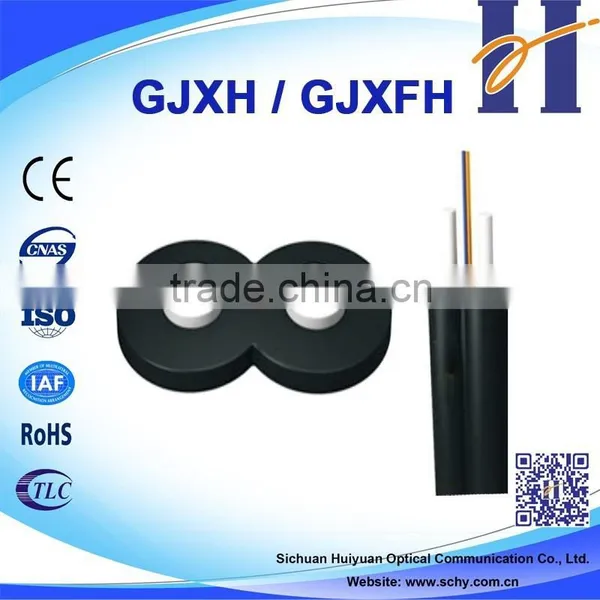

GJXH METAL BUTTERFLY INTRODUCTION OF FIBER OPTIC ACCESS NETWORK
GJXH METAL BUTTERFLY INTRODUCTION OF FIBER OPTIC ACCESS NETWORK
1. Simple structure,light weight and high tensile strength.
2. Special groove design,easily strip and splice, simplified installation and maintenance.
3. Two parallel steel wires ensure tensile.
4. Crush resistance and flexibility.
5. Low smoke zero halogen and flame retardant sheath, environment-friendly and good security.

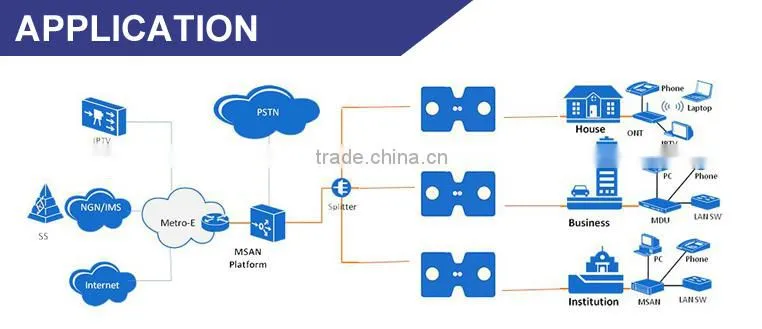

1.Used as access building cable
2.Used in indoor cabling especially used for FTTH
| Cable Count |
Out sheath Diameter |
Weight |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (KG) | short term | long term | short term | long term | Static | Dynamic | (°C) | |
| 2 | (2.0±0.1)×(3.0±0.1) | 10.5 | 200 | 100 | 2200 | 1000 | 20 | 40 | -20~+60 |
| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 |
A1a:50/125 A1b:62.5/125 |
Graded-index fiber |
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657(A1,A2 ,B3) |
B4: Main technical data for positive dispersion shifted single-mode fiber |
|||
Based on ISO9001, ISO14001 and OHSAS18001, we establish quality management system, environmental management system and occupational safety and heal management system, to ensure all flow of the process including: designing, R&D, purchasing, manufacturing, inspection and testing, packing, warehousing, delivery, and service in control.
Huiyuan (Shenzhen Stock Exchange: 000586), is one of the leading cable manufacturers in China, providing superior professional fiber optic cables to worldwide customers.
Huiyuan specializes in R&D, manufacture and sales of all kinds of optical fiber cables, including ADSS, OPGW, OPPC, micro air blown cable, fiber optic unit, optical fiber ribbon and so on. Untill now, the company has its full range of optical fiber cable to EU, Canada, Korea, Malaysia, Australia, Thailand, Vietnam, Zambia, Colombia, Nepal, Philippine, Bulgaria, and so on.
The company has achieved certificates of Quality Management System ISO9001, Environment Management System ISO14001, and Health and Safety Management System OHSAS18001.
Huiyuan's target is to be the most highly regarded and successful fiber optic cable company in the world and brings convenience to people.
Packaging Detail: Special wooden drum or iron wooden drum is also available according to cable size and packing length or customer required.
Delivery Detail: 30 days after confirmation of order and payment or customer required
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW, ADSS and Plastic optic fiber are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
