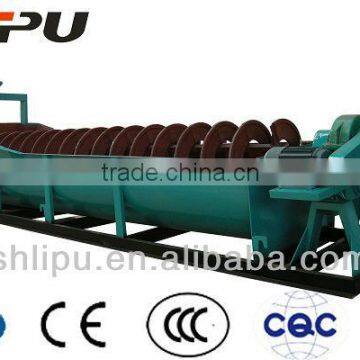

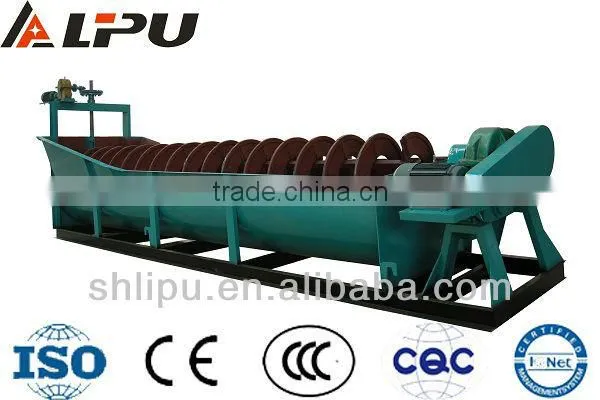

Gravel Sand Washing Machine for Stone Making
Brief Introduction of Gravel Sand Washing Machine:
The XSL Series of spiral Sand Washing Machine is suitable for washing and selecting, classifying, and trash-extracting in indusies, like metallurgy, construction, water and electricity, etc. this series of machine is suitable for washing and selecting materials of mid-fine and rough granularity.
Working Principle of Gravel Sand Washing Machine:
When the machine is working, the material goes into the input part. it will push the material to the output through the machine. surface dust and impurity are removed when the material from the input part to the output part is pushed, mixed and washed. the final product goes out through the discharge outlet and the mud and impurity will go out through overflow part.
Gravel Sand Washing Machine Features:
1.high level cleaning and reasonable structure.
2.large capacity and small power consumption
3.small loss of sand during the process of sand washing.
Technical Parameters of Gravel Sand Washing Machine:
| model | spiral diameter(mm) | capacity(t/h) | power(kw) | weight(t) |
| XSL-50 | 500 | 12-20 | 3 | 2.55 |
| XSL-75 | 750 | 40-55 | 5.5 | 3.82 |
| XSL-100 | 1000 | 60-75 | 7.5 | 4.87 |
| XSL-120 | 1200 | 80-100 | 11 | 6.9 |
| XSL-150 | 1500 | 100-130 | 18.5 | 8.8 |
| XSL-200 | 2000 | 130-160 | 22 | 19 |
| 2XSL-100 | 1000 | 120-150 | 7.5*2 | 8.9 |
| 2XSL-120 | 1200 | 160-200 | 11*2 | 13.1 |
Producing Process of Gravel Sand Washing Machine:
Delivery Site of Gravel Sand Washing Machine:
Work Site of Gravel Sand Washing Machine:
