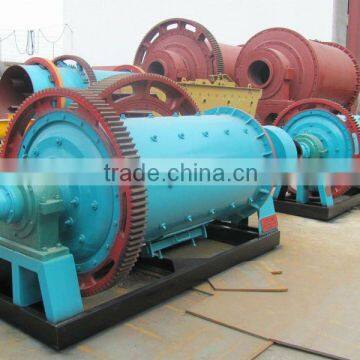

World Advanced Technology Ball Mill Classifier
Brief Introduction of Ball Mill Classifier:
LIPU ball mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc.When ball mill works, certain water and other liquid will be added into materials to increase flowability of materials, so the capacity is increased.
Features of Ball Mill Classifier:
1. Large application range, simple structure and convenient maintenance.
2. Large capacity and continuous work are very obvious.
3. Barrel lining and grinding media can apply various abrasive materials.
4. Installation and adjustment are very convenient and easy to be operated.
Working Principle of Ball Mill Classifier:
When the Ball Mill works, motor and speed reducer transmit torque force to big and small gears of Ball Mill, so the barrel rotates. When the barrel rotates, Steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted. Grinding media mixing with materials impact and grind materials continuously. The grinding media and materials impact and grind each other when the Ball Mill rotates continuously. The final product will be discharged from outlet when it meets the request, so the grinding process is finished.
Technical Parameters of Ball Mill Classifier:
Model |
Effective volume(m3) |
Max. steel ball load (t) |
Capacity (t/h) |
Power(kW) |
Rotary speed(rpm) |
Weight (t) |
||||
MQG |
MQY |
MQS |
MQG |
MQY |
MQS |
|||||
φ900×1800 |
1 |
1.3 |
1.7 |
2 |
0.9-1.6 |
1.7-3.2 |
2-3.7 |
15 |
37 |
4.2 |
φ900×2100 |
1.1 |
1.5 |
1.9 |
2.3 |
1-1.9 |
2-3.7 |
2.3-4.3 |
18.5 |
37 |
4.9 |
φ900×3000 |
1.6 |
2.2 |
2.8 |
3.3 |
1.4-2.7 |
2.9-5.4 |
3.3-6.2 |
30 |
37 |
7.6 |
φ1200×2400 |
2.4 |
3.3 |
4.1 |
4.9 |
2.2-4 |
4.3-8 |
5-9.2 |
30 |
35 |
8.7 |
φ1200×3000 |
3 |
4.1 |
5.2 |
6.2 |
2.7-5 |
5.4-10 |
6.2-12 |
37 |
35 |
13 |
φ1200×4500 |
4.4 |
6.2 |
7.7 |
9.3 |
4-7.5 |
8.1-15 |
9.3-17 |
55 |
35 |
14 |
φ1500×3000 |
4.8 |
6.6 |
8.3 |
10 |
4.3-8 |
8.6-16 |
10--19 |
75 |
29 |
15 |
φ1500×4500 |
7.1 |
10 |
12 |
15 |
6.5-12 |
13-24 |
15-28 |
110 |
29 |
16 |
φ1500×5700 |
9 |
13 |
16 |
19 |
8.2-15 |
16-31 |
19-35 |
130 |
29 |
24 |
φ1830×3000 |
7.1 |
10 |
12 |
15 |
6.4-12 |
13-24 |
15-28 |
130 |
24.5 |
28 |
φ1830×4500 |
10.6 |
15 |
18 |
22 |
10--18 |
19-36 |
22-41 |
155 |
24.5 |
32 |
φ1830×6500 |
15.3 |
21 |
27 |
32 |
14-26 |
28-52 |
32-60 |
210 |
24 |
35 |
φ1830×7000 |
16.5 |
23 |
29 |
34 |
15-28 |
30-56 |
35-64 |
245 |
24 |
37 |
φ2100×3000 |
9.4 |
13 |
16 |
20 |
9--16 |
17-32 |
20-37 |
155 |
23.5 |
42 |
Producing Process of Ball Mill Classifier:
Delivery Site of Ball Mill Classifier:
Work Site of Ball Mill Classifier:
