GJYXFCH self-supporting two parallel FRP strength member outdoor FTTH fiber optic cable
Product Description

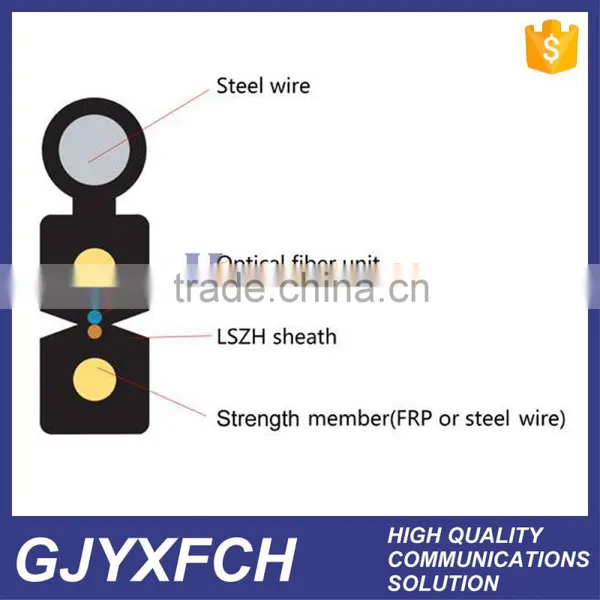

The FTTH cable 's optical fiber unit is positioned in the centre , Single colored fiber, non-metallic or steel wire strength member , self-supporting metallic strength member, black flame-retardant materials for sheath
Features:
- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
- A steel wire is applied as the additional strength member
- Suitable for dropping in residential buildings, rat proof function, reliable and stable quality
- Adopt fiber with small bending radius (G.657), offering good bending resistance;
- Adopt all-dry structure and fiber with small bending radius, offering good bending resistance;
- Safe and reliable for installation;
- Easy cable stripping without need of tools, easy cable fixation and low cost of installation;
- Suitable for termination at the field or factory pre-connectorized
- low smoke, zero halogen and flame retardant sheath
- Fiber Type: G652D ,50/125, 62.5/125 ,G657A ,G657A2 ,OM3-150 ,OM3-300 ,OM4
- Jacket material: PVC, LSZH
Application:
Suitable for aerial dropping in separate residential buildings, stable and reliable performance, fitting for cable installation with long span
FTTH fiber optic cable - GJYXFCH
Characteristics
Technical Parameters:
Optical Characteristics: | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
||||||||||||||||||||||||||||||||||||||||||||||||
A1b:62.5/125 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Singlemode |
G.652(A,B,C) |
B1.1:Conventional fiber |
||||||||||||||||||||||||||||||||||||||||||||||||||
G.652D |
B2: Zero dispersion shifted |
|||||||||||||||||||||||||||||||||||||||||||||||||||
G.655 |
B1.2 :Cut-off wavelength shifted |
|||||||||||||||||||||||||||||||||||||||||||||||||||
G.657(A1,A2 ,B3) |
B4: Main technical data for positive |
|||||||||||||||||||||||||||||||||||||||||||||||||||
We produce and test cable comply with following standard:
Mechanical Performance | |
Max Tension Performance |
IEC 60794–1-2-E |
Max. Operation Tension |
IEC 60794–1-2-E1 |
Crush Test |
IEC 6079 –1-2-E3 |
Impact Test |
IEC 60794–1-2-E4 |
Repeated Bending |
IEC 60794–1-2-E6 |
Torsion Test |
IEC 60794–1-2-E7 |
Cable bend |
IEC 60794–1-2-E11A |
Attenuation Coefficient |
ITU-T G.652 |
Structural Test |
IEC-60793-1-20 |
Environmental Performance | |
Temperature Cycling |
IEC 60794–1-2-F1 |
Water Penetration |
IEC 60794–1–2-F5B |
Filing Compound Flow |
IEC 60794-1-E14 |
Our Services
- We are the one of biggest manufacture of fiber optic cable in China and has more than 25 years manufacturing and selling experience.
- We accept OEM.ODM.The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to ur requirment and description;
- Please send us inquiry for more products info and we will give you feedback in 2 hours.
