Direct buried central tube fiber optical cable GYTY53 G652D
An optical fiber cable is a cable containing one or more optical fibers that are used to carry light. The optical fiber elements are typically individually coated with plastic layers and contained in a protective tube suitable for the environment where the cable will be deployed. Different types of cable are used for different applications, for example long distance telecommunication, or providing a high-speed data connection between different parts of a building.
A fiber-optic system is similar to the copper wire system that fiber-optics is replacing. The difference is that fiber-optics use light pulses to transmit information down fiber lines instead of using electronic pulses to transmit information down copper lines. Looking at the components in a fiber-optic chain will give a better understanding of how the system works in conjunction with wire based systems.
Structure:
- Loose tube
- Metallic central reinforcing element
- Filling compound
- PE inner sheath
- Corrugated steel tape coated with PE outer sheath
Features:
- Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance
- Corrugated steel tape armored, enhance the cable resistance ability to lateral pressure
- Water blocking material Ointment and waterproof tape prevent the cable from longitudinal water penetration
- Double jacket design enhances the performance of crushing, shot-gun resistance and water blocking
- Provide multi-protection to the cable and prevent the mechanical damage and rodent gnawing.
Fiber count(core) |
2-36 |
38-40 |
42-48 |
50-60 |
62-72 |
74-84 |
86-96 |
98-108 |
110-120 |
122-132 |
134-144 |
Outer diameter(mm) |
12.1 |
12.3 |
13.2 |
13.6 |
14.4 |
13.8 |
14.8 |
15.6 |
16.6 |
17.4 |
18.1 |
Cable weigh(kg/km) |
145 |
150 |
170 |
190 |
210 |
200 |
215 |
235 |
255 |
280 |
300 |
Minimum tensile strength(N) |
Short-term: 3000 |
||||||||||
Long-term: 1000 | |||||||||||
Minimum crushing(N/100mm) |
Short-term: 3000 |
||||||||||
Long-term: 1000 | |||||||||||
Bending radius |
Static:12.5 times of diameter Dynamic:25 times of diameter |
||||||||||
Standard length for delivery(km) |
2~6 |
||||||||||
Temperature range(0C) |
-40~+60 |
||||||||||

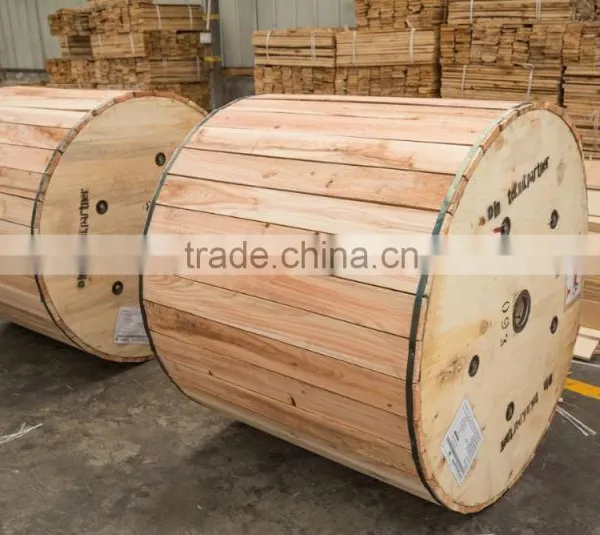

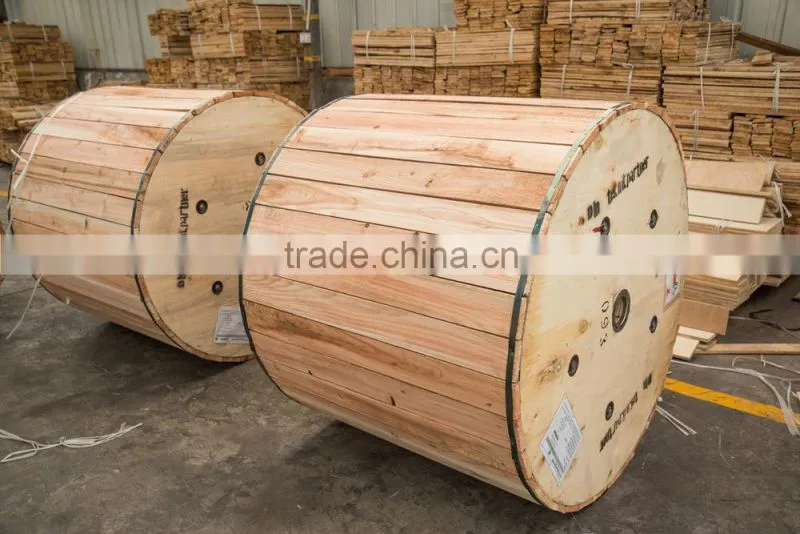

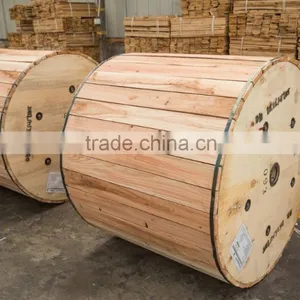

Packaging Detail: Wooden drum or iron wooden drum
Delivery Detail: 30 days after confirmation of order and payment
In 1995, first test run of Huiyuan ADSS cable put into operation in Sichuan power grid. After nearly 20 years test, the line still runs safely, which creates the longest run record of domestic ADSS cable.
In 1996, the first domestic ADSS cable with high-voltage electrical corrosion sheath ran safely on the 220KV line till so far.
After years of development, Huiyuan has become a special optical cable provider in the western region and an influential company in China. Its featured products have four series, including power fiber optic cable (ADSS, OPGW, OPPC); micro air blown cable, fiber optic unit and micro air blown cable tube; various types of sensing cable and detection cable; Lp user oriented fiber and optical fiber ribbon.
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW and ADSS are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
For any questions, please feel free to contact with Roy.
Email: huiyuan_roy(at)
