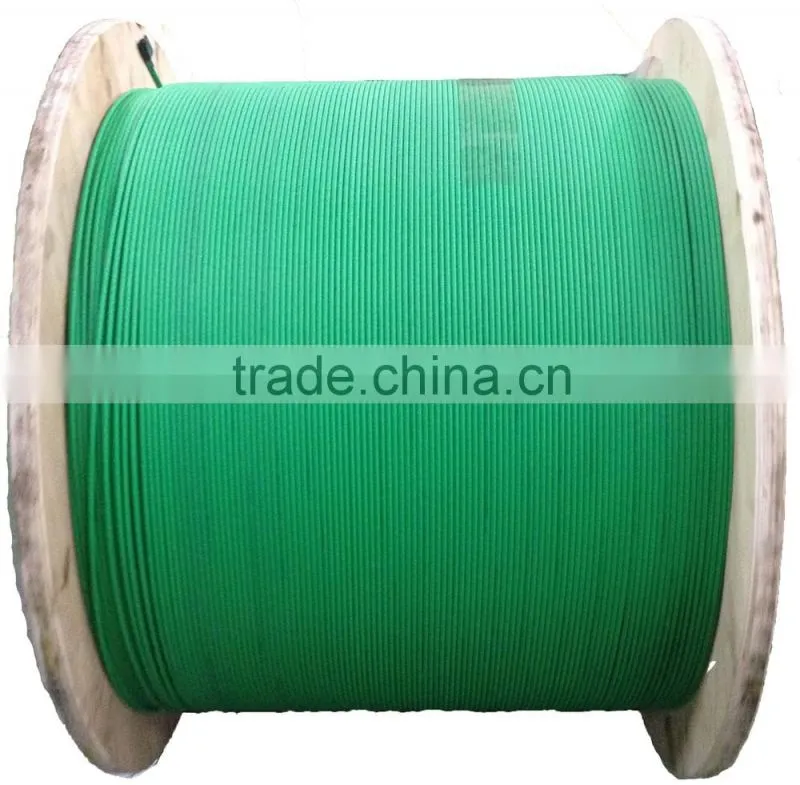

China manufacturer Micro central loose tube optical fiber cable 2 core
- 0 per Month
- T/T L/C D/P D/A PayPal
Product Details
| Place of Origin: | Sichuan, China | Brand Name: | Huiyuan | Model Number: | Micro uni-tube blown cable (GCYFXTY ) |
| Type: | Cat 1 | Number of Conductors: | 2 |
Product Description

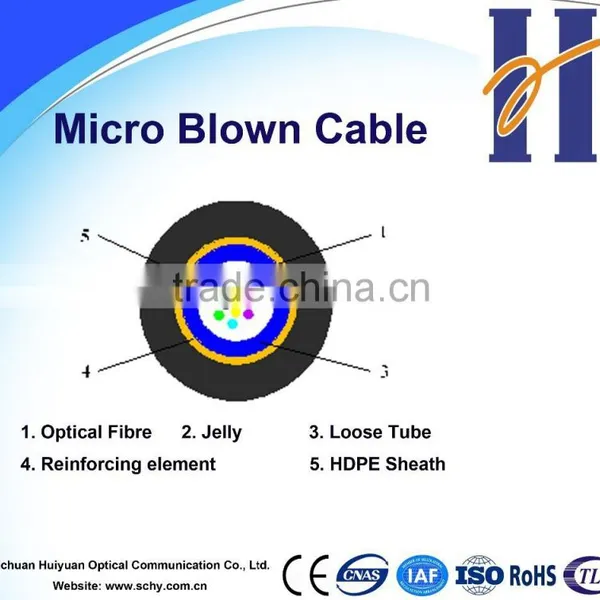

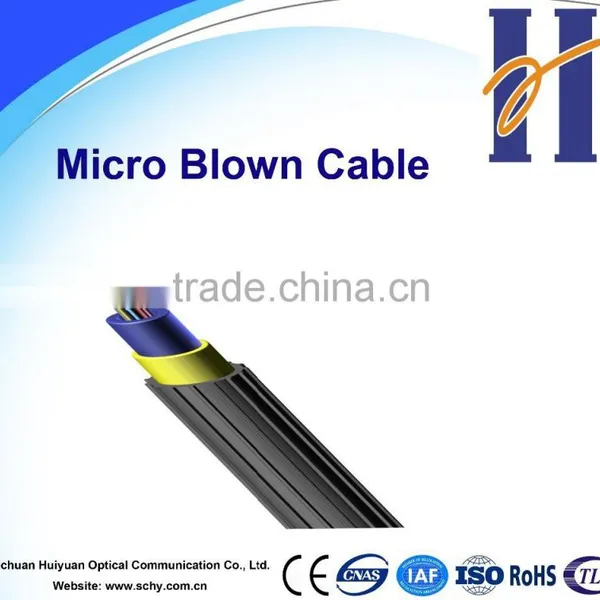

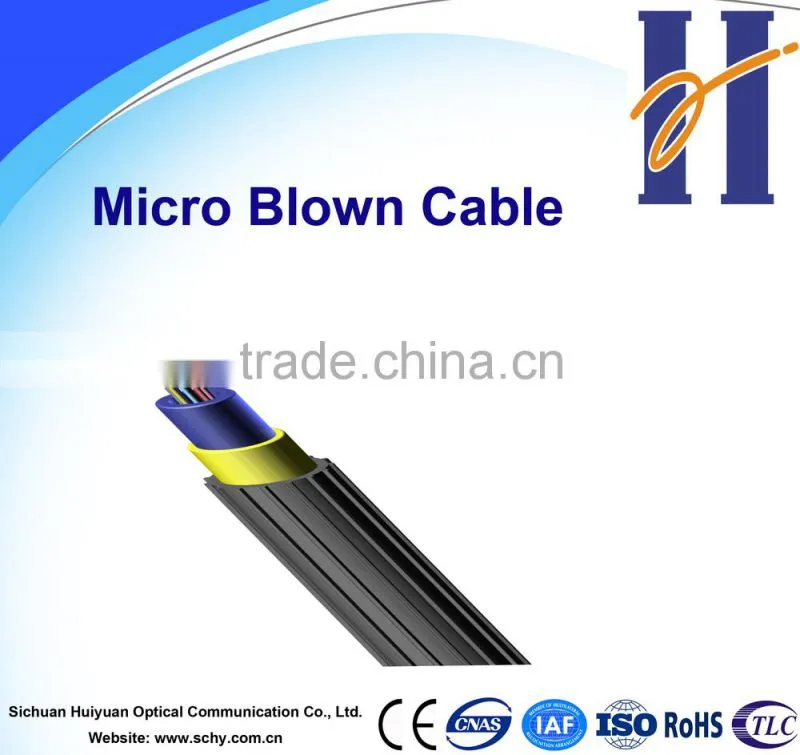

Micro Uni-tube Blown Cable
Application
The micro uni-tube blown cable is suitable for access network or FTTX applications.
Features and benefits
Special complex material loose tube, reduce the shrink of tube in cold temperature.
Accurate fibre length balance, stable mechanical and temperature performance.
Particular technique control, prevent sheath form crinkling during installation.
HDPE sheath, enhancing the blowing performance.
Standards
Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
Optical fibre ….....ITU-T G.652D, IEC 60794-2-50
Optical cable ..….IEC 60794-5, IEC 60794-1-2
Technical index
Cable Type | Central Loose Tube Cable | |
Fibre Count | 2~12 | 14~24 |
Thickness of HDPE sheath | Nominal value:0.50mm, Average value:0.45mm, Min. value:0.40mm | |
Nominal Overall Diameter | 4.0±0.1mm | 4.5±0.1mm |
Weight | 10.0 kg/km | 14.0 kg/km |
Max. Tensile Strength | 120N | 150N |
Max. Crushing force | 1000N/100mm | |
Min. Bending radius -Static | 10 outer Φ | |
Min. Bending radius -Dynamic | 20 outer Φ | |
Cable Fibre Attenuation (G.652D) | 0.35dB/km max @1310nm 0.22dB/km max @1550nm | |
Temperature | Storage -40~+60℃; Installation -10~+40℃;Operation -30~+50℃ | |
Cable service life (estimate value) | 25 years | |

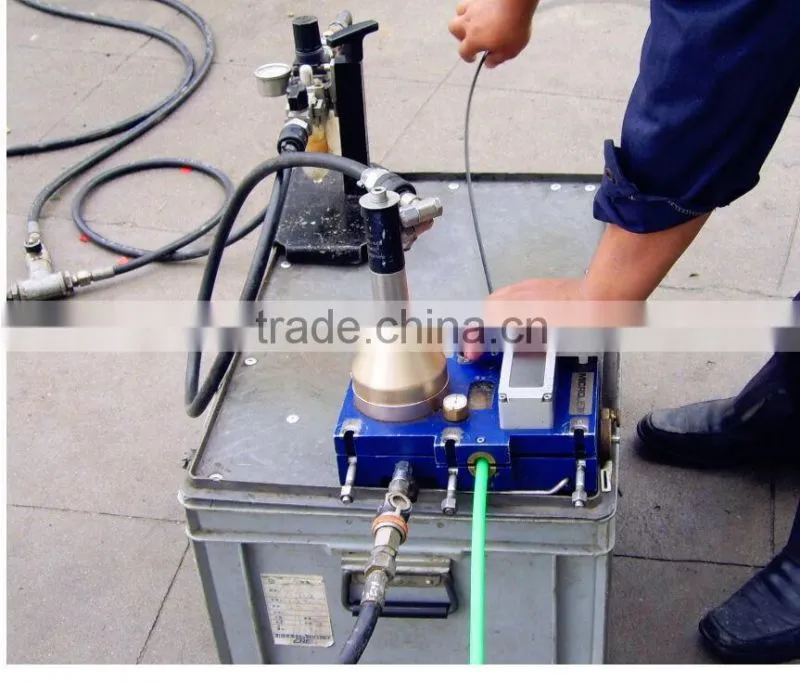

Blowing performance
Blowing Tool | Suitable to be blown in microducts | ||
PLUMETTAZ: PRM-196 , PR140 etc. | Fibre Count | Duct type 5.5/7.0mm | Duct type 8.0/10.0mm |
2~12 fibres | 1500m | 2500m | |
14~24 fibres | 1200m | 2200m | |

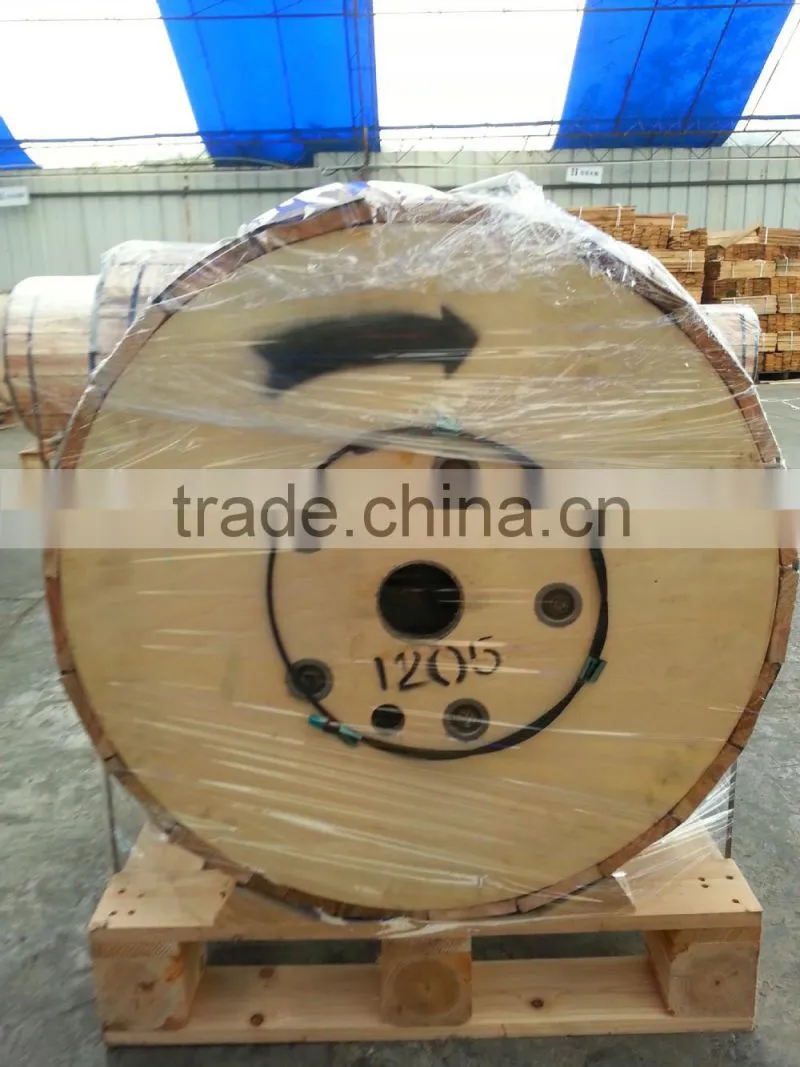

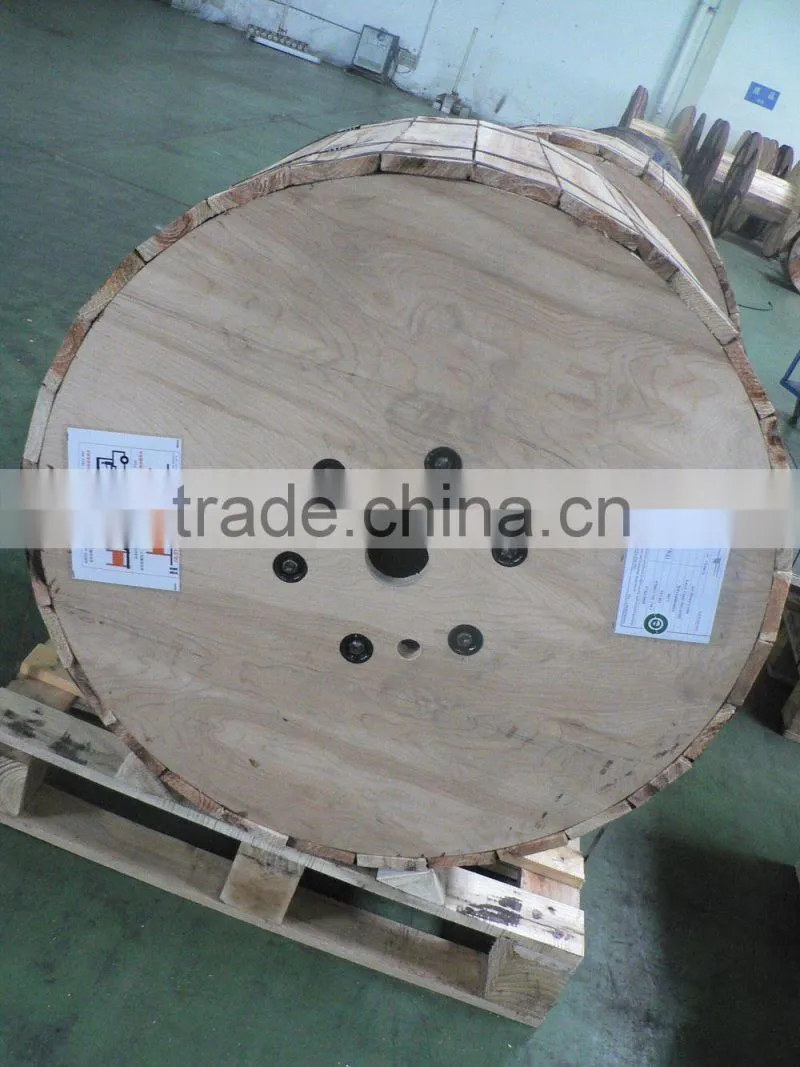

Wooden or plywood drums with protection
Delivery Lengths
Standard delivery lengths are 2km, 4km, 6km,8km with a tolerance of -1%~+3%.
Fibre Count | Drum Length (m) | Drum Size Φ×W (mm) | Packing Size L×W×H (mm) |
2~12 fibres | 2000 | Φ670×450 | 710×450×875 |
4000 | Φ690×570 | 730×570×895 | |
6000 | Φ760×570 | 800×570×965 | |
8000 | Φ800×570 | 840×570×1005 | |
| |||
14~24 fibres | 2000 | Φ670×570 | 710×570×875 |
4000 | Φ750×570 | 790×570×955 | |
6000 | Φ800×570 | 840×570×1005 | |
8000 | Φ800×730 | 840×730×1005 | |

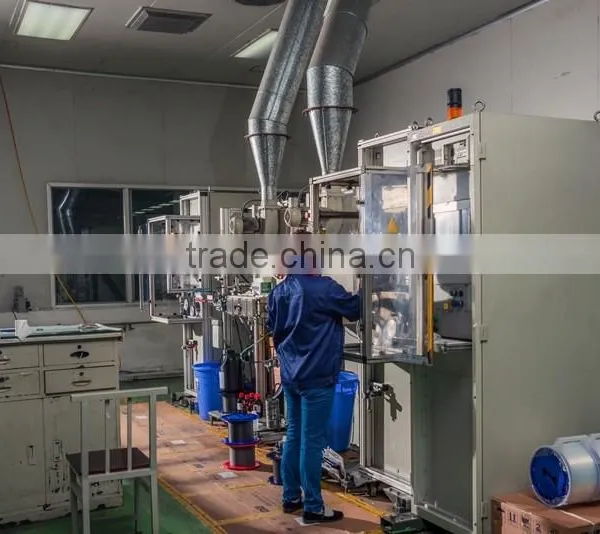

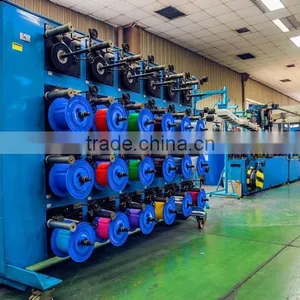

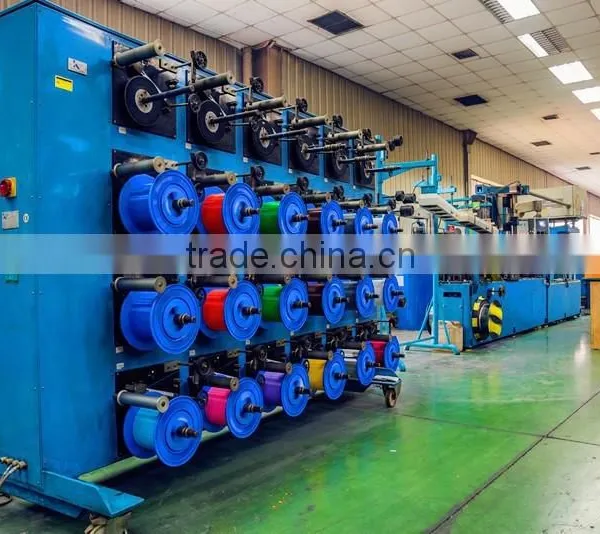

Comfortable Working Environment

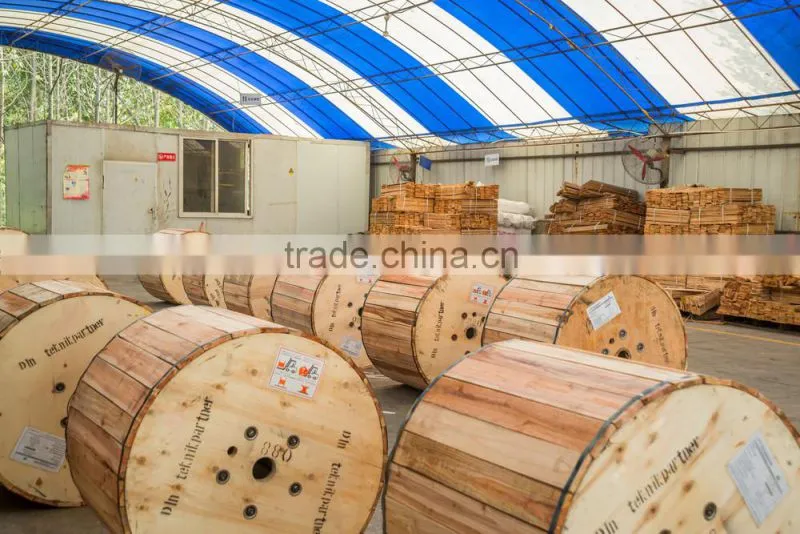

Packing
Why choose us?
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW and ADSS are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
