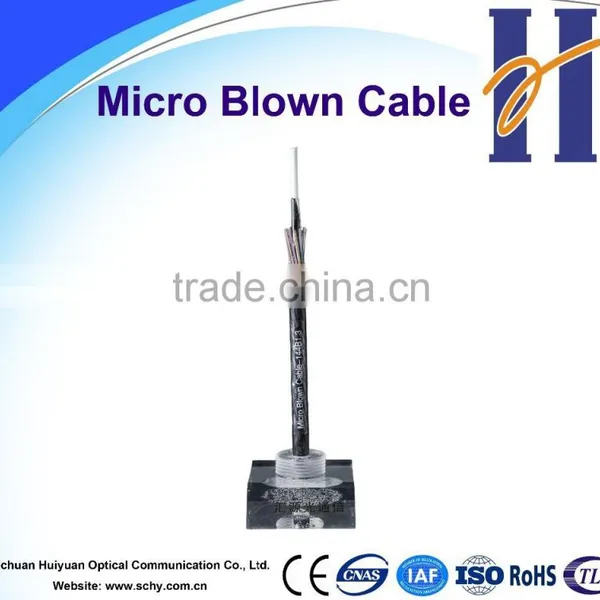

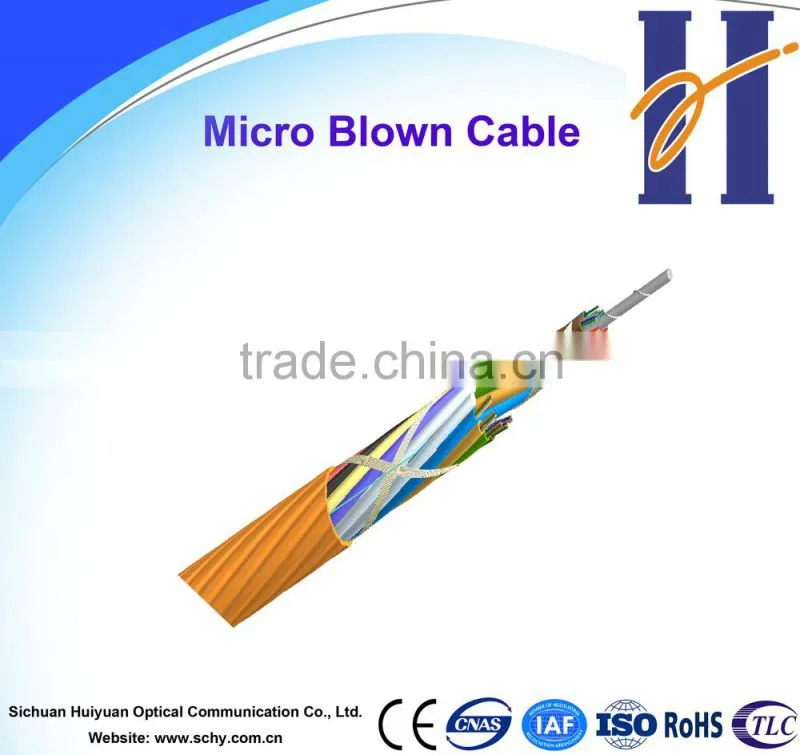

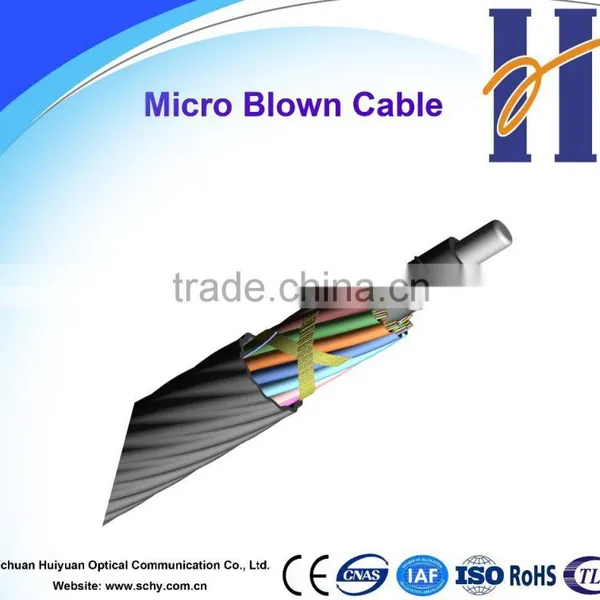

Air Blowing Cable Optic Fiber Cable
Features and Benefits
Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental.
Structure Innovation in sheath, enhancing the blowing performance.
Standards
Optical fibre …..ITU-T G.652D, IEC 60794-2-50
Optical cable ….IEC 60794-5, IEC 60794-1-2
Technical Index
Cable Type |
Layer Cable |
||||||||
Fibre Count |
24 |
36 |
48 |
60 |
72 |
96 |
144 (A) |
144 (B) |
|
Number of loose tube |
2 |
3 |
4 |
5 |
6 |
8 |
12 |
6 |
|
Number of filled string |
4 |
3 |
2 |
1 |
0 |
0 |
0 |
0 |
|
Number of fiber/tube |
12 |
24 |
|||||||
Water blocking method |
FRP or PE Lining |
Water Blocking yarn |
|||||||
Cable Core |
Water Blocking Kevlar |
||||||||
Thickness of HDPE sheath |
Nominal: 0.50mm, Average: 0.45mm, Minimum: 0.40mm |
||||||||
Overall Diameter |
5.6±0.2 mm |
6.4±0.2 mm |
8.2±0.2 mm |
8.0±0.2 mm |
|||||
Weight |
27 kg/km |
40 kg/km |
65 kg/km |
55 kg/km |
|||||
Max. Tensile Strength |
500N |
1000N |
1200N |
1000N |
|||||
Max. Crushing Resistance |
800N/100mm |
||||||||
Min. Bending radius -Static |
12 outer Φ |
||||||||
Min. Bending radius -Dynamic |
20 outer Φ |
||||||||
Cable Fiber Attenuation (G.652D) |
0.35dB/km max @1310nm 0.22dB/km max @1550nm |
||||||||
Temperature range |
Storage -40~+70℃; Installation -10~+40℃;Operation -40~+70℃ |
||||||||
Blowing performance:
Blowing Tool |
Typical blowing length |
||
PLUMETTAZ:PR-140, MiniJet-400 etc. |
Fiber Count |
Duct type 8.0/10.0mm |
Duct type 10.0/12.0mm |
24~72 Fibers |
1800m |
2300m |
|
96 Fibers |
1800m |
2300m |
|
144 (A) fibers |
/ |
1200m |
|
144 (B) fibers |
/ |
1500m |
|
Standard delivery lengths are 2km, 4km, 6km, 8km with a tolerance of -1%~+3%.
Fibre Count |
Drum Length (m) |
Drum Size Φ×W (mm) |
Packing Size H×L×W (mm) |
24~72 Fibers |
2000 |
Φ620×450 |
660×450×825 |
4000 |
Φ710×570 |
915×750×570 |
|
6000 |
Φ800×570 |
1005×840×570 |
|
8000 |
Φ840×730 |
1045×880×730 |
|
| |||
96 Fibers |
2000 |
Φ620×570 |
660×570×825 |
4000 |
Φ800×570 |
1005×840×570 |
|
6000 |
Φ840×730 |
1045×880×730 |
|
8000 |
Φ940×730 |
1145×980×730 |
|
| |||
144 Fibers |
2000 |
Φ800×570 |
840×570×1005 |
4000 |
Φ940×730 |
1125×980×730 |
|
6000 |
Φ1050×730 |
1265×1100×730 |
|
Wooden or plywood drums with protection
Comfortable Working Environment
Packing
Why choose us?
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW and ADSS are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
