chinese oiml weight indicator (CHB)
digital oimi weight indicator Function
1) Measure accuracy is 0.05 class;controlling rate is 10times per sencond
2) Accomplish the net weight,gross weight, peak weight and valley weight detecting and switch.
3) 6 alarming way for upper/lower limit, deviation and range.
4) Auto zero tracking,Juading stability.
5) Alarming Status, Unit Indicator for quantity.
digital oimi weight indicator Description
Model |
Technical specifications |
|
CHB |
Measure accuracy is 0.05 class; controlling rate is 10times per sencond |
|
External Dimension |
AH |
160×80×125mm Perforate dimension:152×76 |
|
CH |
96×48×82mm Perforate dimension:92×45 |
Panel specifications |
5 Led, -19999~ 45000 |
|
Range of input signal |
Ratio measurement. for 4 line load cell. 0.8~ 2.5mv/v |
|
Alarm |
2 relay outputs, 250V AC/3A, Resistive load |
|
External power source |
10v±2%, 30ppm,150mA |
|
Power Specifications |
100~240V AC 50/60 Hz |
|

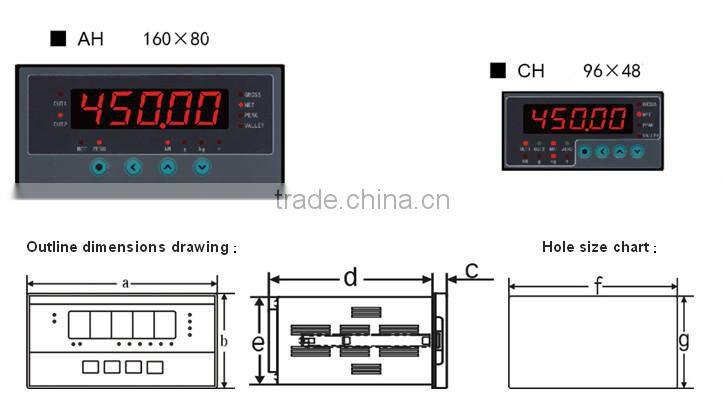

oiml weight indicator Appearance:
specification |
a(m) |
b(mm) |
c(mm) |
d(mm) |
e(mm) |
f(mm) |
g(mm) |
160×80 |
160 |
80 |
10 |
115 |
75 |
152-1 |
76-1 |
96×48 |
96 |
48 |
12 |
100 |
43 |
92-0.5 |
45-0.5 |
4 Wiring diagram

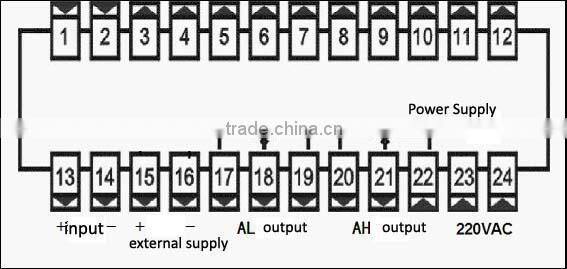

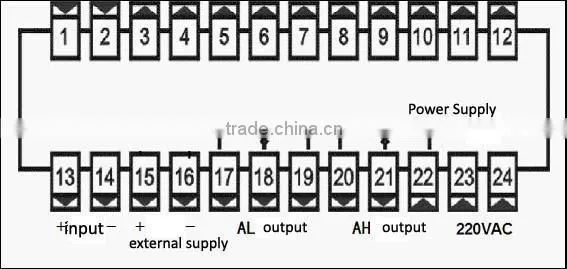

AH:160×80 size

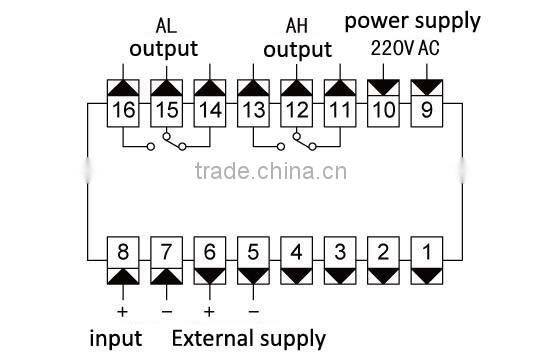

CH:96×48 size
Package and Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
