weighing Belt controller OIML Approved(sw3000B)
Belt controlle Basic performance
1)Apply to Continuous weighing and feeding equipment Inspection and control, such as Belt scales, cutters scale, impact flowmeters and so on
2) Load sensor input, load cell power source is 10v/200mA,6-wire or 4-wire connection, measure speed is 100times per second, Measure accuracy is 0.05 class.
3) Receive DC current signal, Measure accuracy is 0.2 class.
4) 2 4~20mAIsolated outputs,Apply to feeding speed control and instantaneous flow rate output.accuracy is 0.2 class.
5) 6 oc output, DC30V/100mA, For Belt start, instrument ready, running, cumulative impulse, volume complete, alarm and related features
6) 1 Speed sensor input, Connect with Proximity switches, photoelectric switches and incremental rotary encoder.load cell power supply is 12V.
7) 5 swith measure output, Realize start, alram reset and set options functions
8) Can choose another Communications interface, except Standard Communications interface. The computer can work with other smart device.
9) Full metal jacket, removable terminal blocks. Easy installation and wiring
10) 160×160 high resolution, 1 colour led screen.Chinese character display with help message.Easy to operate and set up.
Belt controller Description

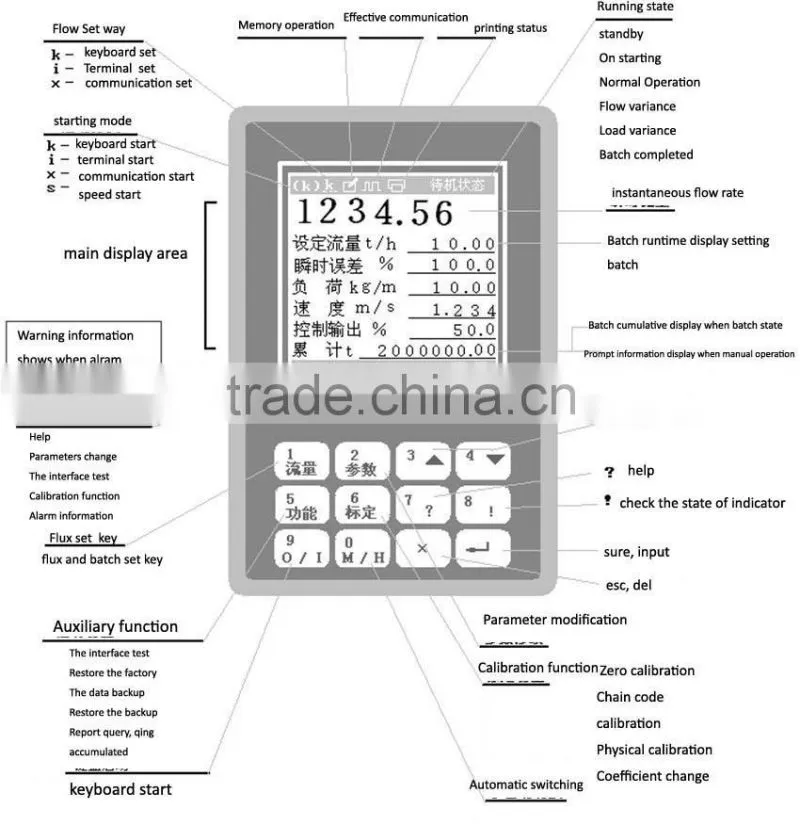

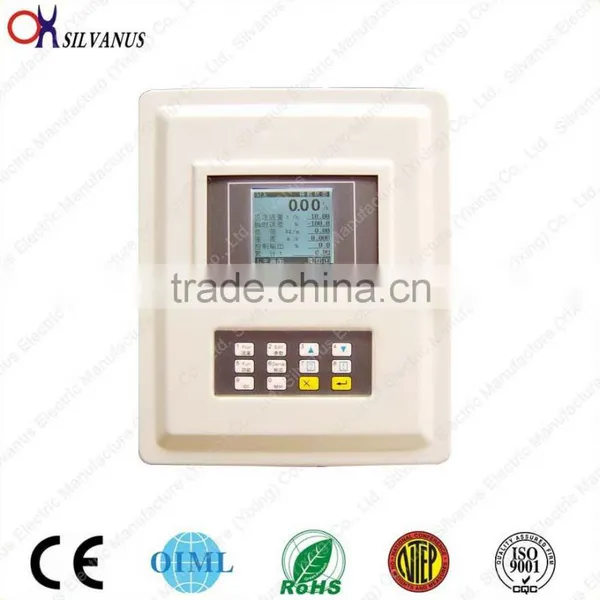

Belt controller Appearance:
Package and Delivery:
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
| Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
