load cell Current board sw321
Features:
1.Product name:2~15mA Three wire system current loop template
2.Product No.:SW-321A
3.Function:The sensor voltage signal is Amplified the voltage singal of load cell and transform
Current loop signal transmission in long distance
4.Size:L×W×H = 22.5×20.5×9mm
5.Load Cell Technical Parameter:
1)Input resistance=380Ω;Output resistance=350Ω;
2)Load cell zero input range:-0.1~0.1 mV/V.
3)Load cell sensitivity range:1.8~2.2 mV/V.
6. working condition after connecting load cells:
1)Working power suplly voltage:12V DC;
2)Current loop load resistance:≤300 Ω;
3)when load cell is no-load,Output terminal is is 2±0.05mA current
4)when load cell is full-load,Output terminal is 15±0.05mA current;
5) linear error: ≤0.2%; resultant error:≤0.5% @20℃.
6)temperature property:≤0.2%/10℃.
7) operating temperature range:-15℃~+50℃.
8) storage temperature range:-40℃~+90℃.
Specification:
Packaging & Delivery
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:

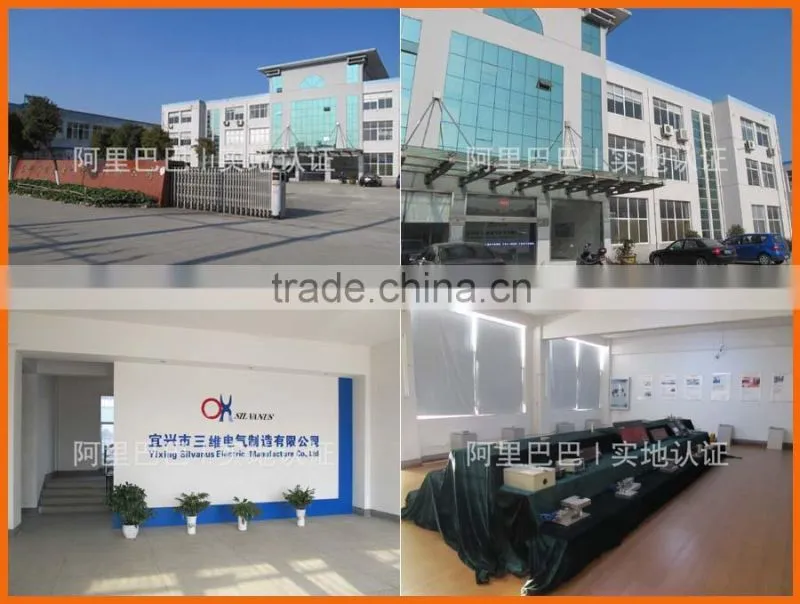

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.

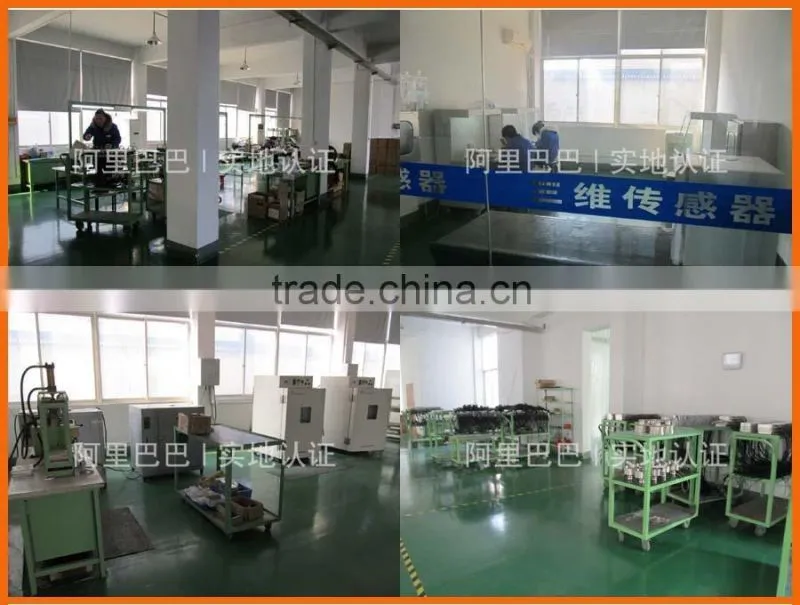

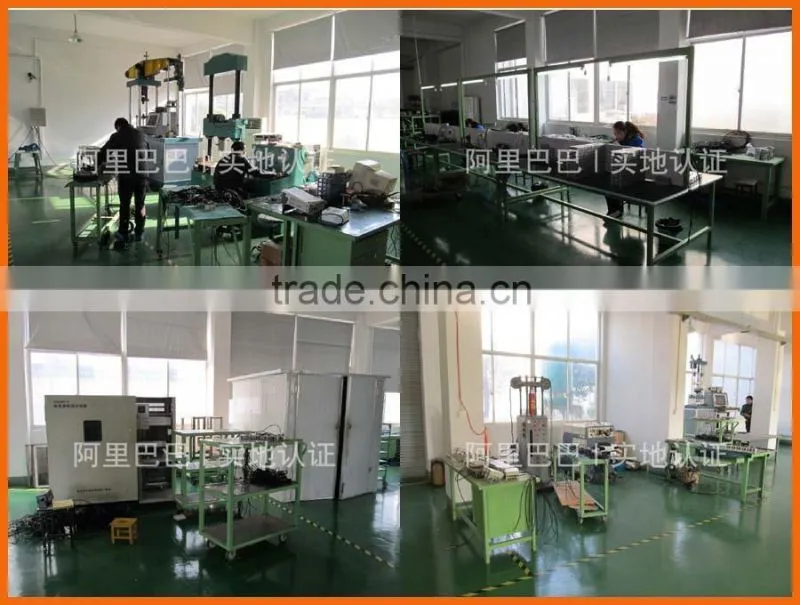

On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
LETTER OF PATENT:
Transportation |
Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
