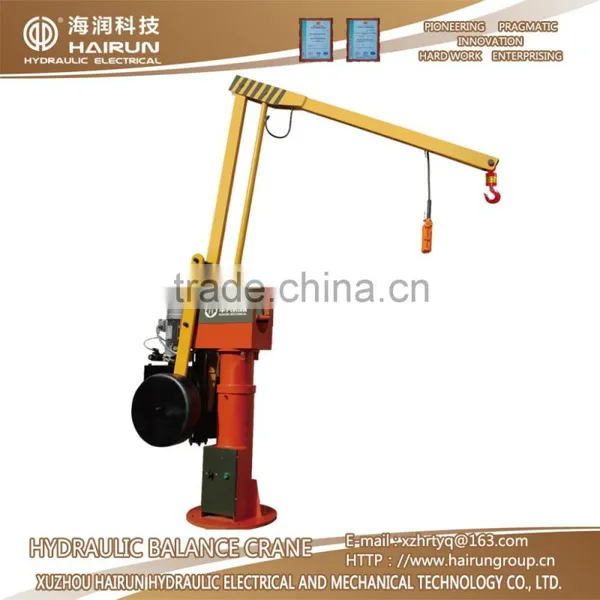

Hai Run YPD series hydraulic balance suspended:
YPD series hydraulic balance suspended, using balance principle and the principle of the lever system pantograph, the original
traditional mechanical lifting mechanism for improved hydraulic lifting mechanism, the use of the hydraulic cylinder piston rod,
the next movement of the crane, thevolume small, light weight, compact novel structure, convenient operation, convenient, accurate
positioning, infinitely variable, the use of safe, reliable, easy to maintain. Set the safety valve in the hydraulic system, have a security
role in the overload situation.
Hydraulic drive, with good cushioning effect, use relatively stable. Hanging in the balance weights hanging hook, hand on, you can freely
in the plane of movement of the lifting height, lifting pushbutton control switch, mounted on the hook at the motor and gear by making heavy lifting.
The operator hand leaning on hanging pieces, just use a few kilograms of force, can arbitrarily make tens to thousand kilograms of heavy objects
up and down, front and rear, threedimensional horizontal rotary light and comfortable, and the run accurate, reliable, production lines, machine tools
and other artifacts on the device, under ideal material handling means.
Widely used in petroleum, chemical, textile, warehousing, the whole processing plant, machinery production workshop, household appliances
production line, automobile manufacturing production lines and related industries and other industries, is the safe production, improve efficiency,
reduce costs essential equipment.
Its main features are as follows:
1, Intuitive operation. Jib crane is based on partial equilibrium neutral equilibrium principles of design, and heavy lifting will not destroy this equilibrium state,
when the operator lifting the object to the desired height, you can hand in a horizontal plane escorted random Mobile. When moving only
a small rolling friction can be overcome.
2, Smooth operation. Since the boom using its relatively rigid rectangular steel tube, not objects to be lifted during movement as single-beam
crane, electric hoist as easy swing.
3, Simple operation. The operator simply hand on the object, press the operation switch, push or pull objects can make objects required by the operator
to move in three-dimensional space orientation. And can according to the operator's wishes and hand feel, quick control chronic objects.
4, Easy operation. According to the model series, various balance suspended lifting tens of kilograms, respectively, and even a few pounds of weight,
the operator simply resorted to 2-5 kilograms of force will be able to make the heavy lifting to move freely.
5, Good security. YPD series hydraulic balance suspended, since the hydraulic system uses a check valve and safety relief valve (regulator), Therefore
in the case of a sudden power failure, can remain in situ heavy lifting, and will not fall to ensure that the operation When security.
6, Can add a variety of motorized spreader such as magnetic chuck and gripper mechanism, w hich lifting efficiency.
7, The structure is simple, inexpensive, use, and maintenance.
| Project | YPD260 | YPD500 | YPD800 | Remarks | ||||
| Maximum lifting weight | 260kg | 500kg | 800kg | |||||
| Lifting speed | 8-10m/min | 10-12m/min | 10-12m/min | Adjus table |
||||
| Lifting height | 2000mm | 2000mm | 2500mm | |||||
| Maximum horizontal range |
2300mm | 2400mm | 3000mm | |||||
| Turning angle | 350° | 350° | 350° | |||||
| Motor type | YS90L2 | YS90L2 | YS90L2 | |||||
| Motor rated speed | 2850r/min | 2800r/min | 2800r/min | |||||
| Motor power | 2kw | 3kw | 3kw | |||||
| Anchor screw size | M22×450 | M24×450 | M24×450 | |||||
| The number of anchor bolts |
5 | 5 | 6 | |||||
| Safety valve set pressure |
16Mpa | 16Mpa | 20Mpa | |||||
| Whole machine weight |
335kg | 410kg | 650kg | |||||
| Hydraulic oil and system cleanliness |
Not less than GB/T14039-93 19/16level or NAS 1638 10level |
|||||||
About HAIRUN :
Xuzhou Hydraulic Hairun Electric Co., Ltd., covers an area of about 5,0000 square meters, the design department
has five strong team, production line workers have 50 people, in various parts of the country there are four service team,
each team is made ten individuals, the quality of survival is the company has been pursuing the idea, and after-sales team 24
hours by the mobility to more quickly and efficiently solve problems to customers.
Xuzhou HaiRun hydraulicElectricaland mechanicalTechnology Co., Ltd. located in China's construction machinery of all - Xuzhou,
specializes in rotary drilling rig supporting research and development, design, manufacturing and marketing. With the region's strong research,
human resources, relying on its own starting point, high-tech innovation capacity in the first research and development, design and production
of rotary drilling rigs, diaphragm wall grab the lead with a lift device (rotary union), horizontal directional Drilling with a splitter.
The company is specialized in the production of rotary drilling rig with drill pipe, include references devices (rotary union), auger cutter, bucket teeth,
and a continuous wall grab the lead with a lift device.
Hairun people adhering to the "pioneering, truth-seeking, innovation, hard work, progressive" spirit, followed by domestic and foreign market demand,
has passed the ISO9001: 2008 quality system certification, and a number of national patents. Through technology brand, relying on the development of
scientific and technological progress, complete testing equipment and advanced manufacturing systems, the success of becoming Xugong Group, Beijing CSR Times,
Shantui Group, Hunan Hengtian 1995 and ORSUS special, Hebei new drilling, Henan include references to the three of the other exclusive supplier.
Rotary drilling rig drill pipe, include references are Sany, Zhengzhou Yutong, Sunward, in conjunction Branch, Fukuda Revo, Kawashima machinery, Zhejiang Zhenzhong,
Tianjin Meet other enterprises highly recommended brand. Continuous wall grab the lead with a mention has been successfully configured for standard Shanghai Jintai,
XCMG, Zoomlion, Beijing CSR Times and other enterprises. The company with excellent products with the host exported all over the world, in the domestic construction
site is unique, favored by the users.
Professional manufacturing level to win customers and host manufacturers of praise, good quality for the customer to create a huge economic benefits.
Xuzhou HaiRun hydraulicElectricaland mechanicalTechnology Co., Ltd.will, as always, adhere to: technology and development, quality of survival of quality,
honest to the letter-oriented, excellent win business philosophy, sincere mutual communication services indefinitely principle of service, will continue to create industry-leading high-quality products, better service to customers, and is committed Piling industry colleagues to join hands in creating a better future.
