HaiRun HOISTING SWIVEL ELEVATOR parameter:
| Model | A1 | A2 | B1 | B2 | D1 | D2 | D3 | L1 | L2 | L3 | L4 | Bearing Number |
Diameter of drill core | Rated tractionKN |
Drilling torque KN.m |
| HJ01 | 55 | 120 | 50 | 120 | Φ55 | Φ55 | Φ170 | 500 | 620 | 80 | 80 | 4 | ≥159 | 260KN | 180-230KN.m |
| HJ02 | 55 | 120 | 50 | 120 | Φ55 | Φ55 | Φ170 | 530 | 650 | 80 | 80 | 5 | ≥159 | 320KN | 180-260KN.m |
| HJ03 | 50 | 110 | 50 | 110 | Φ50 | Φ50 | Φ150 | 480 | 600 | 80 | 80 | 4 | ≥140 | 190KN | 120-160KN.m |
| HJ04 | 60 | 140 | 65 | 140 | Φ60 | Φ60 | Φ200 | 590 | 720 | 90 | 90 | 5 | ≥203 | 460KN | 280-360KN.m |
| HJ05 | 40 | 90 | 40 | 90 | Φ40 | Φ40 | Φ120 | 440 | 540 | 60 | 60 | 4 | ≥100 | 125KN | 60-120KN.m |
| HJ06 | 80 | 156 | 70 | 156 | Φ80 | Φ70 | Φ210 | 685 | 845 | 110 | 90 | 6 | ≥203 | 610KN | 300-420KN.m |
| HJ07 | 80 | 160 | 80 | 160 | Φ80 | Φ70 | Φ210 | 685 | 845 | 110 | 90 | 6 | ≥203 | 610KN | 300-460KN.m |
| HJ08 | 80 | 180 | 80 | 180 | Φ80 | Φ80 | Φ244 | 750 | 930 | 120 | 100 | 5 | ≥245 | 690KN | 360-550KN.m |

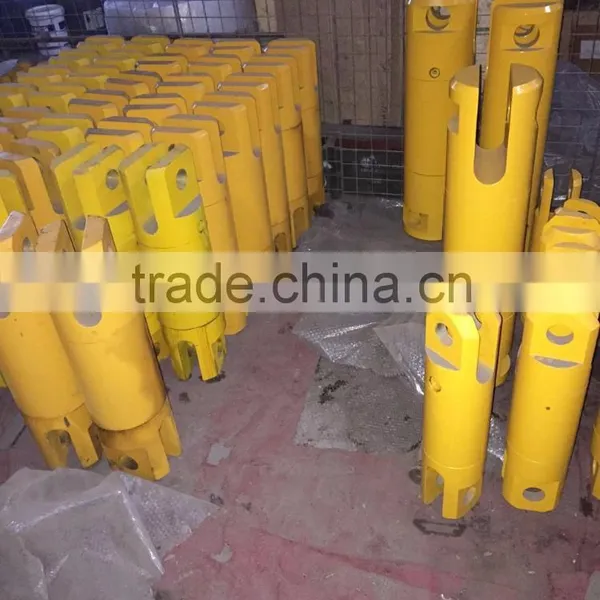

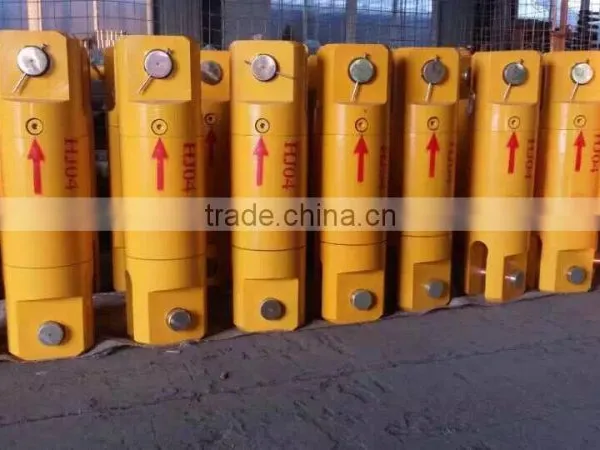

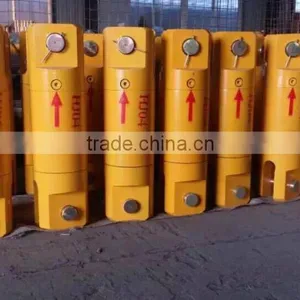

HaiRun Hoisting Swivel Elevator:

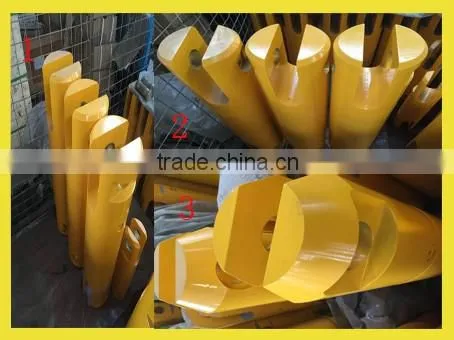

1,2: Due to the size and safety of use of standard models, in China, Xuzhou Hairun only can manufacture this type,
and appearance modeling above security technology we have design patents in China.
3: Unique connector design supporting XCMG Rotary Drilling Rig 460 to more effectively increase the security connectivity and robustness.

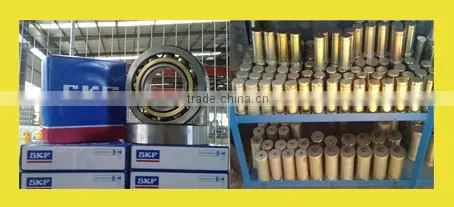

Bearings, we use SKF bearings to better ensure the stability and usability tension.
Pin itself is raw whole processing, not splicing process, after heat treatment increases strength.
The company is based on domestic rotary drilling rig construction conditions, the characteristics of the joint foreign
products, design, manufacturing, with high performance, high efficiency, high reliability, etc:
Hoisting swivel elevator for the metal structure, the upper and lower joints, intermediates, etc. all the use of high-quality alloy steel, after fine processing, and strict heat treatment, so that its comprehensive mechanical properties,
super wear-resistant, long service life.
Internal bearing all the use of SKF bearings, excellent performance, long life.
And a sealing element are all imported, corrosion resistance, not easy to aging, ensure the bearing oil cavity is not
easy to leak, peripheral mud debris is not easy to enter the bearing cavity, bearing so as to ensure the normal operation.
Can be replaced by a regular replacement of grease, grease will not be used for a long time, resulting in warming,
thereby prolonging the service life of the lift.
HAIRUN Hoisting Swivel Elevator in China:
In China, the company's products exclusive supply and Xugong, CSR, Zoomlion,CHTC JOVE,
ORSUS Principal multiple host manufacturers, and Chinese market share above 80%.
In China, we specialized in manufacturing for ten years, is the largest Chinese manufacturer to do
the best, and HJ08 this model only our company can manufacture in China, due to the need to reach
the torque and traction, we carried out a wide range of testing practices, now on a large rotary drilling
rig has been used safely and successfully achieved without an accident without damage good results.
About HAIRUN :
Xuzhou Hydraulic Hairun Electric Co., Ltd., covers an area of about 5,0000 square meters, the design department
has five strong team, production line workers have 50 people, in various parts of the country there are four service team,
each team is made ten individuals, the quality of survival is the company has been pursuing the idea, and after-sales team 24
hours by the mobility to more quickly and efficiently solve problems to customers.
Xuzhou HaiRun hydraulicElectricaland mechanicalTechnology Co., Ltd. located in China's construction machinery of all - Xuzhou,
specializes in rotary drilling rig supporting research and development, design, manufacturing and marketing. With the region's strong research,
human resources, relying on its own starting point, high-tech innovation capacity in the first research and development, design and production
of rotary drilling rigs, diaphragm wall grab the lead with a lift device (rotary union), horizontal directional Drilling with a splitter.
The company is specialized in the production of rotary drilling rig with drill pipe, include references devices (rotary union), auger cutter, bucket teeth,
and a continuous wall grab the lead with a lift device.
Hairun people adhering to the "pioneering, truth-seeking, innovation, hard work, progressive" spirit, followed by domestic and foreign market demand,

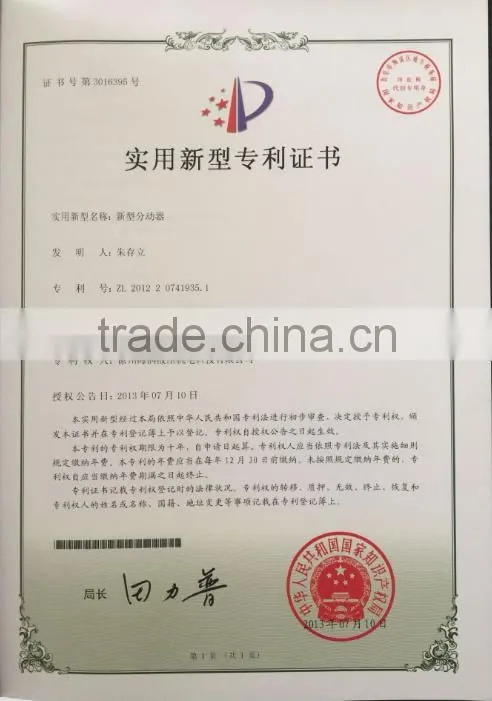

has passed the ISO9001: 2008 quality system certification, and a number of national patents. Through technology brand, relying on the development of
scientific and technological progress, complete testing equipment and advanced manufacturing systems, the success of becoming Xugong Group, Beijing CSR Times,
Shantui Group, Hunan Hengtian 1995 and ORSUS special, Hebei new drilling, Henan include references to the three of the other exclusive supplier.
Rotary drilling rig drill pipe, include references are Sany, Zhengzhou Yutong, Sunward, in conjunction Branch, Fukuda Revo, Kawashima machinery, Zhejiang Zhenzhong,
Tianjin Meet other enterprises highly recommended brand. Continuous wall grab the lead with a mention has been successfully configured for standard Shanghai Jintai,
XCMG, Zoomlion, Beijing CSR Times and other enterprises. The company with excellent products with the host exported all over the world, in the domestic construction
site is unique, favored by the users.
Professional manufacturing level to win customers and host manufacturers of praise, good quality for the customer to create a huge economic benefits.
Xuzhou HaiRun hydraulicElectricaland mechanicalTechnology Co., Ltd.will, as always, adhere to: technology and development, quality of survival of quality,
honest to the letter-oriented, excellent win business philosophy, sincere mutual communication services indefinitely principle of service, will continue to create industry-leading high-quality products, better service to customers, and is committed Piling industry colleagues to join hands in creating a better future.
