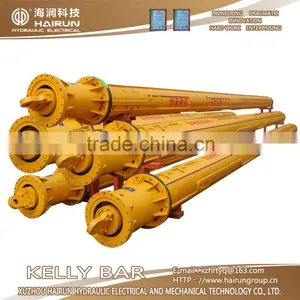

HaiRun Kelly Bar:
Using the international advanced bond type distribution technology, the internal and external bond overlap,
Improve the reliability and performance of the kelly bar.
All the high - strength alloy pipe is used to ensure the size precision, excellent mechanical properties and
welding adaptability of the special steel tube (such as core section) for the two time enhanced heat treatment,
greatly improving the performance of the kelly bar.
All keys of the kelly bar are made of high strength and high quality alloy structural steel, and the inner key is
used as a whole structure, which greatly improves the wear resistance and life of the internal and external key
strips, thereby reducing the failure rate and maintenance of the drill rod.
Reasonable pipe system configuration, so that the thickness of the key bar thickness, improve the transmission
torque and the ability of the kelly bar, reduce the emergence of the drill rod, rod, rolling and other failures.
The unique double blocking ring structure, increasing the length of the total length of the kelly bar, not only solves
the problem of easy deformation of the steel tube end, but also increases the coaxial degree and the bending
performance of the kelly bar.
Professional deep hole, Ying Yan, sand pile hole construction technology, optimize the construction scheme
and a strong construction technology team, to avoid the difficulties caused by the complex formation, the hairun
kelly bar is to improve the efficiency of drilling, the first choice for maximum benefit.
| O.D.(D) mm |
No.of sections |
L(m) | Nominal Torque (KN.m) |
Nominal drilling depth(m) |
| 630 | 4,5,6 | 10~25 | 600 | 36~143 |
| 575 | 4,5,6 | 10~21 | 500 | 36~120 |
| 530 | 4,5,6 | 10~20 | 360 | 36~114 |
| 508 | 4,5,6 | 10~18.5 | 360 | 36~103 |
| 470 | 4,5,6 | 10~16.5 | 280 | 36~91 |
| 440 | 4,5,6 | 10~15 | 230 | 36~85 |
| 426(419) | 4,5,6 | 10~15 | 250 | 36~85 |
| 406(394) | 4,5 | 10~17 | 230 | 36~79 |
| 377(368) | 4,5 | 10~14 | 220 | 36~65 |
| 355 | 4,5 | 10~13 | 140 | 36~60 |
| 340(343) | 4 | 10~13 | 230 | 36~48 |
| 299 | 4 | 10~13 | 140 | 36~48 |

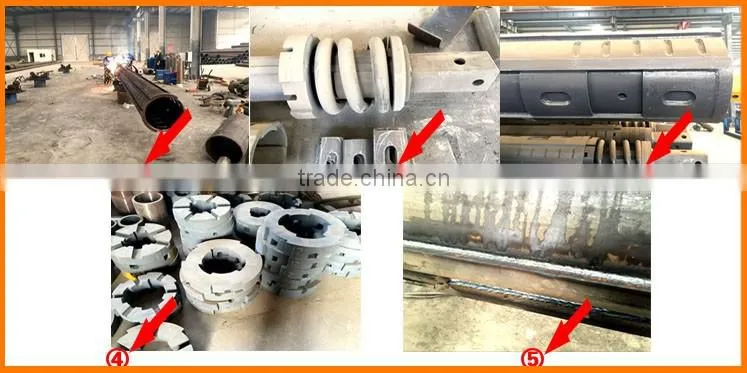

Hairun auger drill detailed description and production processes:
1.Both groups of welding production line
2.Square Head: We according to BAUER kelly bar's desiging to re-desing this square head.
Its have advantages of simple using, good looking and etc.
3.Add Rotary drill bottom reinforcing ring strengthen applicability
4.Reasonable to calculate the thickness and the materials used to make it effective to strengthen the
applicability of wear and scalability
5.Pretty skilled welding technology and welding technology

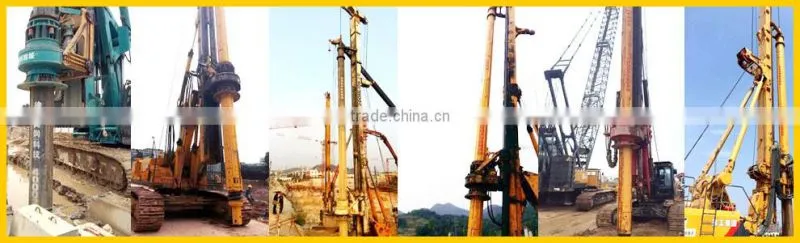

HaiRun Kelly Bar Scene using pictures:
1: How fast I get the quotation?
A: We usually quote within 24 hours after we get your inquire. If you are urgent to get the price, please call
us or tell us in your email so that we will send you price priority.
2: Are you manufacturer?
A:Yes, we are the leading manufacturer in China. Welcome if you have plan to visit to our factory and inspect the products.
3.What kind of kelly bar can we provide?
We provide kelly bars for almost all drilling rigs, please provide us the brand name and the model of drilling rig,
and other details such as pictures of your old kelly bar, the length and outer diameter, torque and deepth.
And then we will offer the right Kelly bar which will match your drilling rig.
4. What warranty do we provide?
A:We provide 10 months warranty time. During it all accessories broken we can change a new one for you.

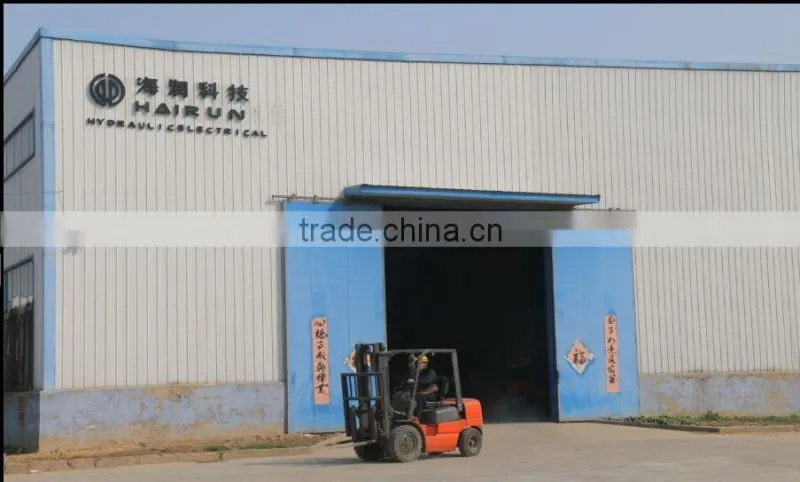

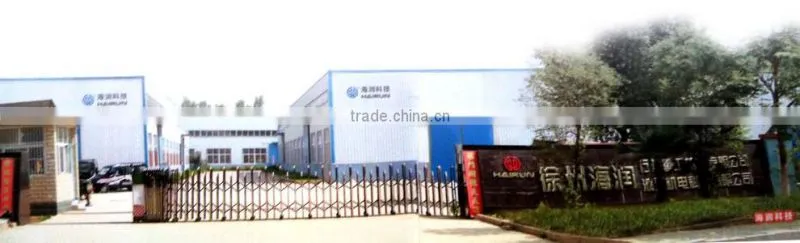

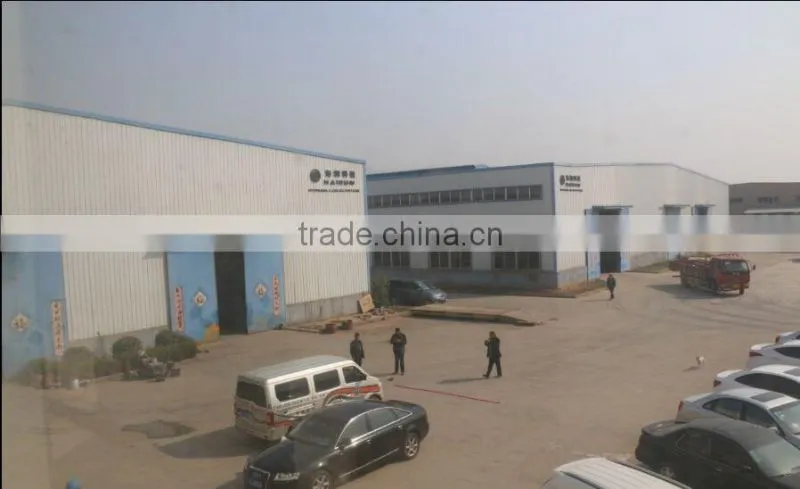

About HAIRUN :
Xuzhou Hydraulic Hairun Electric Co., Ltd., covers an area of about 5,0000 square meters, the design department
has five strong team, production line workers have 50 people, in various parts of the country there are four service team,
each team is made ten individuals, the quality of survival is the company has been pursuing the idea, and after-sales team 24
hours by the mobility to more quickly and efficiently solve problems to customers.
Xuzhou HaiRun hydraulicElectricaland mechanicalTechnology Co., Ltd. located in China's construction machinery of all - Xuzhou,
specializes in rotary drilling rig supporting research and development, design, manufacturing and marketing. With the region's strong research,
human resources, relying on its own starting point, high-tech innovation capacity in the first research and development, design and production
of rotary drilling rigs, diaphragm wall grab the lead with a lift device (rotary union), horizontal directional Drilling with a splitter.
The company is specialized in the production of rotary drilling rig with drill pipe, include references devices (rotary union), auger cutter, bucket teeth,
and a continuous wall grab the lead with a lift device.
Hairun people adhering to the "pioneering, truth-seeking, innovation, hard work, progressive" spirit, followed by domestic and foreign market demand,
has passed the ISO9001: 2008 quality system certification, and a number of national patents. Through technology brand, relying on the development of
scientific and technological progress, complete testing equipment and advanced manufacturing systems, the success of becoming Xugong Group, Beijing CSR Times,
Shantui Group, Hunan Hengtian 1995 and ORSUS special, Hebei new drilling, Henan include references to the three of the other exclusive supplier.
Rotary drilling rig drill pipe, include references are Sany, Zhengzhou Yutong, Sunward, in conjunction Branch, Fukuda Revo, Kawashima machinery, Zhejiang Zhenzhong,
Tianjin Meet other enterprises highly recommended brand. Continuous wall grab the lead with a mention has been successfully configured for standard Shanghai Jintai,
XCMG, Zoomlion, Beijing CSR Times and other enterprises. The company with excellent products with the host exported all over the world, in the domestic construction
site is unique, favored by the users.
Professional manufacturing level to win customers and host manufacturers of praise, good quality for the customer to create a huge economic benefits.
Xuzhou HaiRun hydraulicElectricaland mechanicalTechnology Co., Ltd.will, as always, adhere to: technology and development, quality of survival of quality,
honest to the letter-oriented, excellent win business philosophy, sincere mutual communication services indefinitely principle of service, will continue to create industry-leading high-quality products, better service to customers, and is committed Piling industry colleagues to join hands in creating a better future.
