Top quality Hongtech B-400 frame machine
The B-400 series of car collision repair system provide an excellentequipment which makes today's collision repair more easier,faster andefficient.
It's made of quality square tube.5200mm length and 2000mmwidth platform is a economic choice for most collision repairing shops.
Ithas an tilt lift with powerful capacity loads cars easily,a faster andstronger anchoring system with fewer bolts to secure the vehicle to thedeck platform.
Tower circumnavigate the platform smoothly andeffortless operation.Variable-position pull collars provide forunlimited positioning for the correct pulls when making 10ton pulls atthe hook.Overhead boom with patented wheel is quite useful for the highroof cars.

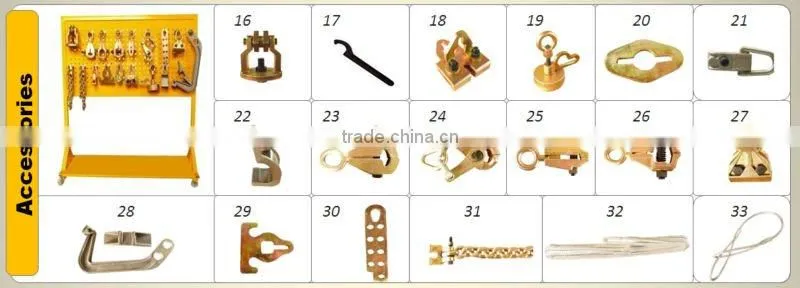

Plenty of striking and forged pulling accessories proof-tested with powerful strength.
One loading package includes winch,wheel stands,car dollies and secondary bag air jack,is a optional parts.
- Convenient and accurate measuring system in the industry.
- Most efficient pulling system in the world.
- Comprehensive vehicle database(Mitchell).
- Fast and easy anchoring clamp.
- National service support network.
Technical Data
Parameters |
Data |
| Platform length | 5200mm |
| Platform width | 2000mm |
| Platform height | 580mm |
| Hydraulic pressure | 70Mpa(10000psi) |
| Max.pulling | 95KN(10Ton) |
| Pulling radius | 360° |
| Pneumatic | 0.8Mpa |
| Max. lifting weight | 3000KG |
| Total weight | 2100KG |
Parts No.
FM-400 Platform
FM-3 Pulling Tower(without overhead boom)
FM-4 Pulling Tower(with overhead boom)
BB-3 Ramps
BB-4 Main Clamp
HP-1 USA Pump
RB-1 Roller Bridge
WB-1 Wheel Bracket
MS-1 2-Dimesion Measuring System(with Mitchell Database)
BB-7 Pulling Tools Set(10pcs)
MW-1 Manual Winch
UM-1 User Manual Book
Optional Parts No.
AJ-1 Air Secondary Jack
MPS-1 Multi-point Pulling System
BB-6 Assisting Clamp
MS-2 3-Dimesion Measuring System(with Mitchell Database)
SC-1 Benz Special Clamp
SC-2 BMW Special Clamp
DHC-1005 Ball Pivot
DHC-1405 Trunk Clamp
DHC-1908 Fasten Clamp
EW-1 Electric Winch
