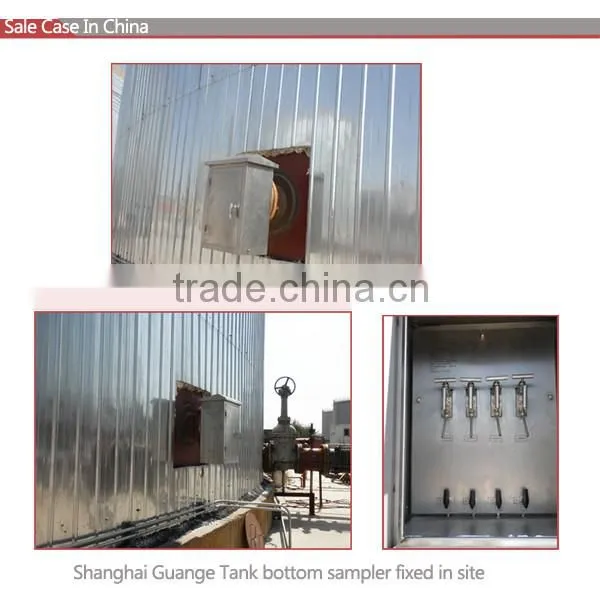

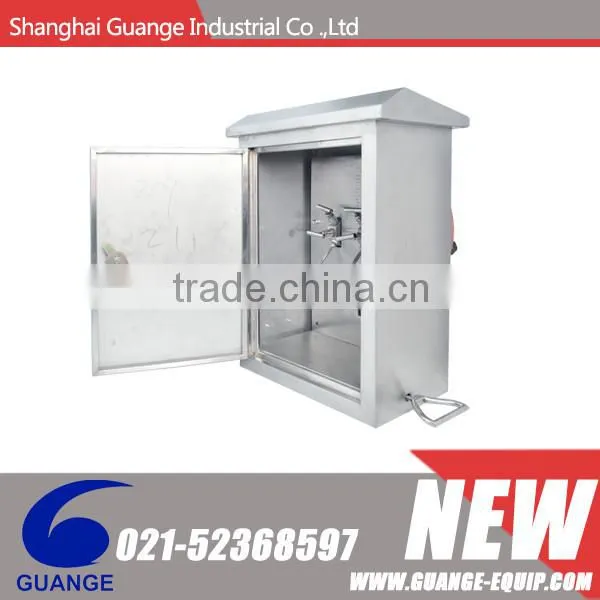

Help CenterTank Bottom Sampler SGT Fixed in Site
Related Products
-
Heavy Oil Tank Bottom Sampler SGT Fixed in SiteNegotiableMOQ: 1 Piece -
Conventional Oil Tank Bottom Sampler SGTNegotiableMOQ: 1 Piece
-
Tank Bottom Sampler SGTNegotiableMOQ: 1 Piece
-
Laboratory Table 1NegotiableMOQ: 5 Pieces
-
Laboratory Chemical Fume Hood Model No.SHGG-T57126NegotiableMOQ: 1 Piece
Specifications
Excellent sealing and convenient crude tank bottom sampling way.
Advantage
Currently oil tank sampling consisted of tank top sampling and tank
bottom sampling .in the way of topsampling,operators have to climb up
to the top of oil tank ,collecting the oil with sample bucket,which not only
gives highly dangerous to the them, also greatly affect sampling efficiency
and would not assure the precise representative sample .In comparison
sampling under the tank has obvious advantages over the top-tank sampling
:save ,convenience ,easy operation,long service life.All the sampling manipulations
would be controlled under the tank ,representative oil sample would be obtained by

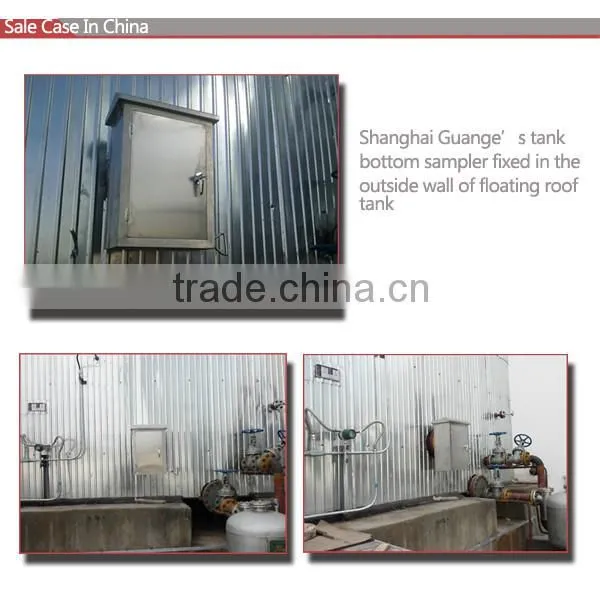

opening the valve fixed under the tank through operator.
Models
Tank bottom sampler Series
F style Tank bottom sampler
1.Three fixed site sampling assure representative sample
2.Sample’s temperature are accordance with medium in oil tank ,which protect medium from coagulate.
3.Apply to the oil medium
4.Optimum temperature :from -40°C to 95°C
S style vertical type sampler
1.Sampler openings designed to face down prevent pipe system from blocking by sand or slurry
2.Sampler pipe systems fixed on 4 different level of oil tank assure representative sample for each level.
3.Apply to all medium ,especially for oil factory.
4.Optimum temperature:from -40°C to 200°C
A style vertical type sampler
1.fixed volume Sampling assure precise sample
2.Apply to low density oil and high-volatility medium
3.Optimum temperature :from -40°C to 60°C
1.Sampling thoroughly from tank top to tank bottom ,or sampling in selected area of tank as requirement .
2.Apply to specific application .
3.Apply to all medium ,especially for preserving the high viscosity medium with temperature between 120°C to 200°C such like pitch
4.Optimum temperature :from -40°C to 200°C
