High Quality Pharmaceutical Stability Test Chambers and Rooms
Pharmaceutical Stability Test Chambers Application:
Walk in stability test room is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of big test samples, such as electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Pharmaceutical Stability Test Chambers Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test ,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
Pharmaceutical Stability Test Chambers Technical Parameters :
Model |
THR-volume (low-temperature options : A ~ F) |
Inner Dimensions(cm) |
Customers designated space size and design |
Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional) |
Humidity Range |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
|
Indication Resolution/ Distribution Uniformity of Temperature & Humidity |
0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
|
Control Accuracy of Temperature and Humidity |
±0.5°C; ±2.5% R.H. |
|
Temperature Rising/Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min; temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional) |
Cooling System |
Water cooled |
Protection Devices |
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories |
Slope for cart , Recorder, Water Purifier, Dehumidifier |
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
Power |
AC 380 V(±10%),50/60HZ ,3 Ph 5 Lines |

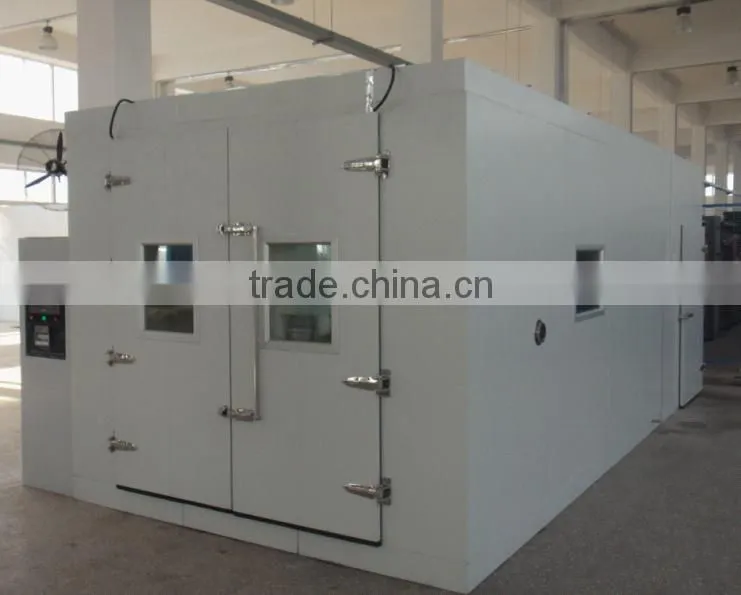

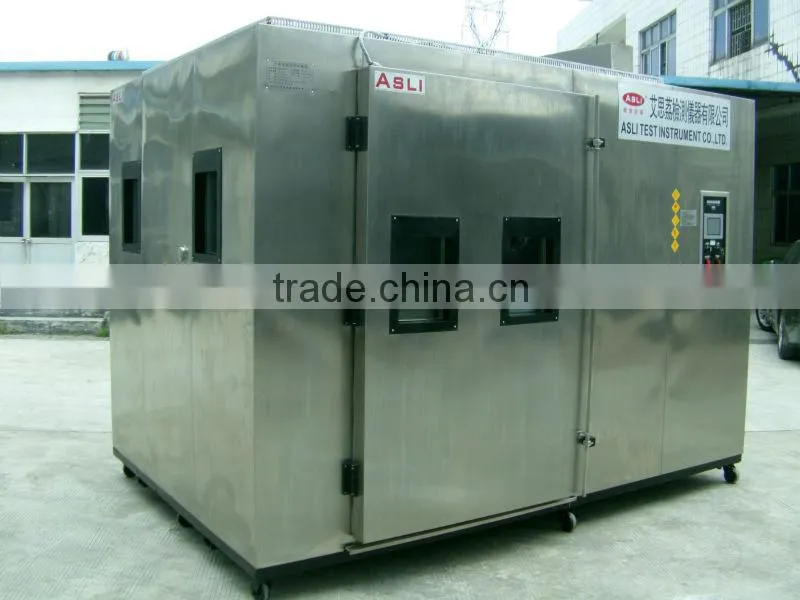

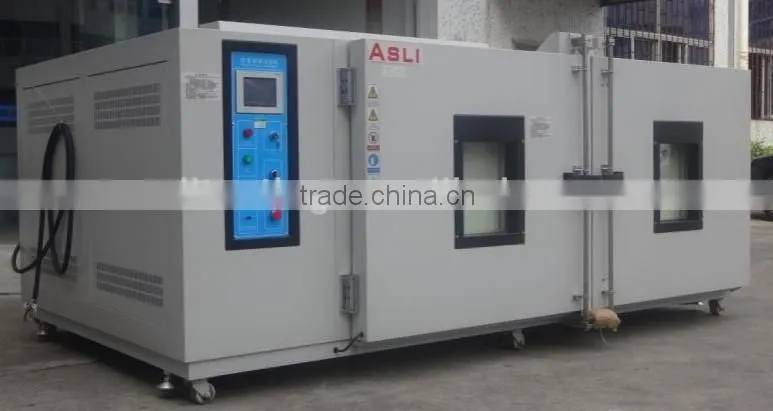

More Pictures of Pharmaceutical Stability Test Chambers for reference :
...
