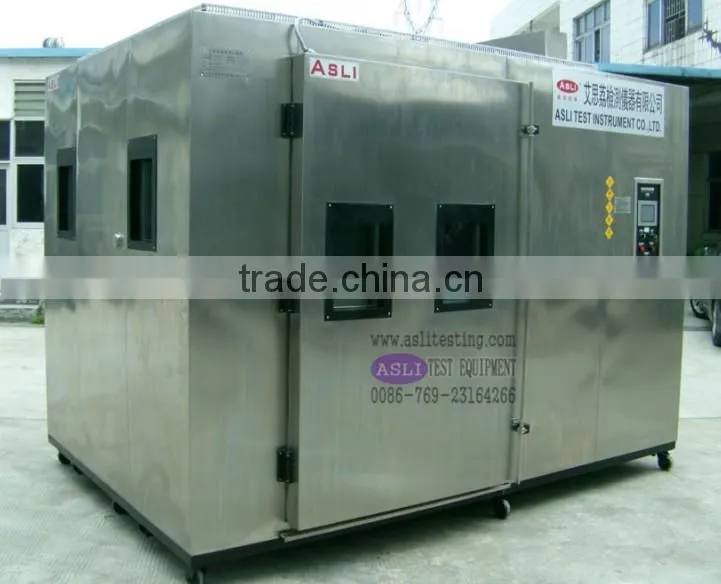

High Quality Walk-in Environmental Chamber
Walk-in Environmental Chamber Technical Parameters :
Model |
THR-volume (low-temperature options : A ~ F) |
Inner Dimensions(cm) |
Customers designated space size and design |
Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) |
Humidity Range |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
Indication Resolution / Distribution Uniformity of Temperature & Humidity |
0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
Control Accuracy of Temperature and Humidity |
±0.5°C; ±2.5% R.H. |
Temperature Rising / Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min; |
Cooling System |
Water cooled |
Protection Devices |
Fusefree switch, overloading protection switch for compressor,high and low voltage coolant rotection switch, over-humidity & over temperature protectionswitch, fuses, fault warning system, water short storage warning protection |
Optional Accessories |
Slope for cart , Recorder, Water Purifier, Dehumidifier |
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
Power |
AC 380 V(±10%),50/60HZ ,3 , 5 Lines |
Walk-in Environmental Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test ,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
Our walk-in environmental chamber has been uniquely developed to meet the requirements of test laboratories in the pharmaceutical industry.Our range is available in sizes to suit every need, from the smallest Stability Test Chamber through to the largest 'Walk-in'
Stability Test Room.

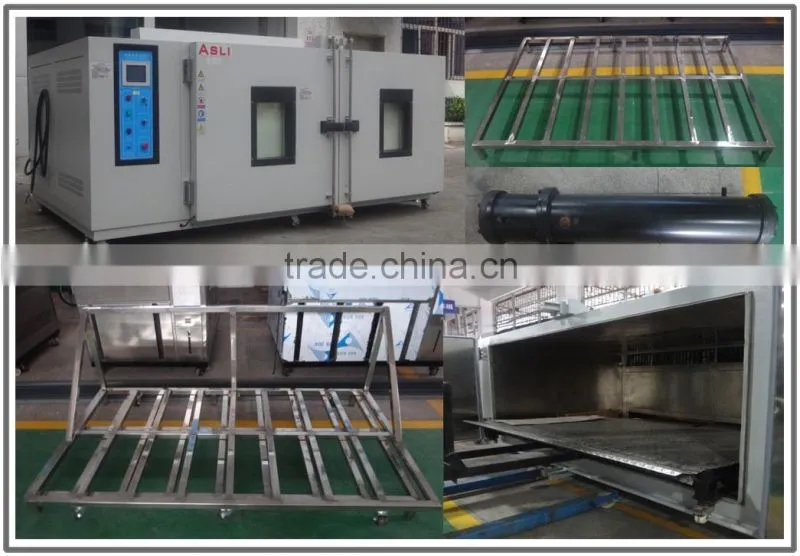

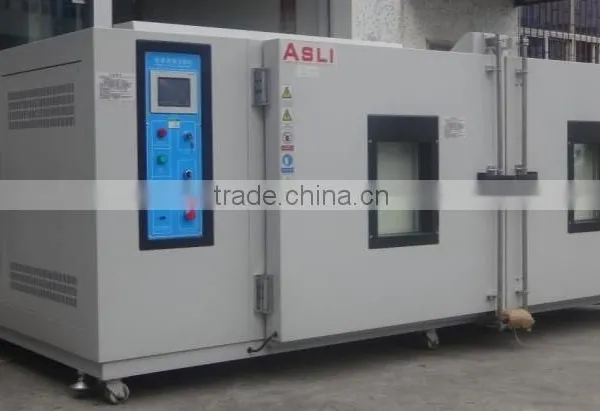

More Pictures for reference:
...
