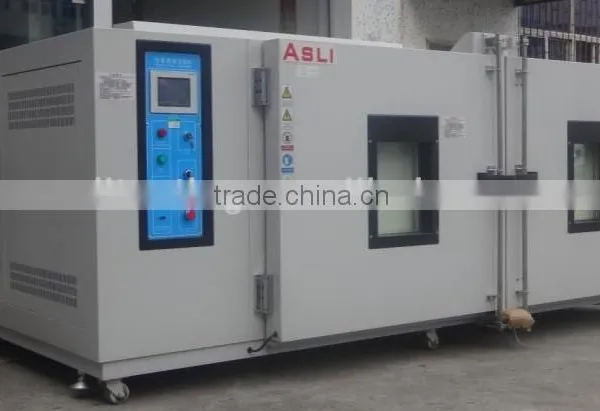

Large Type High Quality Walk In Temperature Chamber
1. Application:
Large Type High Quality Walk In Temperature Chamber is used for testing or storing products that requires a large capacity chamber under different environmental simulation exposures.
2. Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction.
Easy to operate, safe and reliable.
2. Rectangular viewing window for the observation of products under test, equipped with sweat proof electrical
heating device that can prevent water steam from condensing into droplets, and interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively for this walk in stability chamber .
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and
automatically recyclable.
5. French Tecumseh is used for the circulation system , capable of removing the lubricant between the
condensation pipes and capillaries.
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of
temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
3. Technical parameters:
Model |
THR-volume (low-temperature options : A ~ F) |
Inner Dimensions(cm) |
Customers designated space size and design |
Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional) |
Humidity Range |
20%~98%R.H. (10%-98% R.H. / 5%-98% R.H ,is a optional , need dehumidifier) |
|
Indication Resolution/ Distribution Uniformity of Temperature and Humidity |
0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
|
Control Accuracy of Temperature and Humidity |
±0.5°C; ±2.5% R.H. |
|
Temperature Rising/Falling Velocity |
Rising velocity approx. 0.1~3.0°C/min; falling velocity approx. 0.1~1.0°C/min; ( The Falling velocity Min.1.0°C /min is optional) |
Cooling System |
Water cooled |
Protection Devices |
Fuse free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories |
Slope for cart , Recorder, Water Purifier, Dehumidifier |
Compressor |
French Tecumseh , Germany Bizer |
Power |
AC 380 V 50/60Hz |
4. Warranty: one year free warranty for whole set machine,lifelong time maintainance.
5. After-sale service: feedback within 2 hours after get the call.
6. Service:OEM service,Design service,Buyer lable service.

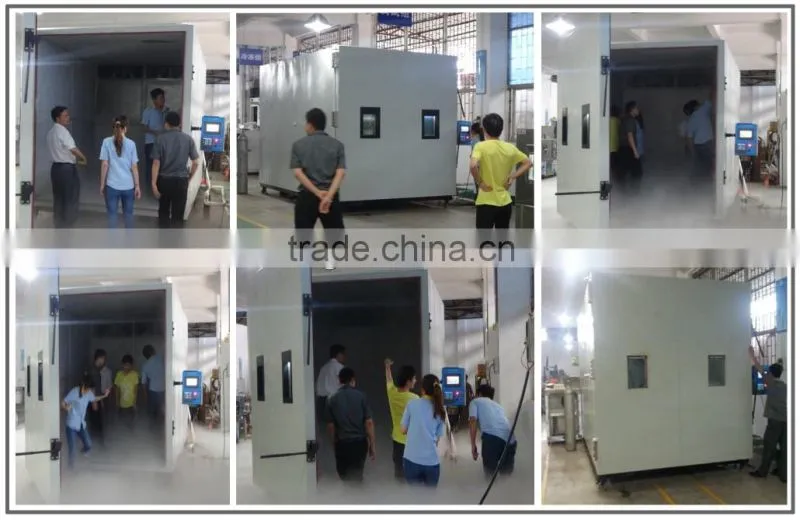

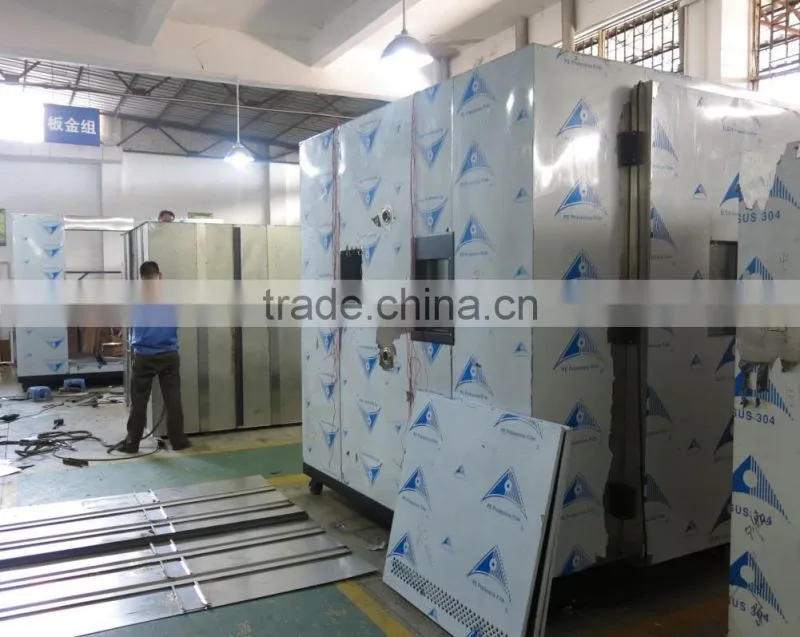

7. More pictures for Large Type High Quality Walk In Temperature Chamber :
