Walk -In Temperature Humidity Stability Test Chambers / Drive-in Environmental Test Chamber / Climate Chamber / Drive- In Chamber /Walk- In Chamber / Stability Chamber /Stability Test Chamber / Stability Storage Cabinets
Walk -In Constant Temperature Humidity Stability Chambers Technical Parameters :
Model |
THR-volume (low-temperature options : A ~ F) |
Inner Dimensions(cm) |
Customers designated space size and design |
Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional) |
Humidity Range |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
|
Indication Resolution/Distribution Uniformity of Temperature & Humidity |
0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
|
Control Accuracy of Temperature and Humidity |
±0.5°C; ±2.5% R.H. |
|
Temperature Rising/Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min; temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional) |
Cooling System |
Water cooled |
Protection Devices |
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories |
Slope for cart , Recorder, Water Purifier, Dehumidifier |
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
Power |
AC 380 V(±10%),50/60HZ ,3 Phase 5 Lines |
Walk -In Constant Temperature Humidity Stability Chambers Features:
1.With a very wide range of controlling the temperature and humidity that can fulfill users’ needs. It is stable, balanced
heating and humidification performance, it also can be high accuracy and high stability for temperature and humidity
control performance,
2. Equipped with high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display. Optional equipped with temperature and humidity records
3. Refrigeration circuit of large walk in constant temperature and humidity testing machine automatically select to
operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.
4. Door of large walk-in constant temperature and humidity testing machine with large viewing window for observation
of the testing sample
5. Equipped with advanced security, protective device leak circuit breakers, over temperature protective device, phase
absence protection , water shortage alarm .
6. Used in various rang of temperature and humidity environment, can meet different testing requirements. Adopting
BTHC unique control method, with safety and accurate temperature and humidity environment.
7. With wide view glass window, easy to observe the testing process.
Walk -In Constant Temperature Humidity Stability Chambers Applications:
1 Walk In chambers are ideal to simulate different environments applications that require high temperature
testing, high humidity, rapid temperature change rates.
2 Walk In chambers are capable of testing large components, assemblies and finished products,
simulating a wide range of temperature and humidity environments.

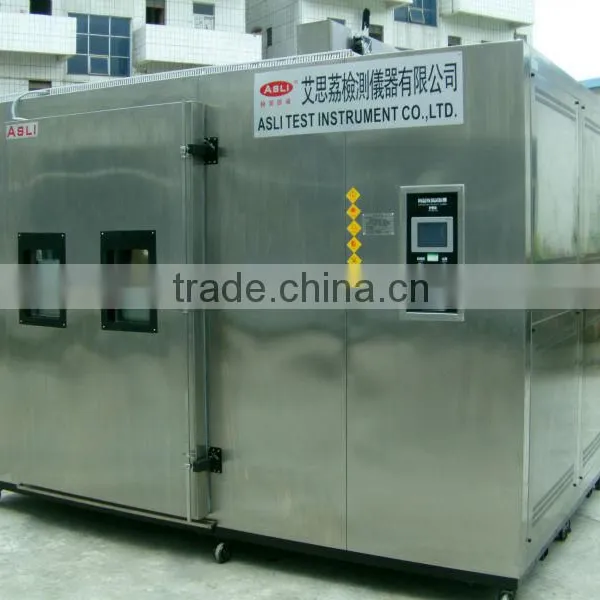

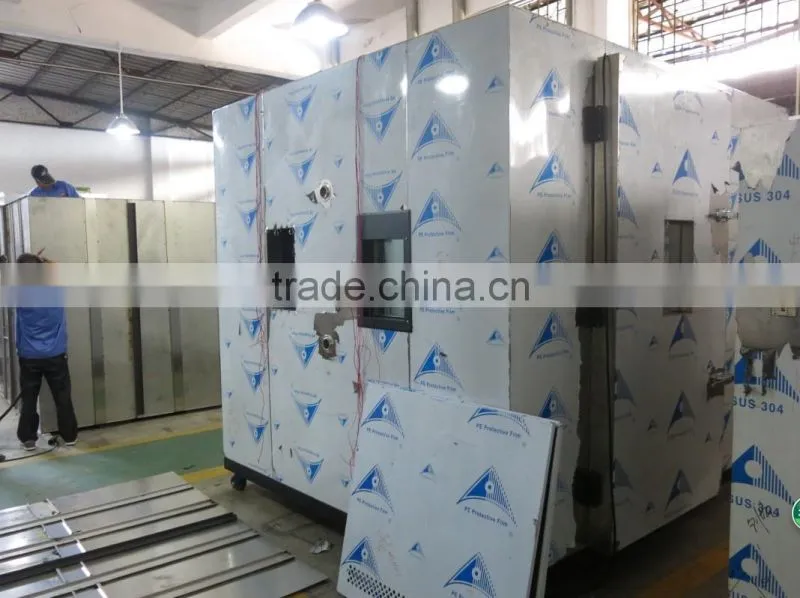

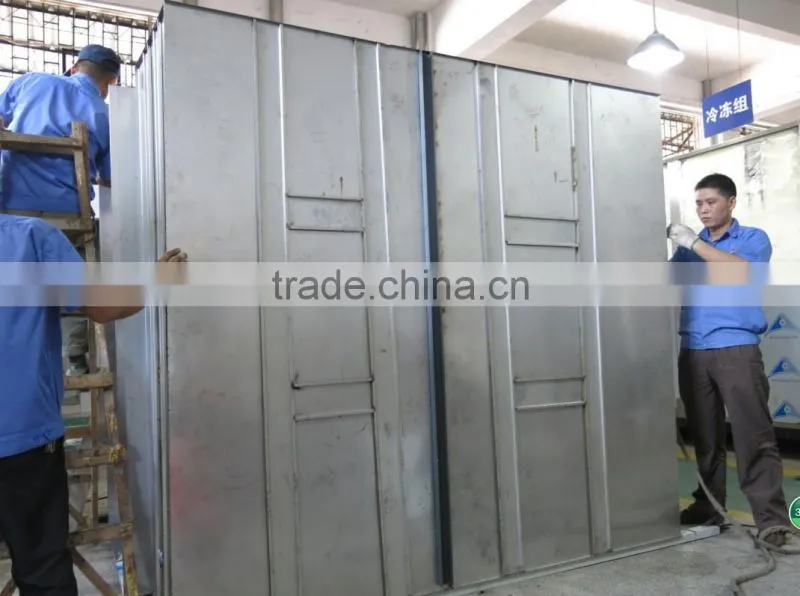

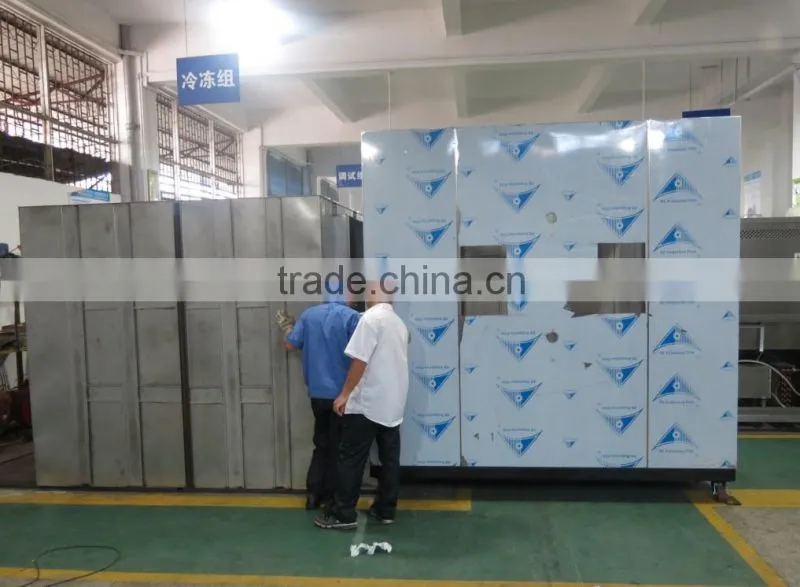

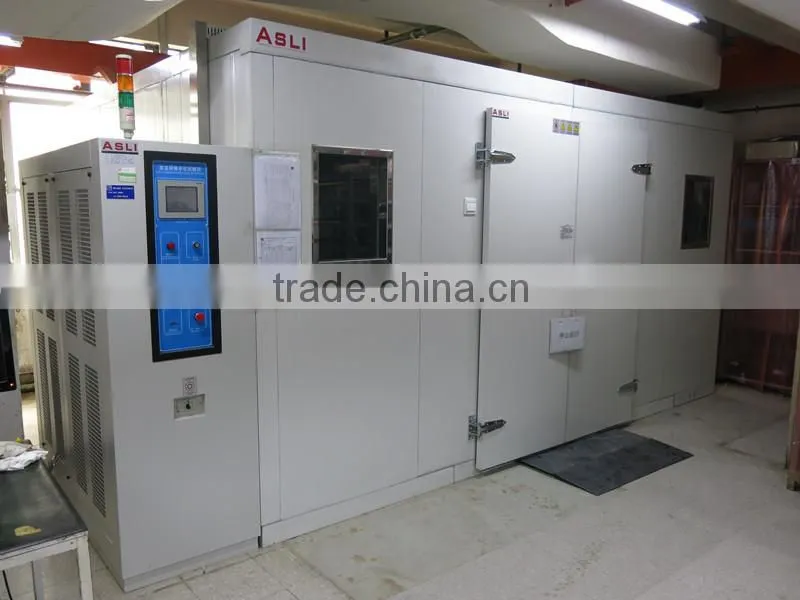

Walk -In Constant Temperature Humidity Stability ChambersPictures:
