CNC Vision Measurement Machines Technical Parameters:
Model |
SOV-4030 |
SOV-3020 |
SOV-2010 |
|
Dimensions, WxHxD (mm) |
860x650x1120 |
700x500x900 |
570x370x790 |
|
Zoom Multiple (17 inch screen) |
20x-120x, 30x-225x |
|||
CCD |
Color, 1/3 inch, 8000000 PX |
|||
X*Y*Z Stroke (mm) |
400x300x150 |
300x20x150 |
200x100x100 |
|
Bench Dimensions(mm) |
600x450 |
500x350 |
350x270 |
|
Load of Bench(Kg) |
30 |
25 |
30 |
|
Optional Configuration |
UK Probe |
|||
Weight (Kg) |
350 |
180 |
100 |
|
CNC Vision Measurement Machines Features:
1. With RS232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage &
output the graphics.
2. Optional print machine, different measurement and scanning system are available .
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning function
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
CNC Vision Measurement Machines Application:
CNC vision measurement machines designed to do three dimensional work piece on the slope, round ,
ditch,columns,ball,dimension,bland holes as well as the geometricalterms such as the distancebetween
the elements and angles. And it is widely used in mechinery,electronics, mobile fittings,home appliances,
connector, machine fittings, precision fixture, plastic, hardware, circumjacentfields of computer and so on
and other industries.
For more detaile innformation about this visual measuring machine, you are welcomed to contact us!

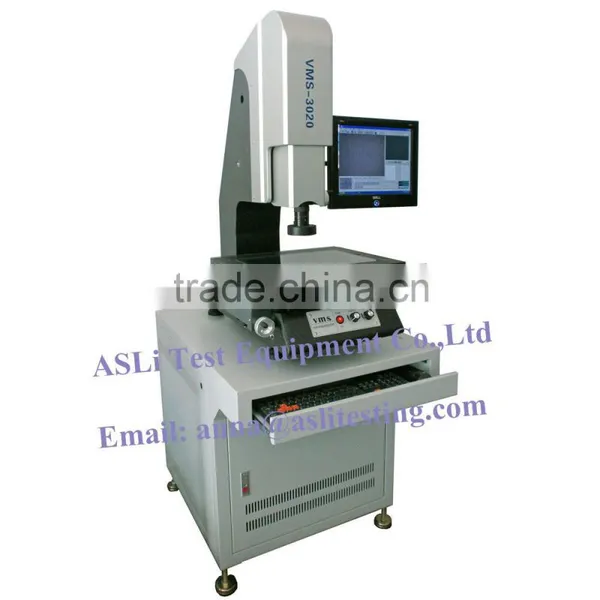

Below picture of CNC vision measurement machines for your reference only:
...
