Video Inspection & Measurement Systems
ASLi, as a leading video inspection & measurement systems supplier from China, has more than 25 year’s experience in video inspection & measurement systems manufacture. ASLI boost his own technical team in video inspection & measurement systems R&D, and it also introduces the advance quality control method in video inspection & measurement systems production. Our video inspection & measurement systems series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
Video Inspection &Measurement Systems Technical Parameters:
Model |
SOV-4030 |
SOV-3020 |
SOV-2010 |
|
Dimensions, WxHxD (mm) |
860x650x1120 |
700x500x900 |
570x370x790 |
|
Zoom Multiple (17 inch screen) |
20x-120x, 30x-225x |
|||
CCD |
Color, 1/3 inch, 8000000 PX |
|||
X*Y*Z Stroke (mm) |
400x300x150 |
300x20x150 |
200x100x100 |
|
Bench Dimensions(mm) |
600x450 |
500x350 |
350x270 |
|
Load of Bench(Kg) |
30 |
25 |
30 |
|
Optional Configuration |
UK Probe |
|||
Weight (Kg) |
350 |
180 |
100 |
|
Video Inspection &Measurement Systems Features:
1. With RS232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage &
output the graphics.
2. Optional print machine, different measurement and scanning system are available .
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multipoint positioning function
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
Video Inspection &Measurement Systems Application:
Video Inspection &Measurement Systems is designed to do three dimensional work piece on the slope, round,ditch,columns,ball,dimension,bland holes as well as the geometricalterms such as the distance between
the elements and angles. And it is widely used in mechinery,electronics, mobile fittings,home appliances,
connector, machine fittings, precision fixture, plastic, hardware, circumjacentfields of computer and so on
and other industries.

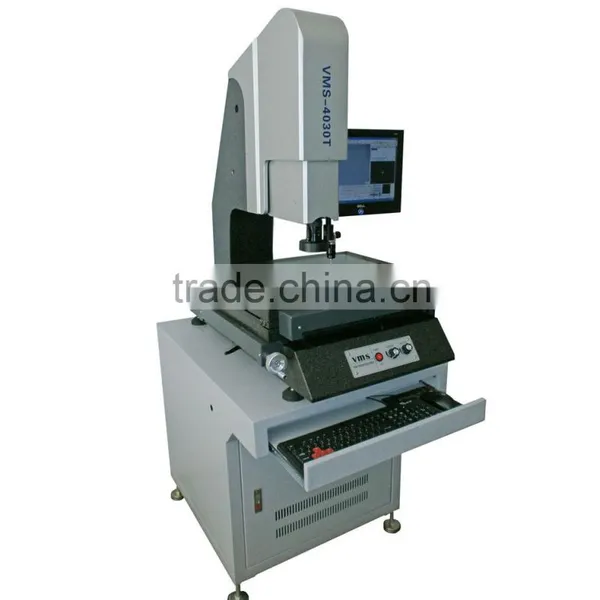

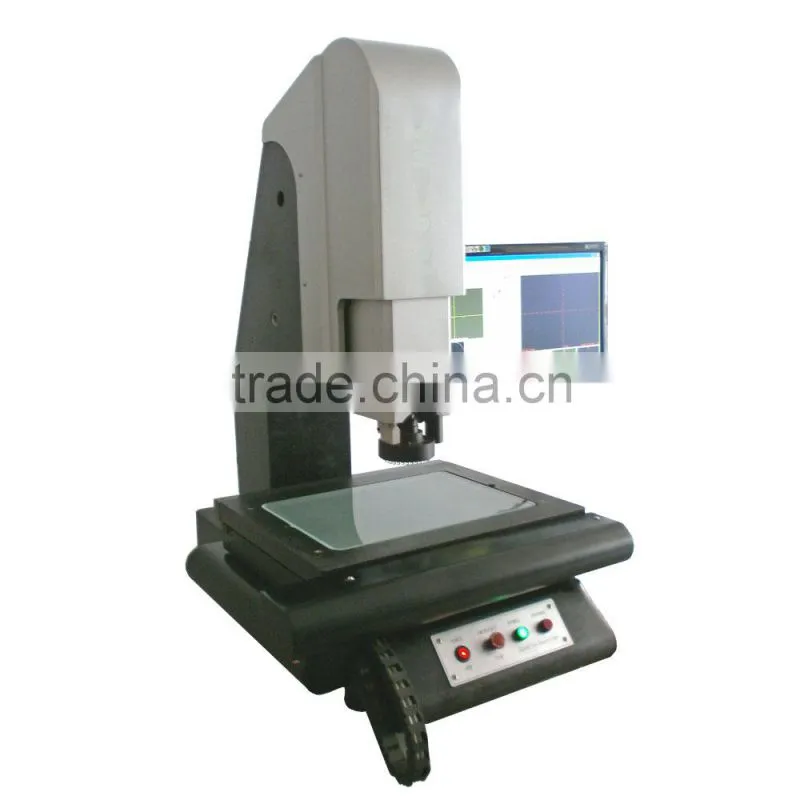

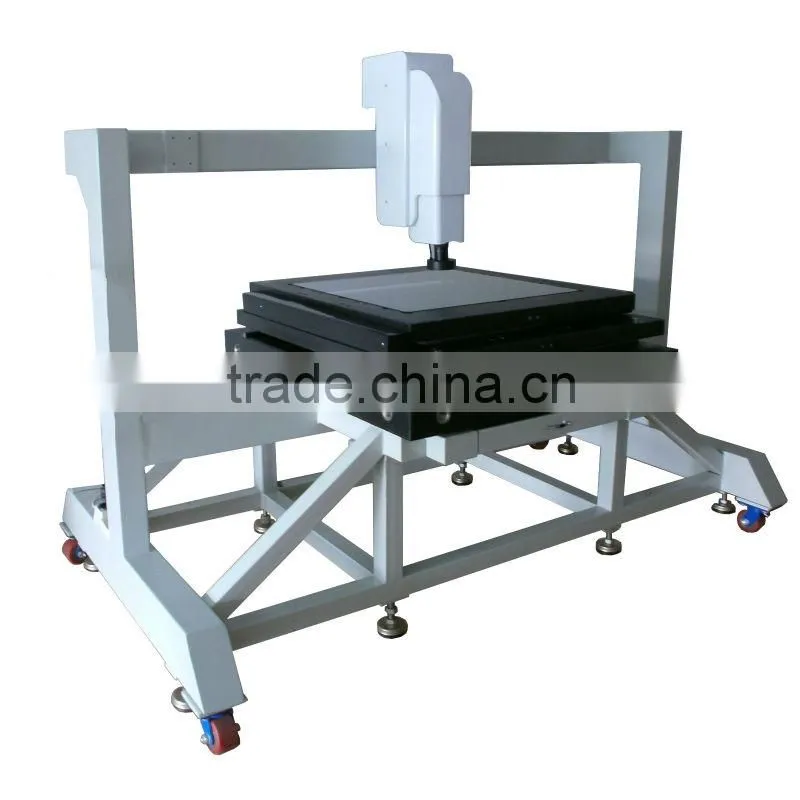

Below Pictures of Video Inspection &Measurement Systems for your reference:
...
