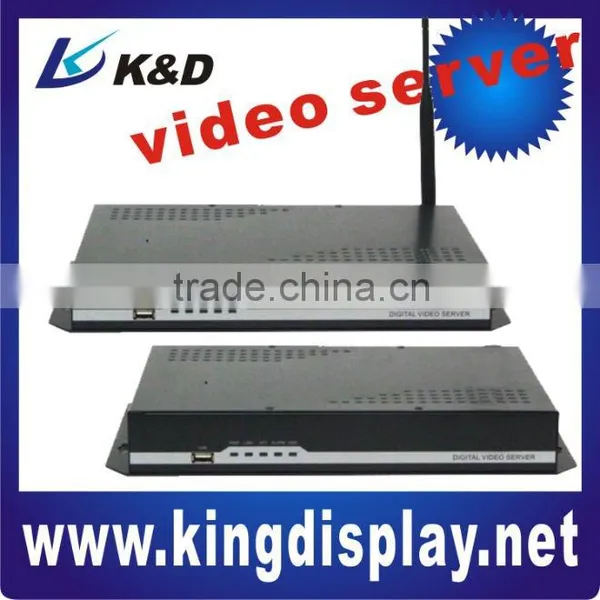

Wireless/wired Digital Video Server With Storage

Wireless/wired Digital Video Server With Storage thumbnail-1
Wireless/wired Digital Video Server With Storage photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
K&D
Model Number:
KD-DS101CT
Contact Supplier Request Quote Chat Now
Shenzhen Guowei Security Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name K&D
Model Number KD-DS101CT

Specifications

Digital Video Server
HDD storage, 2TB maximum
802.11b/g WIFI network (optional)
3G (WCDMA/CDMA2000/TD-SCDMA) optional

Video Resolution: D1/Half-D1/CIF/QCIF

HDD storage, 2TB maximum

802.11b/g WIFI network (optional)

3G (WCDMA/CDMA2000/TD-SCDMA) optional





KD-DS101CT

Wired,1 channel, CIF

KD-DS101CT-W

Wireless,1 channel, CIF

KD-DS101DT

Wired,1 channel, D1

KD-DS101DT-W

Wireless,1 channel, D1

KD-DS101DT-3G

1 channel, D1, support 3G Network:EVDO( CDMA2000),WCDMA

KD-DS102DT

Wired,2channel, D1

KD-DS102DT-W

Wireless,2 channel, D1

KD-DS102DT-3G

2 channel, D1, support 3G Network:EVDO( CDMA2000),WCDMA

KD-DS104CT

Wired,4channel, CIF

KD-DS104CT-W

Wireless,4channel, CIF

KD-DS104DT

Wired,4channel, D1

KD-DS104DT-W

Wireless,4channel, D1

KD-DS104DT-3G

4 channel, D1, support 3G Network:EVDO( CDMA2000),WCDMA

Video Input

1/2/4 channel composite video, PAL or NTSC                                                         BNC interface,1.0Vp-p,impedance 75Ohms

Video compression

H.264 Main Profile @Level 3 / MJPEG

Dual-Streaming

H.264/ MJPEG option

Video Definition

PAL: 352*288 (CIF), 704*288 (2CIF), 704*576 (D1);
NTSC: 352*240 (CIF), 704*240 (2CIF), 704*480 (D1)

Video Parameters

Brightness, Hue, Contrast, Saturation, Image quality.

Streaming Format

Optional Video Streaming or Audio &Video composite Streaming

Video Frame Rate

PAL: 1-25 frames/second ; NTSC:1-30 frames/second

Video Bit rate

32Kbps~16Mbps

Video Output

1 compound video, PAL or NTSC; BNC, level: 1.0Vp-p, impedance: 75Ω,

Audio Compression

G.726, G711, ADPCM

Audio Input

1/2/4 channel, RCA port, liner input, Impedance:1KOhms

Audio Output

1channel,RCA port, linear output

Audio talk-back input

1 channel ,MIC port

Overlaid Caption

Channel, Date, Bit rate. position adjustable

Communication Interface

1 10M/100M self-adapting Ethernet port, RS485 port, RS232 port               Built-in some high-speed protocols and decoding protocols.                     Support public protocols.                                                  Support CDMA, GPRS mobile network.                                     supports 802.11b/g protocol, 2.4GHz, maximum wireless distance can be 100 meters, Supports WEP,WPA,WPA2(support wireless model)

Storage interface

Built-in standard SATA port for HDD.                                                Support SD card storage and snapshot, SD2.0 standard. (Max 32G SD card),     Support FTP server.

Supports smart mobile monitor that is based on  Windows Mobile, Symbian and  iPhone platforms

Alarm Input

4 channel on/off input, supporting NO (normally open) or NC (normally close) sense.

Alarm Output

4 channel on/off output,120VAC 1A/24VDC 1A

Alarm Message

Sending alarm message by Email.

Input Power Supply

DC 12V,3A

Maximum Power

Less than 15W

Operating Temperature

-10 ~ +55°C

Operating Humidity

RH90%MAX

Dimension

33Cm(L) * 20Cm(W)* 4.8Cm(H)

Net weight

1.82kg

Warranty:

Two year to provide fixing, and one month to provide changing new. The warranty is based on the broken not caused by human being.



After-sale service

 Products purchased through K—D, under warranty may be for

 replacement or repair by following steps:

 1.  Contact K—D customers’ service.

 2. You must provide the problems (including original model, order number, order date and the unique number on the IP camera).

 3.  You must be sure that the mark clears in the IP camera and the unique number in the package.
