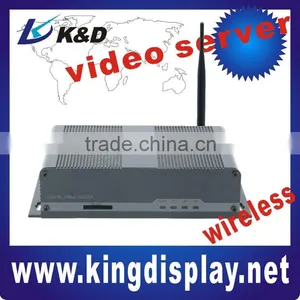

Wireless HD 1/2/4-Channel Decoder

Specifications

1/2/4-Channel Decoder
It supports 4 screens output and the video input sources come from encoder device.

1/2/4-Channel Decoder





It supports 4 screens output and the video input sources come from encoder device.



Encoder and Decoder Platform Brief Introduction

The centralized Network Decoder/Encoder Platform is an embedded large-scale centralized  encode device specially designed for network application. Using the most mature and high reliability professional  DSP solution in the industry, combine with powerful performance RTOS operating system to actually realize industry level MTBF (Mean Time Between Failure).Optimized H.264 video compression algorithm assures image transmission clearer and more fluent. Built-in Web Server allows users to carry out remote control via Internet Explorer conveniently. Furthermore, central management software can be used for integrated surveillance and management of multiple video servers, so that build large-scale video surveillance system.



Feature

·Modularization design ,support at most 32 channel encode

·H264 encoder standard , compatible D1,Half-D1 and CIF

·Optimized MP3 audio compression algorithm, support audio radiate and Bi-directional audio talk-back

·19 inches Standard frame ,5U height

·Built-in Web Sever to realize remote surveillance, control and setting via IE.

·Support 32 channel alarm input ,16 channel alarm output

·Provide video loss?? motion detection and sensor alarm functions

·Support  PPPoE dial-up function and DDNS motion domain resolution

·Support remote software update function

·Provide RS485/RS232 serial port with several built-in high-speed domes protocols

·Network self adapt function ,adjust the video frame rate according the bandwidth



Note

    The centralized Network Encoder Platform is an embedded large-scale centralized encode device specially designed for network application. Using the 19 inches Standard frame ,5U height , Modularization design ,support at most 32 channel encode so that build large-scale video surveillance system.





KD-DJ201DX	It supports 1 channel D1, 2 channels Half-D1 (2CIF), 4 channels CIF, and the video input sources come from encoder device. It decodes the image and output to TV – Wall. It is embedded GU
KD-HJ201DX	1080P(1920*1080) full HD
Video Definition	PAL: 352*288 (CIF), 704*288 (2CIF), 704*576 (D1); NTSC: 352*240 (CIF), 704*240 (2CIF), 704*576 (D1)
Video compression	H.264 Main Profile @Level 3/MJPEG optional
Streaming Format	Optional Video Streaming or Audio &Video composite Streaming
Video Output	1 compound video, PAL or NTSC; BNC, level: 1.0Vp-p, impedance: 75Ω,
Audio De-Compression	G.726
Audio Output	1channel,RCA port, linear output mp3
Communication Interface	1 10M/100M self-adapting Ethernet port,1 RS485 port,1RS232 port Supports public protocols. Supports smart mobile monitor that is based on  Windows Mobile, Symbian and  iPhone platforms
Input Power Supply	DC 12V, 1.5A
Maximum Power	Less than 15W
Operating Temperature	-10 ~ +55
Operating Humidity	RH90%MAX
Net weight	0.76kg
Size	205mm(L) * 50mm(H)* 130mm(D)



Warranty:

Two year to provide fixing, and one month to provide changing new. The warranty is based on the broken not caused by human being.



After-sale service

 Products purchased through K—D, under warranty may be for

 replacement or repair by following steps:

 1.  Contact K—D customers’ service.

 2. You must provide the problems (including original model, order number, order date and the unique number on the IP camera).

 3.  You must be sure that the mark clears in the IP camera and the unique number in the package.
