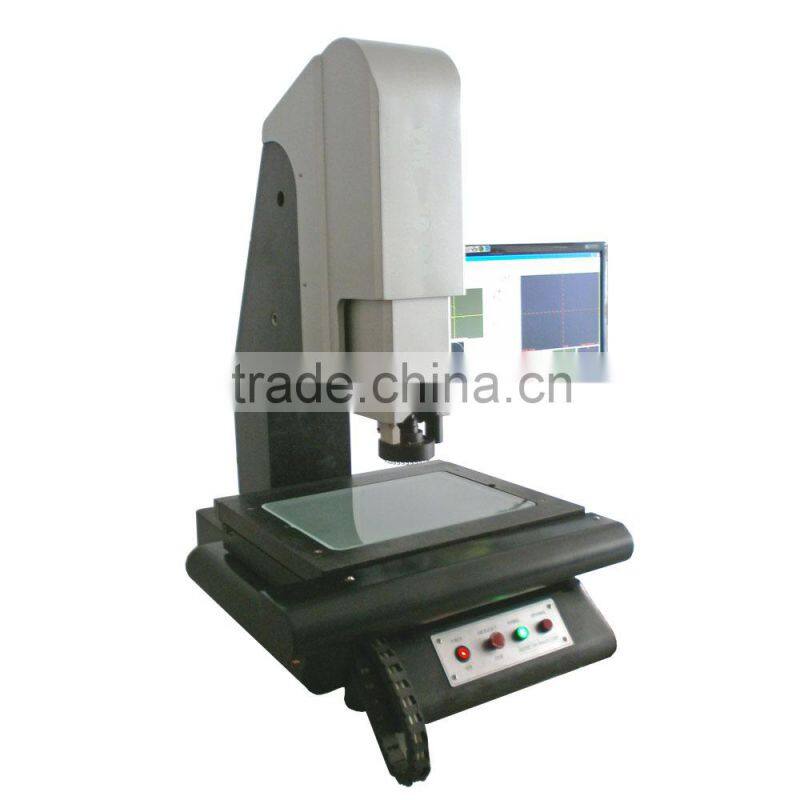

CNC Video Measuring System
CNC Video Measuring System Technical Parameters :
Model |
VMS-1510 |
VMS-2010 |
VMS-2515 |
VMS-320 |
VMS-4030 |
||||||
|
Work Table |
Metal Table Size(mm) |
354x228 |
404x228 |
450x280 |
500x330 |
606x466 |
|||||
Glass Table Size (mm) |
210x160 |
260x160 |
306x196 |
350x280 |
450x350 |
||||||
Moving Stroke (mm) |
150x100 |
200x100 |
250x150 |
300x200 |
400x300 |
||||||
Weight (Kg) |
100 |
110 |
120 |
140 |
240 |
||||||
Dimension WxHxD (mm) |
540x850x560 |
760x900x600 |
970x940x670 |
||||||||
|
Image System
|
Color 1/3’'CCD Video Camera Zoom Lenses: 0.7~4.5× |
||||||||||
Magnification of Video : 40~255× | |||||||||||
Object Field: 7-1.1mm, LEDsurface lamp plate & LED incident illuminant, light intensity adjustable | |||||||||||
CNC Video Measuring System Features :
1. With RS232 interface, can be connected with computer, adopt specialized measuring software 2D can manage &
output the graphics.
2.Optional print machine, different measurement and scanning system are available
3.Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning
function
4.Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
5.The measuring data can be directly output into Word, Excel & AutoCAD
CNC Video Measuring System Application :
CNC video measuring system is widely used to measure the two coordinates in all application areas such as machinery,
electronics, instruments, plastics, etc.
Below pictures for your reference only :
...
