Xenon chamber price
1.Application:
Xenon Chamber is is a comprehensive climate testing machine, in addition to climatic aging test, the lightfastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition
2. Main features:
Simulated sunlight damage on the material and product test, widely used in the evaluation of material climate resistant.
3. Technical parameters:
Model |
UV-230 |
|
Internal Dimension WxHxD (cm) |
115x50x40 |
|
External Dimension WxHxD (cm) |
150x150x55 |
|
Applicable Standard |
GB/T16422,GB/T5170.9 |
|
Temperature Range |
R.T.+10°C~+70°C |
|
Temperature Fluctuation |
±0.5°C |
|
Humidity Range |
≥95%R.H. |
|
Environmental Temperature for Use |
+5°C~+35°C |
|
Test Light Source |
UVA,UVB UV light |
|
Wave Length of Test light Source (nm) |
280~400 |
|
Center Distance between Sample and Tube (mm) |
50±2 |
|
Center Distance Between Tubes (mm) |
75±2 |
|
Material of Internal Case |
Stainless steel with sanding polish |
|
Material of External Case |
Stainless steel with sanding polish or painting coated |
|
Heating the Humidifier |
Electric-heat type steam generator ,heating and humidification |
|
Safety System |
Operation Interface |
Digital smarts touch key input (Programmable) |
Running Mode |
Program/constant running type |
|
Input |
Black panel thermometer.PT-100 Sensor |
|
Standard Configuration |
1 pc Stainless steel shelves |
|
Safety Configuration |
Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection |
|
Power |
AC220V 1ø 3 lines, 50HZ |
|
4. Warranty: one year free warranty for whole set machine,lifelong time maintainance.
5. After-sale service: feedback within 2 hours after get the call.
6. Service:OEM service,Design service,Buyer lable service.

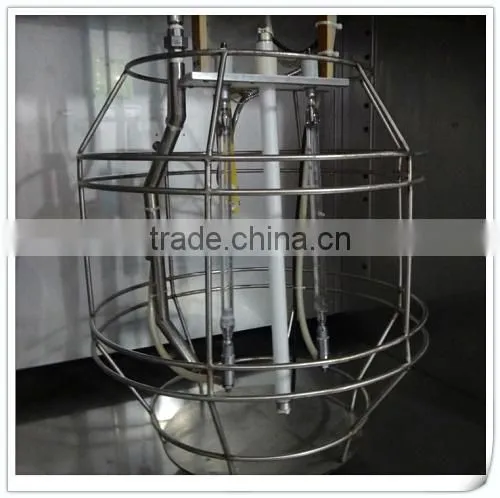

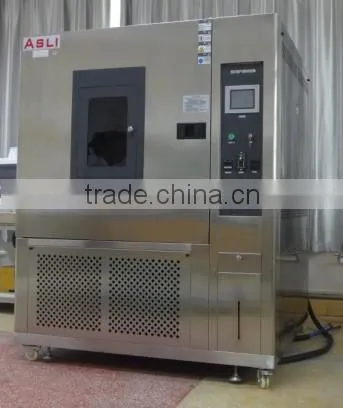

7. More pictures for Xenon chamber price:
