UV/Sunlight Aging Test Chamber
Application:
Climate Resistant Test Chamber is applied to test the sample aging resistant performance by explore the samples under simulated extremes sunlight ,humidity , etc. nature environmental conditions, can know the samples fade, transmittance, glossiness, stripping, hard, softening performance in short time. This machine is widely used in t he aviation industry, paint industry, coating industry. The automotive industry, textile industry, dye industry, plastic industry, building industry, etc.
Sunlight Carbon Arc Light Climate Resistant Tester:
Application:
Sunlight Carbon Arc Light Climate Resistant Tester is applied to do accelerate aging test under simulated California’s lighting wave length, to get reliable results. It’s widely used in Coating industry, automobile industry, building industry, communications equipment, textile industry, dye, the airline industry, rubber industry, etc.
UV/Sunlight Aging Test Chamber Features:
1. Can record the temperature, humidity, arc light voltage, arc light current, BT black ball temperature and arc light in the same time.
2. 60H continuous testing.
3. BT black ball temperature digital display, damper regulator can be controlled for stable of black ball’s temperature.
4. Unique DEW design
5.All data use digital display for long time management.
6. Adopt carbon arc Intensity detector, to keep the wave length in standard range.
UV/Sunlight Aging Test Chamber Technical parameters:
Model |
EC-A |
SC-A |
EC-B |
EC-C |
|||
Light Device |
UV carbon arc light |
Sunlight carbon arc light |
UV carbon arc light |
||||
Internal Dimension W×H×D (mm) |
1000×9000×1000 |
1100× 1000× 1100 |
700×900×700 |
||||
External Dimension W×H×D (mm) |
1300× 1300×2000 |
1300× 1300×2000 |
1150× 1800×900 |
||||
Testing Time (H.) |
20 |
60 |
20 |
||||
Testing Voltage |
120V~145V(135V) |
48V~52V(50V) |
120V~145V |
||||
Testing Current |
15A~17A(16A) |
58A~62A(60A) |
15A~17A |
||||
Black Ball Thermometer |
63±3ºC~83±3ºC |
||||||
Dia. Of Test Shelf (Φ, mm) |
800 |
960 |
508 |
||||
Revolution Speed of Testing Shelf (RPM) |
1 |
3 |
|||||
Sample Shelf |
390×70mm, 30 pcs |
390×70mm, 30 pcs |
248×50mm, 20 pcs |
||||
Temperature Range |
RT +10ºC~85ºC |
RT +10ºC~63ºC |
|||||
Humidity Range |
AT40ºC ,RH is 40%~85% / AT80ºC, RHis30%-50% |
Under 50%RH |
30%~85%RH |
||||
Carbon Rod |
Upper |
13Φ×305mm, 2 pcs |
35Φ×350mm,4pcs |
13Φ×305mm ,1pc, |
|||
Lower |
3Φ×100mm,4pcs |
23Φ×350mm,4pcs |
13Φ×100mm,2pcs |
||||
Power |
AC220V 1 ø 3 lines |
AC380V 3 ø 5 lines |
AC220V 1 ø 3 lines |
||||
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
Service:OEM service,Design service,Buyer lable service.
After-sale service: feedback within 2 hours after get the call.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. UV/Sunlight Aging Test Chamber is our star products, and we had obtained the CE certification for this machine.

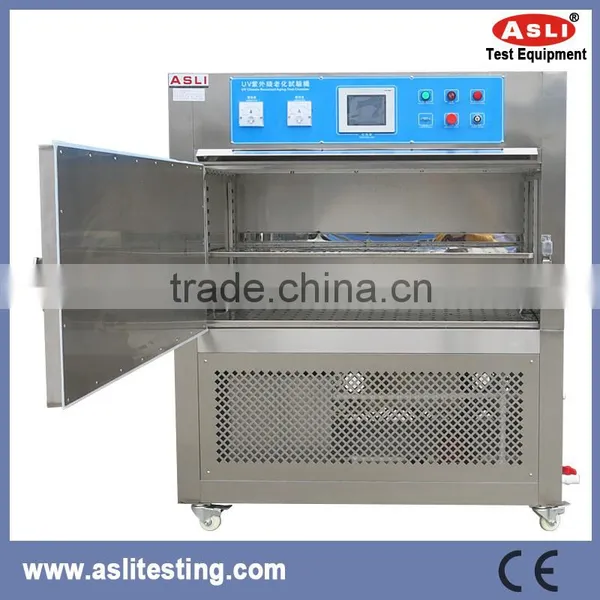

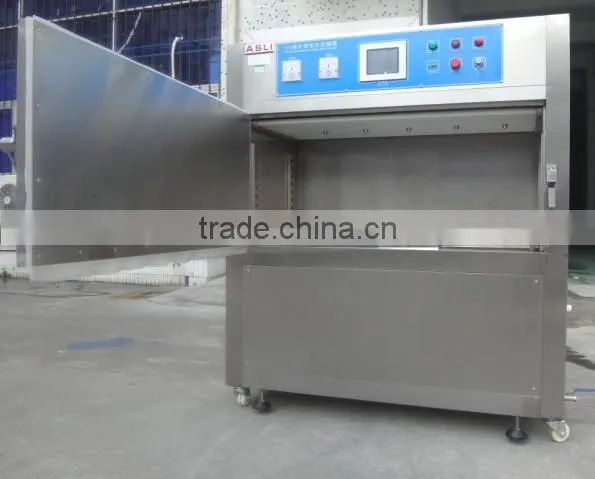

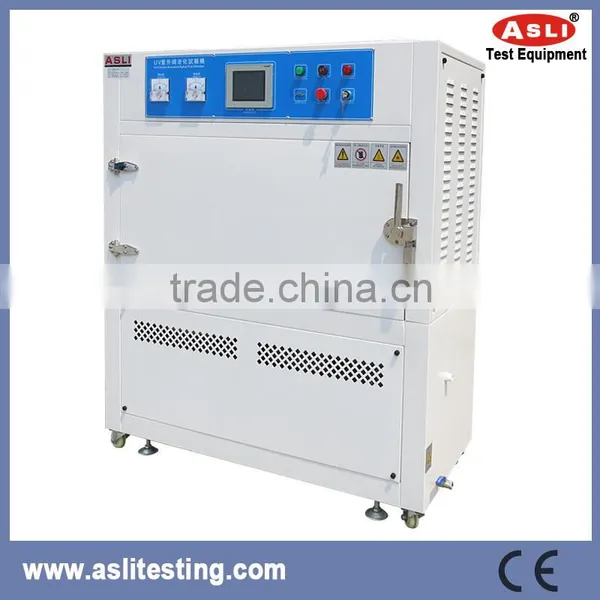

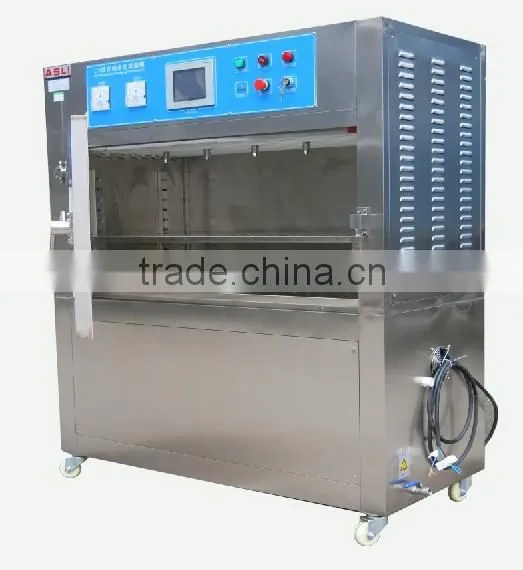

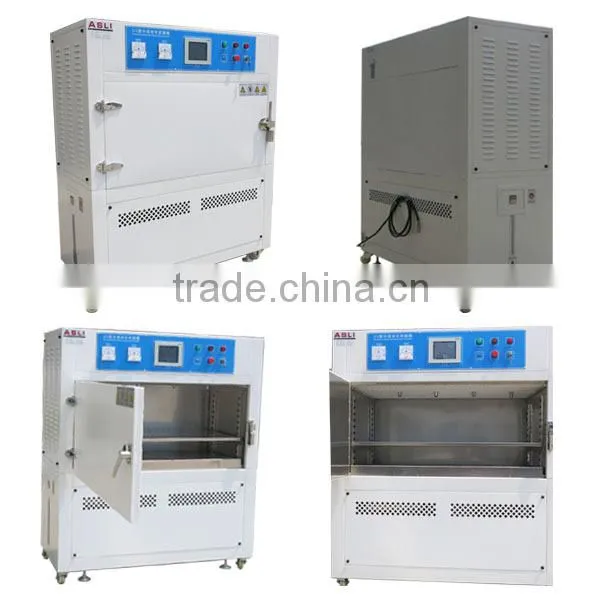

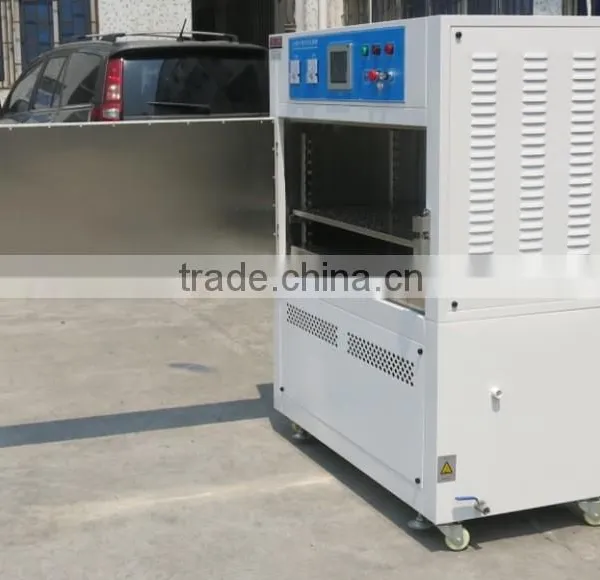

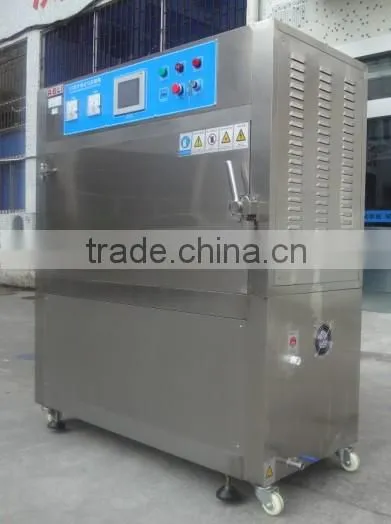

UV/Sunlight Aging Test Chamber Pictures:
