Home > Instruments & Meters > Test Instrument > Test Machine > Reliable Quality Salt Spray Test Chamber

Reliable Quality Salt Spray Test Chamber

Reliable Quality Salt Spray Test Chamber thumbnail-1
Reliable Quality Salt Spray Test Chamber photo-1
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASLi
Model Number:
THS
Contact Supplier Request Quote Chat Now
Dongguan ASLi Test Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ASLi
Model Number THS
Power Other, Electronic, AC220V 20A
Usage Other, Corrosion Test Machine

Reliable quality salt spray test chamber

      ASLI , as a leading  reliable quality salt spray test chamber supplier from china, has more than 25 year’s experience in salt spray test chambers manufacture. ASLI boost his own technical team in  salt spray  test chamber R&D, and it also introduces the advance quality control method in  salt spray test Chamber   production. Our  salt spray Test Chamber series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.



Reliable quality salt spray test chamber  Technical Parameters:





Model

SH-60

SH-90

SH-120

SH-160

SH-200

Internal Dimension WxHxD (mm)

600x450x400

900x600x500

1200x800x500

1600x800x500

2000x1000x500

External Dimension WxHxD (mm)

1100x600x1200

1400x950x1200

1900x1300x1400

2300x1300x1400

2700x1500x1500

Lab Temperature

Saline test (NSS ACSS)   35±1 °C / Corrosion Test (CASS) 50±1 °C

Pressure Bucket Temperature

Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS) 63±1 °C

Lab Capacity(L)

110

270

500

800

1500

Saline Capacity(L)

15

25

40

40

40

Saline Concentration

5% concentration of NaCl, or every Liter 5%   NaCl add 0.26g CuCl2H2O

Compressed Air Pressure(Kgf)

1.0~6.0

Spray Volume

1.0~2.0ml /80cm2 /h (working at least 16 hours, and take the average value)

Spray Form

 Continuous Spraying or Programmable Spraying

Power

AC 220V, 1ph 3 lines15A

Weight(Kg)

65

80

120

160

200





 Reliable quality salt spray test chamber   Application :

Salt Spray Test Chamber is used for imitating natural status in increase imitation test.

The imitating condition is harder than status that we usually meet. The tester can combine the follow status

such as: salt smog, dry, humidity, normal temperature, low temperature.  The tester is for product used in

 intensechangeable environment, such as: parts of automobile, navigation equipment, camera equipment,

building material, electroplate coating and resistant to metal electrolytic corrosion in electrical system.



Reliable quality salt spray test chamber   Features

1. Adopt Humidity and temperature Controller with LCD touch screen digital display, RS-232 or RS-485

communication interfac.   Temperature and humidity recorder, can keep complete records of the humidity

andtemperature graphs.This is optional.)

2. Operation mode: programmable or constant

3 Capacity of Programmable operation is 100 groups 100 steps per group, and 100H per step

4. Capacity of constant operation is 10000H.

5.  Memory function: in case of a power cut, the machine can resume the unfinished test as soon as power is

 recovered.

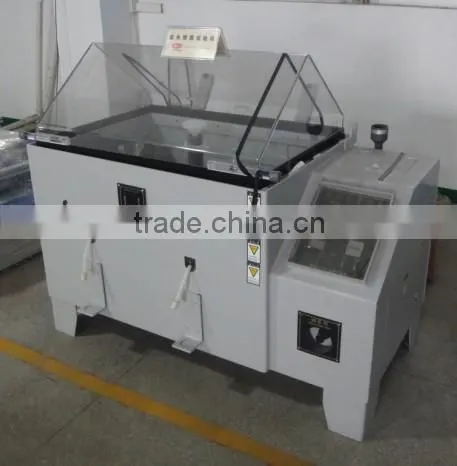

Salt Spray Test Chamber   Pictures :
