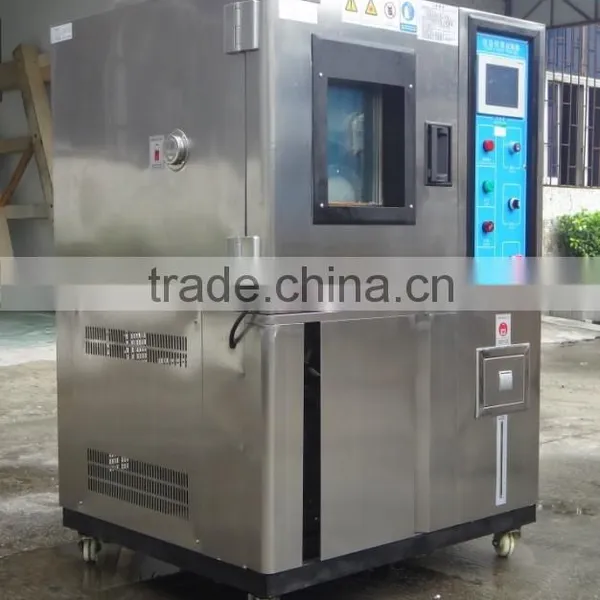

Programmable Constant temperature and humidity chambers /Programmable Temperature&Humidity Testing Machine
Technical Parameters :
Model |
F-TH-150(A~F) |
F-TH-225(A~F) |
F-TH-408(A~F) |
F-TH-800(A~F) |
F-TH-1000(A~F) |
||
|
Internal Dimension WxHxD( mm) |
500x600x500 |
600x750x500 |
600x850x800 |
1000x1000x800 |
1000x1000x1000 |
||
|
Internal Dimension WxHxD (mm) |
1100x1750x1600 |
1200x1800x1700 |
1250x1900x1900 |
1600x2050x2150 |
1700x2200x2300 |
||
|
Range of Fast Temperature Change |
Temperature Range: -70~+150ºC; Range of Fast Temperature Change: -45~+85ºC; Max. temperature rising/falling speed is 15ºC/min when the whole process with linear control . |
||||||
Humidity Range(Optional) |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition,need Dehumidifier) |
||||||
|
Analytic Accuracy/Distribution Uniformity of Temperature and Humidity |
0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. |
||||||
|
Control Accuracy of Temperature and Humidity |
±0.5ºC; ±2.5% R.H. |
||||||
|
Temperature Rising/Falling Speed Rate |
The Temperature Rising/Falling Speed Rate with linear control : 3~15ºC/min, adjustable The Temperature Rising/Falling Speed Rate non-linear control : 3~30ºC/min, adjustable |
||||||
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
||||||
Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
||||||
Cooling System |
Water cooling/single segment compressor |
||||||
Optional Accessories |
Inner door with operation hole(Optional), Water Purifier, Dehumidifier |
||||||
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
||||||
Power |
AC380V 3 ø 5 lines, 50/60HZ |
||||||
Approx. Weight(Kg) |
250 |
350 |
450 |
600 |
700 |
||
