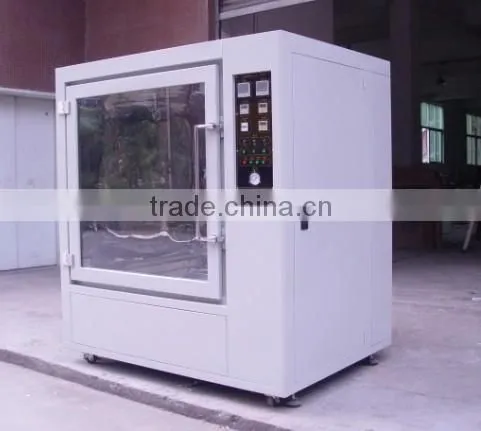

Sand IP test equipment
ASLI , as a leading sand IP test equipment supplier from china, has more than 25 year’s experience in sand IP test equipment manufacture. ASLI boost his own technical team in sand& dust chambers R&D, and it also introduces the advance quality control method in sand IP test equipment production. Our sand& dust chambers series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
Sand IP test equipment Technical Parameters :
Model |
DT-F1 |
DT-F2 |
DT-F3 |
DT-C1 |
DT-C2 |
Remark |
F for floating dust |
C for cyclone dust |
|||
Concentration of Sand and Dust |
F1: 60000mg/m3
|
F2:3000mg/m3
|
F3:100mg/m3 |
C1: 5000mg/ m3, 5m/s |
C2: 100mg/ m3, 10m/s |
Internal Dimension WxHxD (mm) |
1000x1000x1000 |
1000x1000x1000 |
|||
External Dimension WxHxD (mm) |
1600x1800x1300 |
1650x1850x1450 |
|||
Temperature Range |
RT(25°C±15°C), or lab temperature |
RT(25°C±15°C), or lab temperature |
|||
Humidity Range |
35~90% R.H., or lab humidity |
35~90% R.H., or lab humidity |
|||
Talcum Powder Dosage(Kg/m ²) |
2 ~4 |
||||
Metal Net Mesh Standard Diameter(μm) |
50 |
||||
Diameter Between Metal Wires(μm) |
75 |
||||
Powder Spray & Dust Fall Mode |
1. Dust fall freely: adopt centrifugal fan to blow the sand or dust to the 1/5 of roof, then fall freely. 2. Blow the sand or dust: pressure spray dust from the bottom, multi-steps pressure adjustable |
||||
Test Standard |
Meet JIS, ISO, IEC60529,DIN40050,GB2423 test standard |
||||
Power |
AC 220V(±10%), 1, 3 Lines,50/60HZ ; |
||||
