High Quality Sand and Dust Test Chamber
High Quality Sand and Dust Test Chamber application:
Sand and Dust Test Chamber is used for dust test including floating dust and cyclone dust: for all kinds of automobile parts, such as, automobile lamps, meter, safe belt, seat regulator, dirt proof boot of electrical appliance, lockers etc.
High Quality Sand and Dust Test Chamber features:
1. Strong spray dust device,operate independently for No.1 floating dust, No.2 floating dustt,No.3 floating dust on the gauge panel.
2. Vibration device; spray dust’s density can be the same every time.
3. Precision collection for dust concentration, Can reduce the misestimate concentration because of improper operation
4. Meet DIN, IEC, GB, ISO, JIS standard
5. Control system: be connected with and monitored by computer
6. Convenient design for dust cleaning.
7. Synchronous resonance function to ensure of the uniformity of dust concentration
High Quality Sand and Dust Test Chamber technical parameters:
Model |
DT-F1 |
DT-F2 |
DT-F3 |
DT-C1 |
DT-C2 |
Remark |
F for floating dust |
C for cyclone dust |
|||
Concentration of Sand and Dust |
F1: 60000mg/m3 |
F2: 3000mg/m3 |
F3: 100mg/m3 |
C1:5000mg/ m3, 5m/s |
C2:100mg/ m3, 10m/s |
Interior Dimension WxHxD (mm) |
1000x1000x1000 |
1000x1000x1000 |
|||
Exterior Dimension WxHxD (mm) |
1600x1800x1300 |
1650x1850x1450 |
|||
Temperature Range |
RT(25°C±15°C), or lab temperature |
RT(25°C±15°C), or lab temperature |
|||
Humidity Range |
35 to 90% R.H., or lab humidity |
35 to 90% R.H., or lab humidity |
|||
Talcum Powder Dosage (Kg/m ²) |
2 to 4 |
||||
Metal Net Mesh Standard Diameter (μm) |
50 |
||||
Diameter Between Metal Wires (μm) |
75 |
||||
Powder Spray & Dust Fall Mode |
1. Dust fall freely: adopt centrifugal fan to blow the sand or dust to the 1/5 of roof, then fall freely. 2. Blow the sand or dust: pressure spray dust from the bottom, multi-steps pressure adjustable |
||||
Test Standard |
Meet JIS, ISO, IEC60529,DIN40050,GB2423 test standard |
||||
Power |
AC 220V |
||||

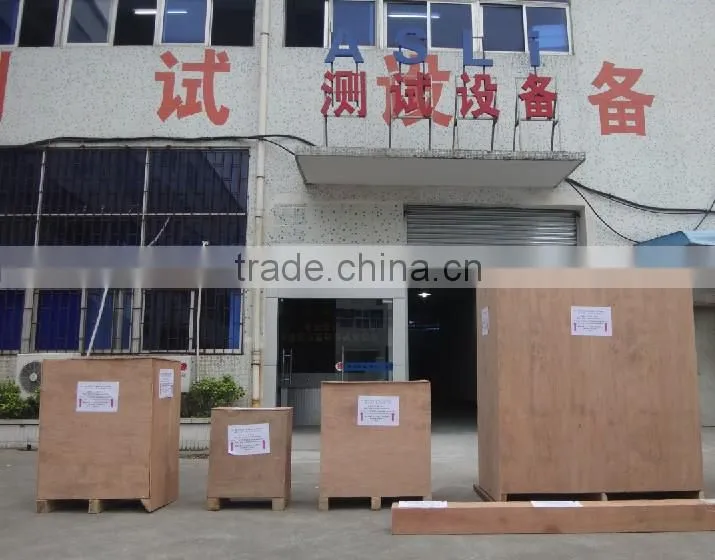

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
Service:OEM service,Design service,Buyer lable service.
After-sale service: feedback within 2 hours after get the call.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. High Quality Sand and Dust Test Chamber is our star products, and we had obtained the CE certification for this machine.

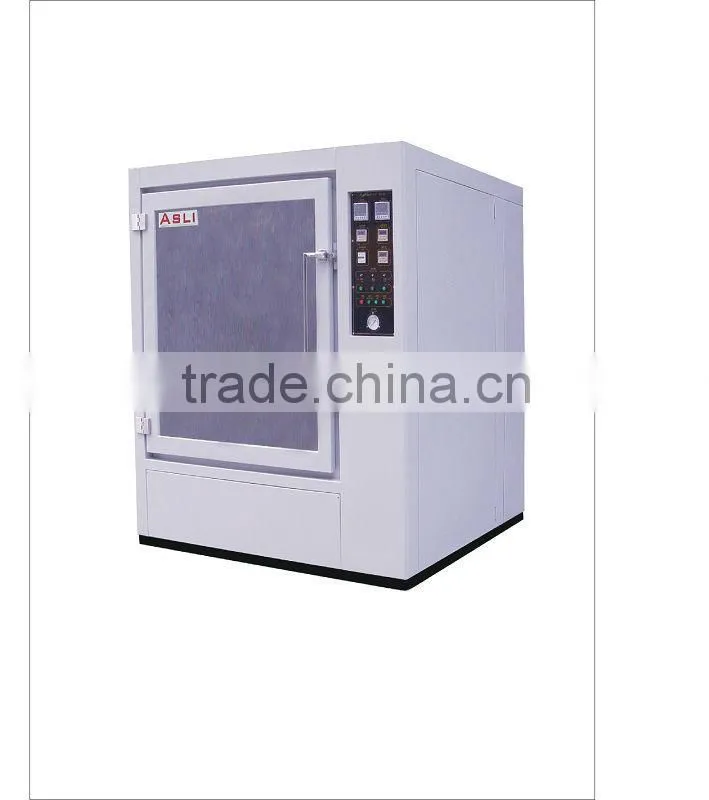

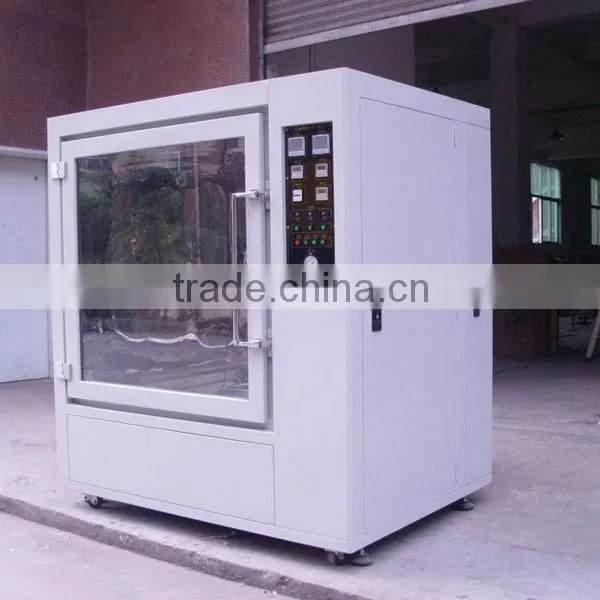

High Quality Sand and Dust Test Chamber pictures for reference:
