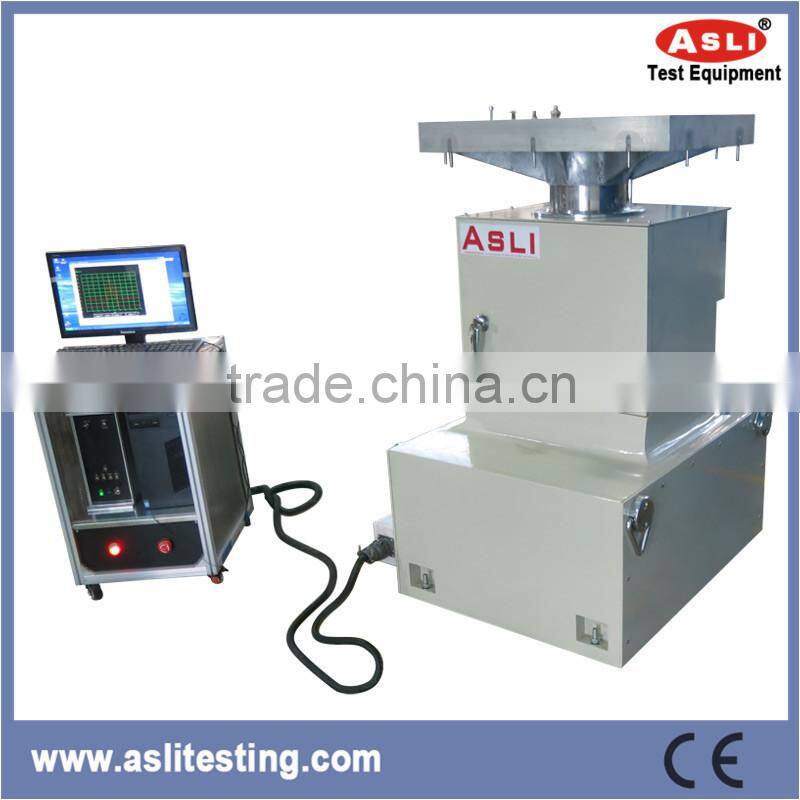

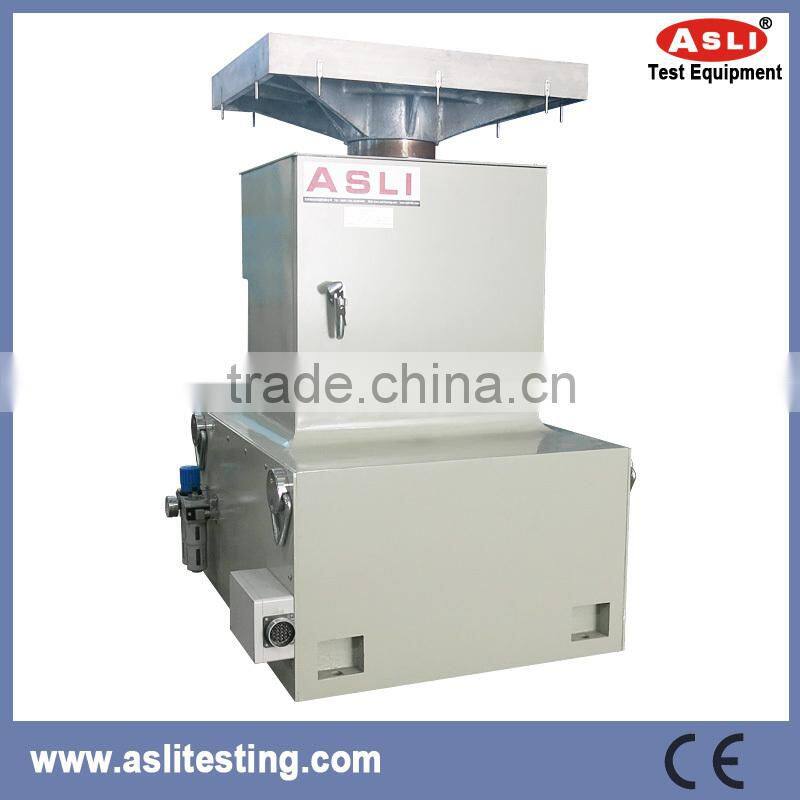

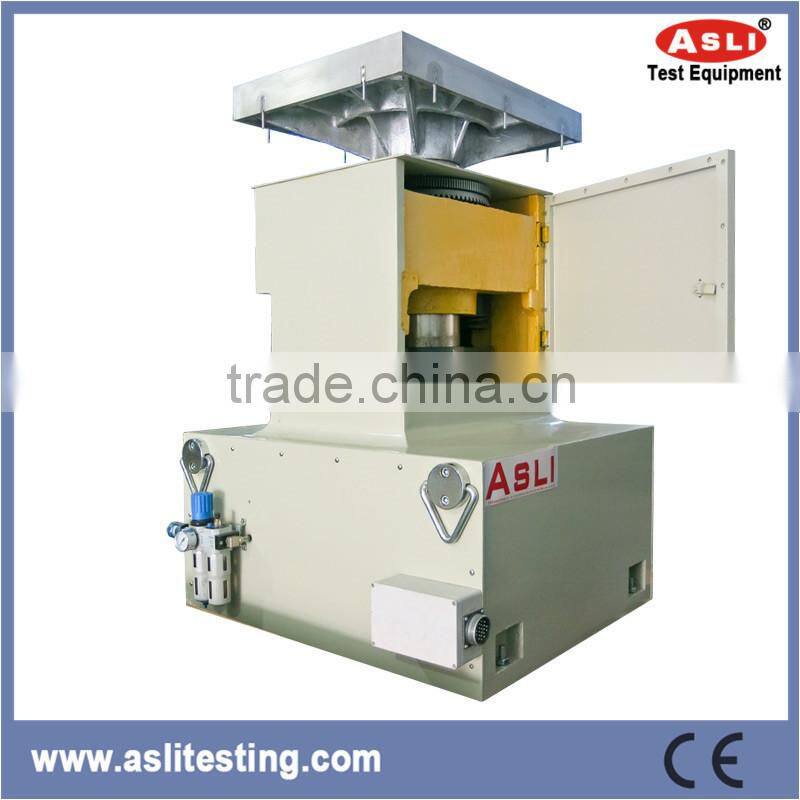

Pneumatic Mechanical Shock and Impact Tester

Dongguan ASLi Test Instrument Co., Ltd.

US$ 20,000 - 50,000 MOQ: 1 Set

Key Specifications

Power:

Other, AC220V/AC380V

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/ HK

Delivery Detail:

Delivery time depends on order quantity.

Power Other, AC220V/AC380V

What is pneumatic mechanical shock and impact tester Testing

Mechanical shock testing determines if a product can remain functional when subjected to moderately severe

shocks. Shock testing can be called different names such as high impact shock testing, impact testing,hammer

shock testing, but they are all intended to simulate sudden or abupt movement caused by field operation,

transportation,or handling.

Why do we need pneumatic mechanical shock and impact tester Testing

It is common for military component manufacturers and telcom equipment manufacturers subject their

products to mechanical shock testing. This will help ensure that shocks or repetitive shock pulses do not

affect the operating characteristics or cause physical damage. Device manufacturers also shock test

during the design verifIcation testing stage to find design flaws before going into production.

Components that should be Mechanical Shock Tested

Many components should be subjected to physical shock testing. Sudden drops can occur during transport or

handling. Any component that maybe subjected to moderate drops, impacts, slams, or overturning should be

tested by an experienced shock testing laboratory. Components subjected to reliability testing should also be

shock tested because this can help identify infant-mortality mechanisms and wear-out mechanisms.

General Equipment for Mechanical Shock Testing

ASLi Text Equipment Co.,Ltd , professional in manufacturer such kind testing equipment will give you

the best solution . Below some related informatio about high impact shock testing equipment for your

reference . More details please contact us freely !

pneumatic mechanical shock and impact tester Technical Parameters :

Model	MS-50	MS-100	MS-200	MS-500		MS-800
Load Capacity (kg)	50	100	200	500		800
Pulse Acceleration( m/s2)	50~1200	50~1000	50~1000	50~500		50~500
Pulse Width (ms)	20~3	20~3	20~3	20~3		20~3
Frequency (times /min)	10~80	10~80	10~80	10~80		10~80
Table Size (mm)	500X700	700X700	700X700	800X800		1000X 1000
Max. Dropped Height (mm)	60	60	60	60		60
Pulse Type	Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)
External Dimension WXHXD (mm)	800X1300X 1000	800X1300X 1000	850X1350X 1100		1000X1300X 1900	1000X1300X 1900
Weight (Kg)	1100	1250	2000		3000	3500
Protection Device	Door protection, over-load protection, zero signal protection
Power	AC 220V(±10%), 1&3 Lines ,50/60HZ; AC 380 V(±10%) ,3 & 5 Lines,50/60HZ
Environmental Conditions	Temperature: 25°C±5.0°C humidity: <85%(25°C)
