High Accuracy Mechanical Shock and Impact Tester for Steel Toe Cap

Name: High Accuracy Mechanical Shock and Impact Tester for Steel Toe Cap
Brand: ASLi
SKU: 110168355
Availability: InStock

US$ 36,000 - 125,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ASLi

Model Number:

MS series

Dongguan ASLi Test Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ASLi

Model Number MS series

Power Electronic

Usage Other, Impact Testing Machine, Impact Testing Machine

high accuracy mechanical shock and impact tester for steel toe cap

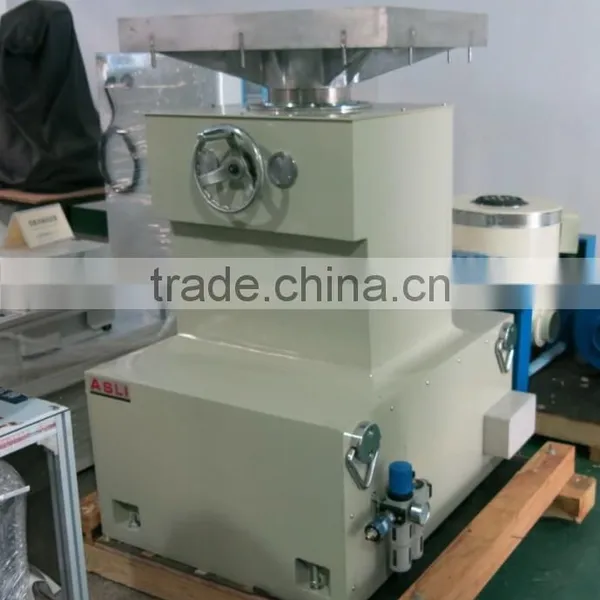

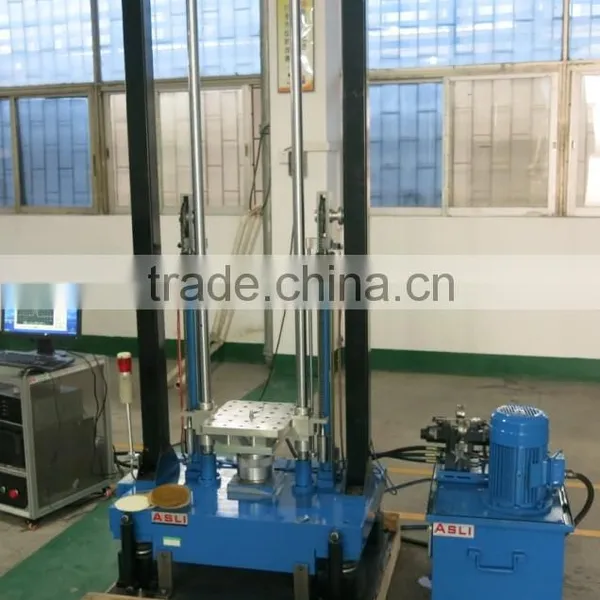

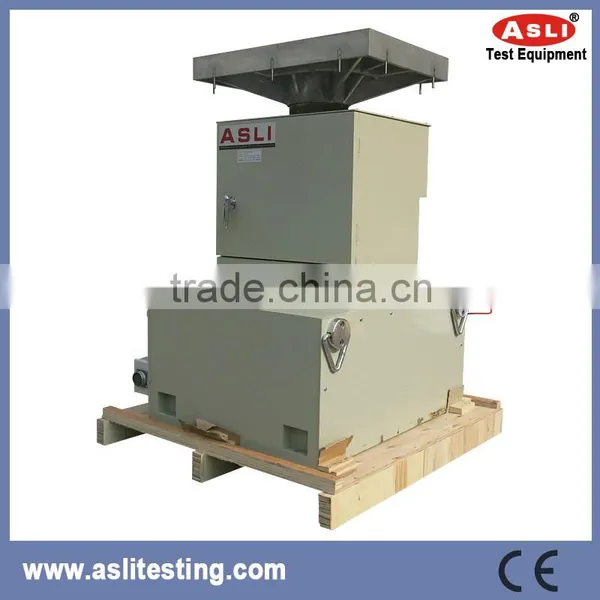

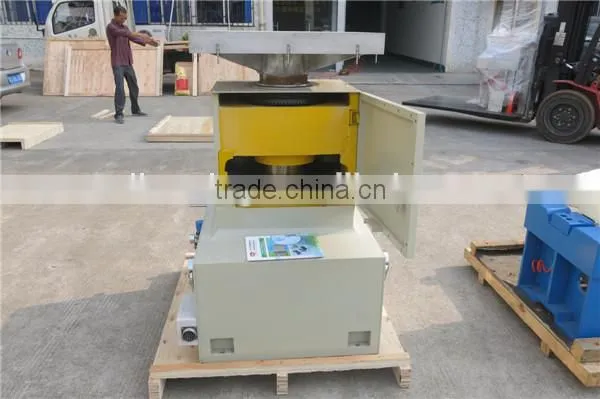

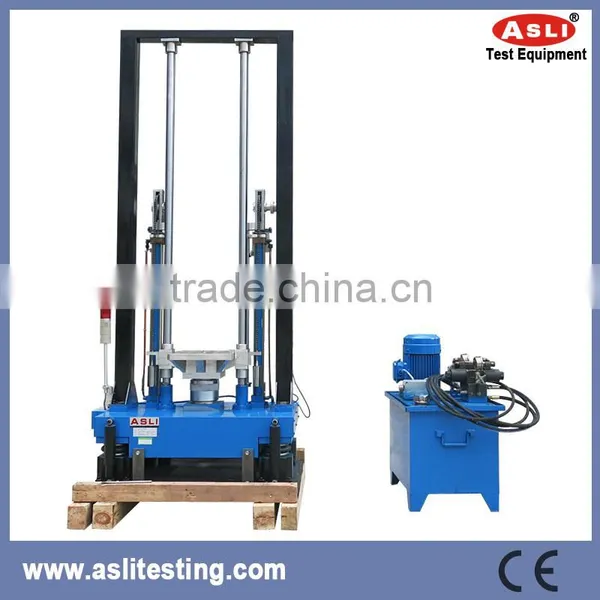

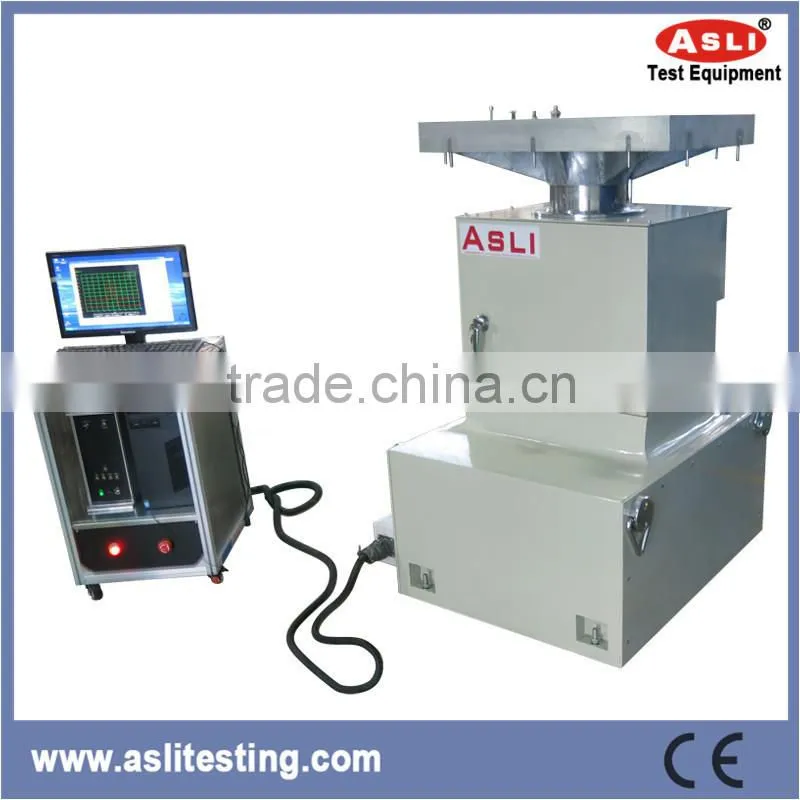

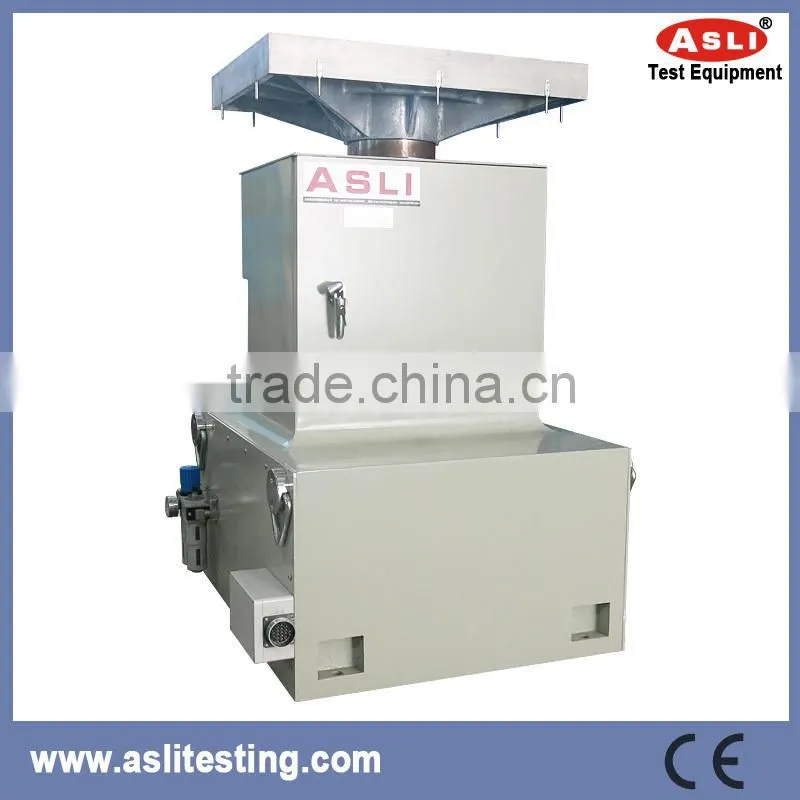

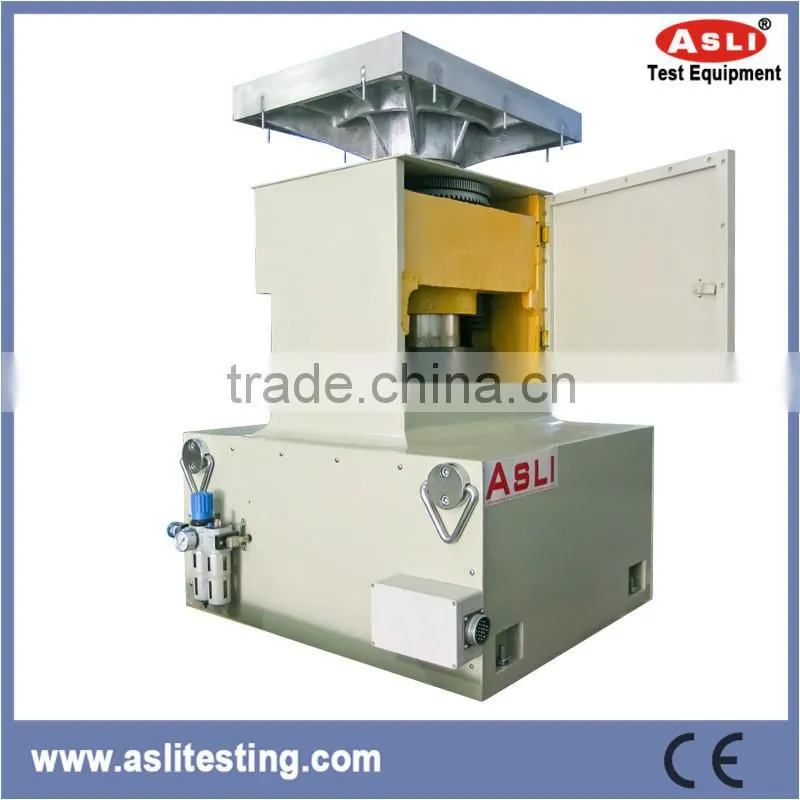

machine view

Why do we need high accuracy mechanical shock and impact tester for steel toe cap

It is common for military component manufacturers and telcom equipment manufacturers subject their

products to mechanical shock testing. This will help ensure that shocks or repetitive shock pulses do not

affect the operating characteristics or cause physical damage. Device manufacturers also shock test

during the design verifIcation testing stage to find design flaws before going into production.

high accuracy mechanical shock and impact tester for steel toe cap Technical Parameters :

Model	MS-50	MS-100	MS-200	MS-500		MS-800
Load Capacity (kg)	50	100	200	500		800
Pulse Acceleration( m/s2)	50~1200	50~1000	50~1000	50~500		50~500
Pulse Width (ms)	20~3	20~3	20~3	20~3		20~3
Frequency (times /min)	10~80	10~80	10~80	10~80		10~80
Table Size (mm)	500X700	700X700	700X700	800X800		1000X 1000
Max. Dropped Height (mm)	60	60	60	60		60
Pulse Type	Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)
External Dimension WXHXD (mm)	800X1300X 1000	800X1300X 1000	850X1350X 1100		1000X1300X 1900	1000X1300X 1900
Weight (Kg)	1100	1250	2000		3000	3500
Protection Device	Door protection, over-load protection, zero signal protection
Power	AC 220V(±10%), 1&3 Lines ,50/60HZ; AC 380 V(±10%) ,3 & 5 Lines,50/60HZ
Environmental Conditions	Temperature: 25°C±5.0°C humidity: <85%(25°C)
