HAST Chamber / Accelerated Pressure Aging Test Machine

Name: HAST Chamber / Accelerated Pressure Aging Test Machine
Brand: ASLi
SKU: 110165771
Availability: InStock

US$ 3,500 - 45,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ASLi

Model Number:

HAST Seires

Dongguan ASLi Test Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ASLi

Model Number HAST Seires

Power Other, Electronic, AC220V or AC380V

Usage Other, aging test machine

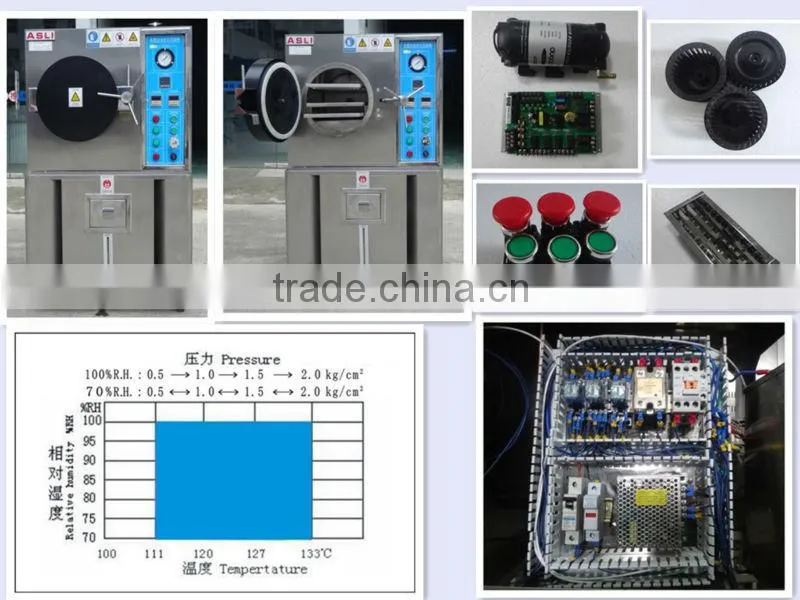

Accelerated pressure aging test machine

application:

HAST Chamber is widely used to test for multilayer circuit board, IC sealing package, LCD screen, LED, semiconductor, magnetic materials,

NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.

Safety Device:

1. Safety device for the pot: If the inner box is not closed , the machine can not start

2. Safety Valve: When the inner box’s pressure higher than the machine’s undertake value, it will self-relieve.

3. Double overheat protection device: When inner box’s temperature is too high, it will alarm, and Automatic cut off the heating power.

4. Cover protection: The inner box’s cover is made of aluminum alloy, can protect the worker from scald.

Accelerated pressure aging test machine features:

1.Automatic adding water function, and automatic filling water upon the water short storage while testing.

2.Automatic operation to test process finished, easy to use.

3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.

4. LED digital timer, when the inner box’s temperature reached the setting value, then start to time to ensure the test complete.

5.Accurate pressure: temperature chart always shows the inner box’s pressure and relative humidity.

6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.

7.A integrated silica gel door gasket, and long operation life.

8.The inner box is mirror-polished , graceful and easy to clean

Accelerated pressure aging test machine technical parameters:

Model	HAST - 25	HAST - 35		HAST - 45		HAST - 55		HAST - 65
Internal Dimension Φ×D (mm)	300×250	350×450		450×550		550×650		650×750
External Dimension Φ×D (mm)	850×1300×900	900×1350×900		1000×1480×1000		1150×1650×1200		1300×1800×1350
Steam Temperature Range	Steam Temperature Range: 100°C to135°C, (143°C is optional)
Relative Pressure Absolute Pressure	Relative pressure: values indicated on the pressure gauge Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box)
Comparison Table of Temperature, Humidity,Pressure
Steam Humidity	70~100%R.H. steam humidity adjustable
Steam Pressure(Absolute Pressure)	101.3Kpa +0.0Kg/cm² ~ 2.0Kg/cm² ; (3.0Kg/cm² is optional)
Recursive Mode	Steam in forced-circulation
Safety Protective Device	Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function )
Accessories	Two layers stainless steel plate
Equipment Capacity(L)	17		43		87		155		250
Power	AC 220V 50/60HZ; AC 380 50/60HZ
