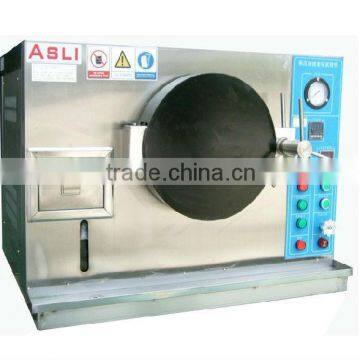

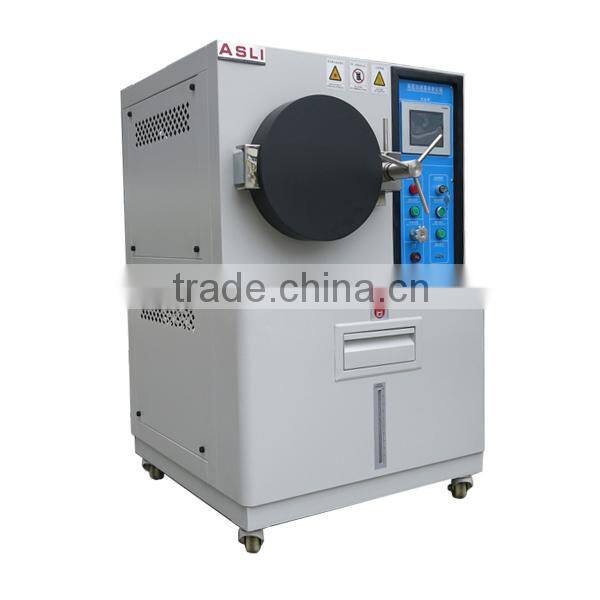

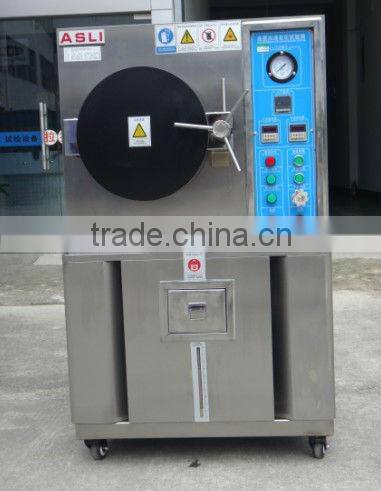

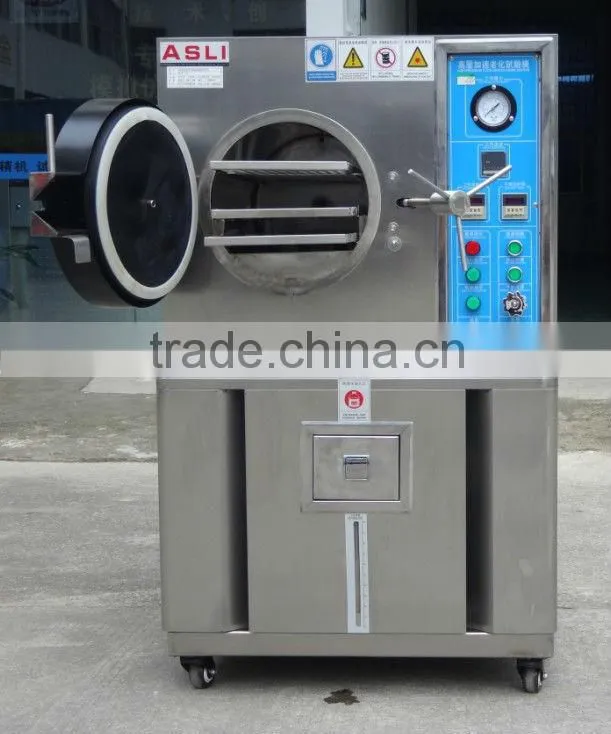

High Temperature/Pressure Aging Chamber
ASLI, as a leading high temperature/pressure aging chamber supplier from China, has more than 25 year’s experience in high temperature/pressure aging chamber manufacture. ASLI boost his own technical team in high temperature/pressure aging chamber R&D, and it also introduces the advance quality control method in high temperature/pressure aging chamber production. Our high temperature/pressure aging chamber series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
1.High Temperature/Pressure Aging Chamber Application:
High temperature/pressure aging chamber is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
2.High Temperature/Pressure Aging Chamber Safety device:
1.ASLI Brand high temperature/pressure aging chamber with safety device for the pot: If the inner box is not closed , the machine can not start
2. ASLI Brand high temperature/pressure aging chamber with safety valve: When the inner box’s pressure higher than the machine’s undertake value, it will self-relieve.
3. ASLI Brand high temperature/pressure aging chamber with double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. ASLI Brand high temperature/pressure aging chamber with cover protection: The inner box’s cover is made of aluminum alloy, can protect the worker from scald.
3. High Temperature/Pressure Aging Chamber Features:
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silic gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution .
4.Technical Parameters:
Model |
PCT - 25 |
PCT - 35 |
PCT - 45 |
PCT - 55 |
PCT - 65 |
|
Internal Dimension Φ×D (mm) |
300×250 |
350×450 |
450×550 |
550×650 |
650×750 |
|
External Dimension Φ×D (mm) |
750×1200×800 |
800×1250×800 |
900×1380×900 |
1050×1550×1100 |
1200×1700×1250 |
|
|
Temperature Range of Saturated Steam (Operating temperature) |
(Temperature Range of Saturated Steam:100ºC~135ºC) , Temperature Range: 120ºC,100Kpa/ 133ºC 200 Kpa;(143ºC is special order) |
|||||
|
Relative Pressure/ Absolute Pressure |
Relative pressure: display values indicated on the pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box) |
|||||
|
Comparison Table of Temperature, Humidity , Pressure of Saturated Steam |
|
|||||
|
Humidity of Saturated Steam |
100%RH saturation steam humidity |
|||||
|
Steam Pressure (Absolute Pressure) |
101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) |
|||||
Recursive Device |
Steam Natural convection circulation |
|||||
Safety Protective Devise |
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
|||||
Accessories |
Two layers stainless steel plate |
|||||
Equipment Capacity(L) |
17 |
43 |
87 |
155 |
250 |
|
Power |
AC 220V(±10%), 1 ø 3 Lines ,50/60HZ ; |
|||||
5.Warranty: one year free warranty for whole set machine,lifelong time maintainance.
6.After-sale service: feedback within 2 hours after get the call.
7.Service:OEM service,Design service,Buyer lable service.

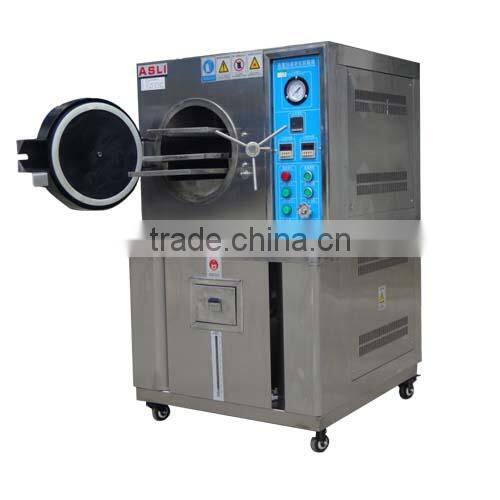

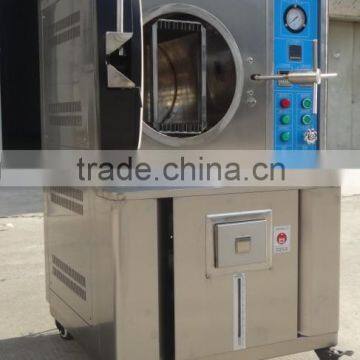

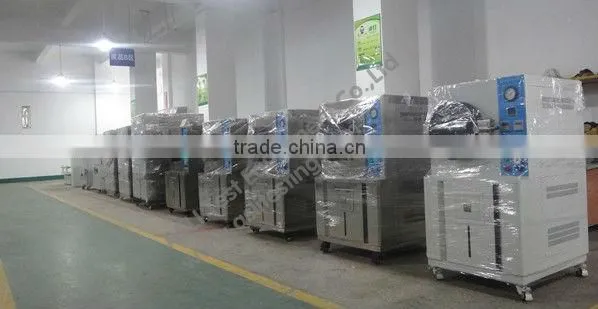

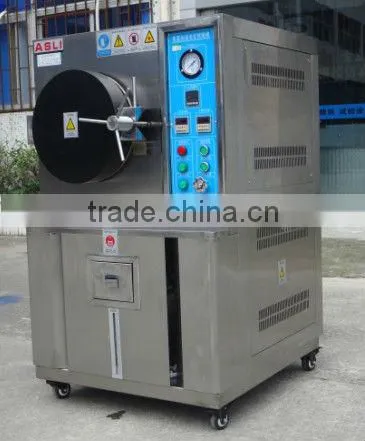

More picture for High Temperature/Pressure Aging Chamber:
