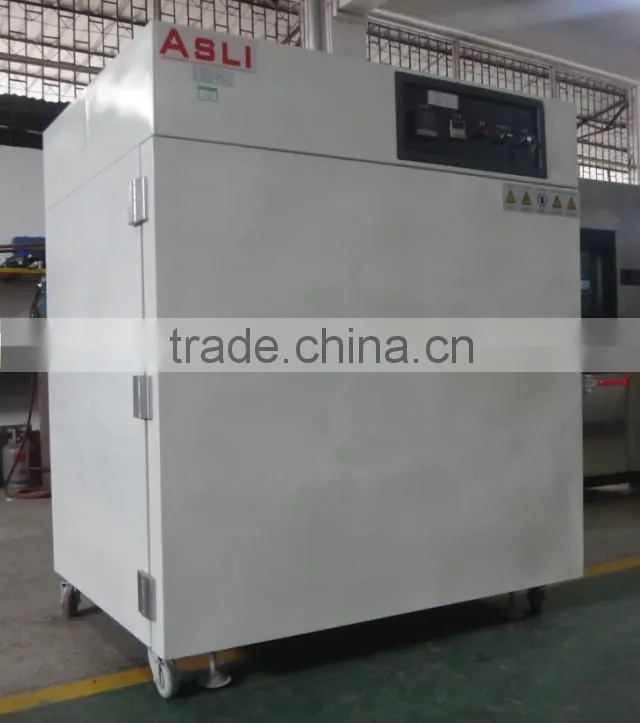

Burn-In Test Room application:
Burn In Test Room is applied for quality inspection for all types of big test samples, such as electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries
Burn-In Test Room features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular viewing window for the observation of the products under test, equipped with sweat proof electrical heating device that can prevent water steam from condensing into droplets, and with interior light.
3. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
4. French Tecumsehis used for the circulation system of compressor, capable of removing the lubricant between the condensation pipes and capillaries. Environment friendly coolant (R23, R404A)
5. LCD display screen, capable of displaying the measured value as well as the set value and time.
6. The control unit has the functions of multiples segment program editing, and of temperature ramp control
7. Casters are provided for ease of mobility, with strong positioning screws.
Burn-In Test Room technical parameters:
Model |
TAR-volume |
Inner Dimensions(cm) |
Customers designated space size and design |
Temperature Range |
RT+10°C to 80°C(80°C to 150°C is optional) |
Indication Resolution / Distribution Uniformity of Temperature |
0.1°C /±2.5°C; |
Control Accuracy of Temperature |
±0.5°C; |
Temperature Rising Velocity |
Approx. 0.1 to 3.0 °C/min |
Cooling System |
Refrigeration by compressor, according to customer’s requirements |
Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-temperature protection switch, fuses, fault warning system |
Optional Accessories |
Enter ramp , Recorder |
Compressor |
French Tecumseh , Germany Bizer |
Power |
AC 380V,50/60HZ |
