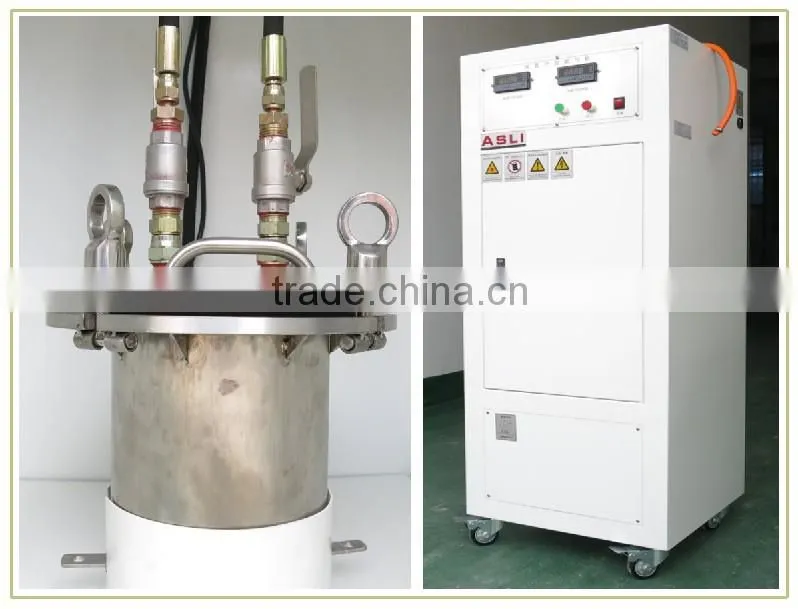

Vacuum Coating Chamber
application:
High Temperature Nitrogen Oven is used in the electronics industry, electrical, communications, hardware, chemical, sports equipment, printing, pharmaceuticals, footwear, automotive spare parts and other industrial for baking, drying, preheating and tempering, aging purposes.
Vacuum oven / Features:
1. Microprocessor temperature controller
2. Rapid sterilization time
3. Forced air convection
4. Auto stop when temperature over limit
5. Air inlet adjustment & timing control, the device is equipped with imported nitrogen flow meter, and with a quick plug nitrogen filling interface, convenient nitrogen filling and control the nitrogen flow.
Vacuum Coating Chamber / Technical Parameters:
Model |
RND - 45 |
RND - 60 |
RND - 90 |
RND - 120 |
Inner Dimension W×H×D(mm ) |
450×400×400 |
500×600×500 |
600×900×500 |
800×1200×700 |
Outer Dimension W×H×D (mm ) |
650×900×550 |
700×1200×650 |
850× 1600×700 |
1200× 1680×900 |
Inner and Outer Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
|||
Temperature Range |
RT~200ºC, (300ºC~500ºC is special optional) |
|||
|
Analytic Accuracy/Distribution Uniformity of Temperature |
0.1ºC/ ±2.0ºC;(When temperature is 100ºC) |
|||
Control Accuracy of Temperature |
±0.5ºC; |
|||
Temperature Rising Speed Rate |
Temperature rising speed rate: RT~200ºC; Approx. 35mins |
|||
Control Method |
Micro PID+SSR+Timer |
|||
Nitrogen Device |
Nitrogen in-out interface and pressure relief valve on the back of equipment, |
|||
Storage Shelf |
two layers |
|||
Observation Glass Window |
When temperature is RT-200ºC ,with observation glass widow When temperature is 200ºC-500ºC ,without observation glass widow |
|||
Power |
AC 220V , 1 ø ø 3 Lines,50/60HZ ; AC 380 V ,3 ø 5 Lines,50/60HZ |
|||
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 2 hours after get the call.
Service:OEM service,Design service,Buyer lable service.
