Small scale active lime production plant
- 10 Set / Sets per Month
- Qingdao/Shanghai/Tianjin
- T/T
Product Details
Place of Origin: | Henan, China | Brand Name: | Juxin | Model Number: | Various |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

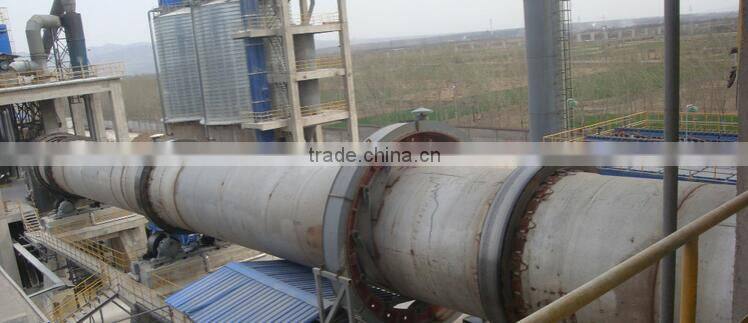

Lime Rotary Kiln Production Process
Lime can be divided into two ordinary lime and lime according to the nature of activity, the former mostly ordinary shaft kiln firing kiln and its degree of activity is generally less than 200ml,mainly for construction and road use; latter fired rotary kiln and its activity can reach 300 ~ 420ml.Lime kiln fired with the best quality, they are mainly used in steel smelting, chemical and power plant desulfurization calcium carbide industries
Lime Rotary kiln production process is the most advanced of all the activity in the lime production process, due to burning evenly, adaptability of raw materials, degree of activity of their products in more than 360ml, and some plants even reached 420ml.
Project includes the following sections:
1) screening of raw materials, the feeding system

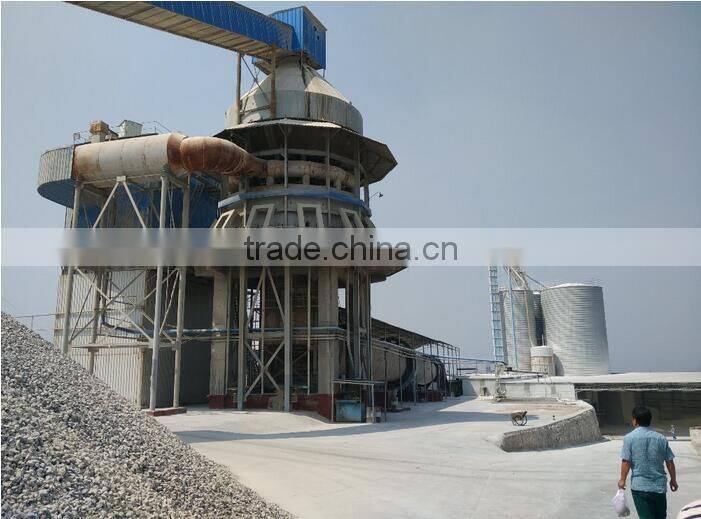

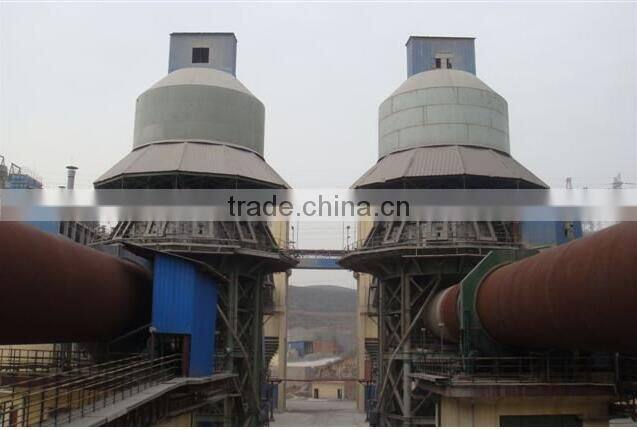

2)Preheater system
3)Rotary kiln calcined system
4)Burning system
5)Cooling system
6)Fuel gas treatment system
7)Coal preparation system
5)Lime powder processing and storage transportation systems
Pre-sale:Enthusiastic
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
All productds have to pass strict inspection with the drawings and process flow according to the contract before
After-sale:Considerate
To establish good business relationship,we adopt periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
Attention
1.We should install the machine under shelter from rain and do not put it in the open air directly.
2.Electric motor should be installed in the rear of the crusher and the direction of rotation should be consistent
with the crusher. Reverse is forbidden.
3.The machine has six ground screws fixed on the concrete flood. The foundation need a place left for
discharging the ore stone and the scope is not less than 50°. The base form should be decided by the users
according the model of the feeder and transportation facilities.
4.Before debugging the equipment, we should tighten the screws and connect parts and check the lubrication
conditions.
5.After launching, the machine should reach normal speed before feeding. The material should be inserted
from the front and do not from the side in case of overload caused the accident.
6.Feeding must be stopped before stopping the machine. Only all the material have been broken is spit out
entirely, stopping working is available.
Q:Payment
A:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the factory.
Q: What about Warranty? what will we do if the machine is broken down
A: The warranty period for all of structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q: What could you help me to do for the business ?
A: Many thanks for your trust , we can provide you with proposal chart for complete production lines,spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on for rotary washer for sand washing.
Q:Delivery time
A: Standard delivery time is 30 days from receipt of deposit,the special required machine is 45 days.
