Help CenterStable Performancerock Stone Washing Machine Made in China
Related Products
-
The Price of Screw Sand Washing MachineUS$ 2,500 - 8,000MOQ: 1 Set -
Efficientsand Washing Machine for Sale With Great PriceUS$ 3,150 - 8,000MOQ: 1 Set
-
New Type Machine for Sand Washing With High QualityUS$ 4,000 - 100,000MOQ: 1 Set
-
Top Quality and Low Price Screw Sand Washing MachineUS$ 3,150 - 8,000MOQ: 1 Set
-
Perfect After-sales Service Screw Sand Washing Machine With CE CertificationUS$ 3,150 - 8,000MOQ: 1 Set

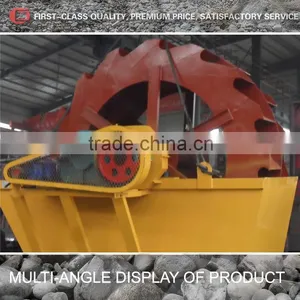

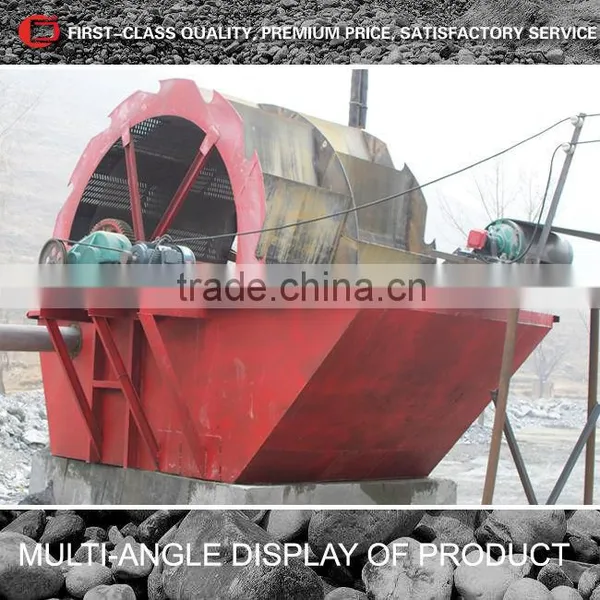

The function of rock stone washing machine

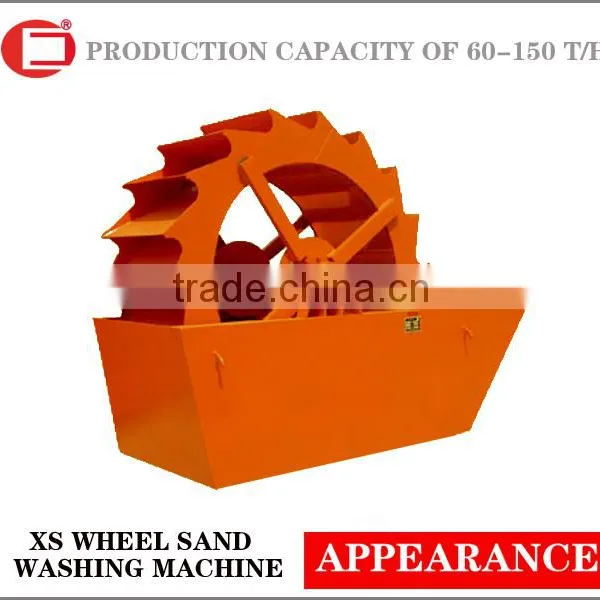

XS series Wheel Bucket washing equipments are widely used for washing and dehydration of building stone .They have the advantages :reasonable structure ,easy maintenance .
Wheel Bucket Sand Washing Machine is used to remove dust in sand .It aims at improving the quality of sand .Sand Making Machine is mainly used for sand factory ,electric pole factory ,worksite of building and concrete dam to wash ,classifying and de-watering various sands .
| Specifications |
|||||||
Model |
Diamater of impeller |
Feeding size |
Capacity |
Power |
Weight |
||
| XS2600(I) | 2600 | ≤10 | 20-80 | 5.5 | 2.4 | ||
| XS2600(II) | 2600 | 30-90 | 7.5 | 2.9 | |||
| XS2800(I) | 2800 | 60-150 | 7.5 | 5.1 | |||
| XS2800(II) | 2800 | 160-250 | 11 | 8.6 | |||
| XS3200 | 3200 | 240-300 | 11 | 11.4 | |||
| XS3600 | 3600 | 280-400 | 15 | 16.7 | |||
The capacity refers to limestone, professing capacity may vary with different materials and feeding size. | |||||||
Operating Principle of rock stone washing machine

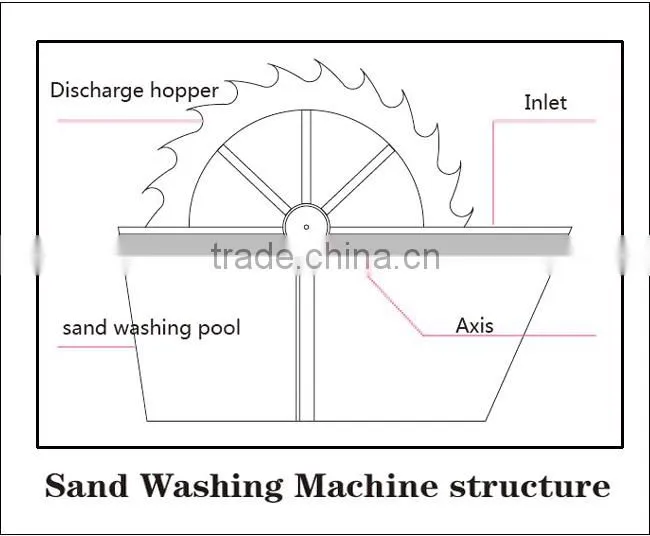

When rock stone washing machine working,the motor drives the impeller turning slowly through triangle belt,reducer,and the gear. The gravel enter into the tank-washer from feeding trough and rolled under the impeller's driving. They are grinded each other,removing the impurity covered on the gravel surface and destroy the water vapor window coated particle help to dehydration; At the same time,the feeding water form powerful flow to take the impurity and low specific weight foreign body away in time. They will be discharged from the overflow port of the tank-washer. The washing action is finished. The cleaning gravel is taken away by the impeller,the gravel are poured into the blow tank from the rotary impeller to achieve the gravel wash action.
2 Long life,easy maintenance .
3 Saving water resources
4 No pollution,high abluent degree .
5 Reasonable structure
Pre-sale:Enthusiastic
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
All productds have to pass strict inspection with the drawings and process flow according to the contract before
After-sale:Considerate
To establish good business relationship,we adopt periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
Attention
1.We should install the machine under shelter from rain and do not put it in the open air directly.
2.Electric motor should be installed in the rear of the crusher and the direction of rotation should be consistent
with the crusher. Reverse is forbidden.
3.The machine has six ground screws fixed on the concrete flood. The foundation need a place left for
discharging the ore stone and the scope is not less than 50°. The base form should be decided by the users
according the model of the feeder and transportation facilities.
4.Before debugging the equipment, we should tighten the screws and connect parts and check the lubrication
conditions.
5.After launching, the machine should reach normal speed before feeding. The material should be inserted
from the front and do not from the side in case of overload caused the accident.
6.Feeding must be stopped before stopping the machine. Only all the material have been broken is spit out
entirely, stopping working is available.
Q:Payment
A:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the factory.
Q: What about Warranty? what will we do if the machine is broken down
A: The warranty period for all of structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q: What should we need to do for if we want to get a best quotation
A: Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )
2).feed size
3).stone type
Q: What could you help me to do for the business ?
A: Many thanks for your trust , we can provide you with proposal chart for complete production lines,spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on for rotary washer for sand washing.
Q:Delivery time
A:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
