Hand Pipe Cutting Machine

Name: Hand Pipe Cutting Machine
Brand: YILANG
SKU: 110153265
Availability: InStock

US$ 200 - 300 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

YILANG

Nanning ChuanJun Welding Hardware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name YILANG

Model Number CG2-11S

Voltage AC220/50V/HZ

Dimension(L*W*H) 515*370*510MM

Weight 16.5KG

Certification CE ISO

Warranty 1 Year

After-sales Service Provided No overseas service provided

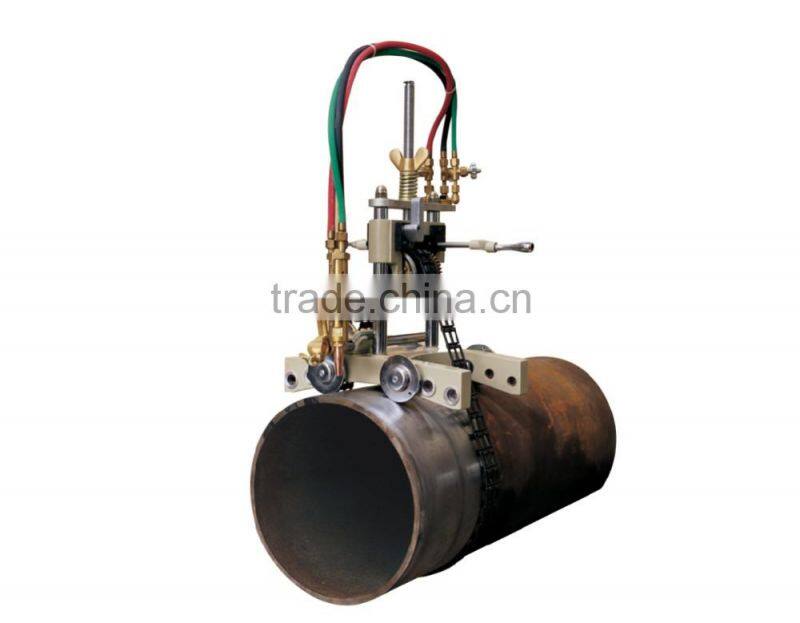

Hand Pipe Cutting Machine

Features

1.Operate the machine by hand-operated mode.

2. It has four paralleled road wheels and locks machine with the chains rounded steel tube.

3.There are three groups paralleled installation wheel in the base-plate .

4.It has impacted structure, light weight and can cut continuously.

Product Description

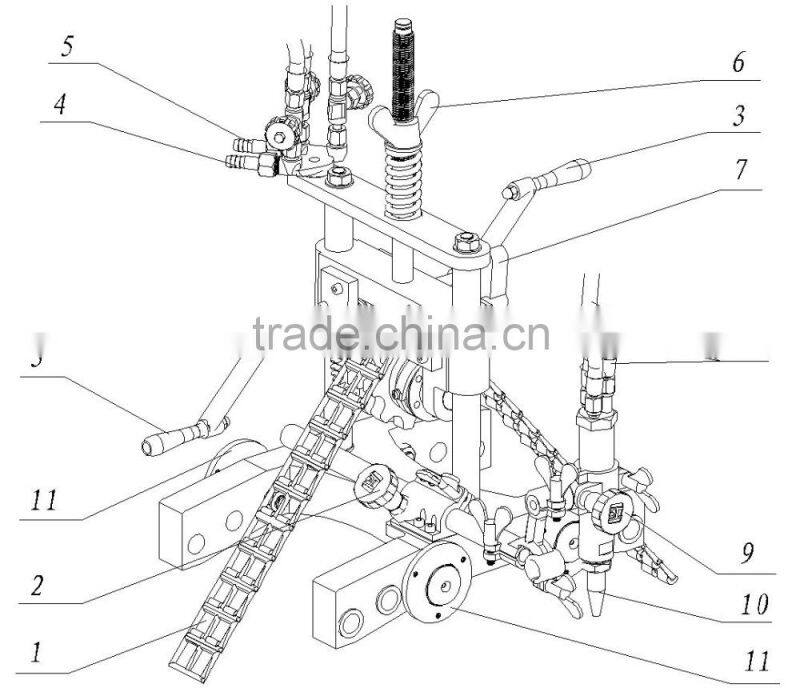

1. Chains: Lock machine with the chains rounded steel tube and drive the machine with the chain driving. Travel round the wall of the tube.	7. Declutcher control lever of clutch: Separating the clutch can make the machine moving fast on the steel tube. After getting to the required place, close the clutch.
2. Traversing wheel: Turn the wheel to make the torch move left or right.	8. Hose: Install three hoses in gas allotter: preheat, fuel gas, cutting oxygen.
3.Swing hand grip: Swing clockwise can make the machine move forwards, and counter-clockwise can make backwards	9.Up-down modulated hand wheel in the torch
4.Fuel gas-in junction	10.Tip
5.Oxygen-in junction	11. Road wheel
6.Big aerofoil screw: Modulate the degree of tightness of the installation pipe.	11. Road wheel

Specification

1 Weight (body)	:16.5 kg
Accessory	:2.5 kg
2 Machine dimension	:515×370×510mm
3 Bevel form	:I form or V form (The biggest angle is 45°)
4 Resetting precision	:1mm (The circumference of the tube is in 1000mm)
5 Cutting steel tube diameter	:250-1000mm (Collocated standard chain)
6 Cutting pipe wall thickness	:5-50mm (Standard torch collocation)

Packaging & Shipping

After quality testing,our products will be well packed.

1 First wrapped by plastic film

2 Then fixed by EPE foam

3 Carton box outside

1.Standard package
1)Body(Hand grips bilateral are installed in reverse)	1set
2)Standard torch and sections	1set
3)Chains(115knot)	1pc
4)Tip(G02 or G03)	3pcs each
5)Gas-in junction	1set
6)Torch linker	1pc
7) Specification sheets and certificate of qualification	1pc each
