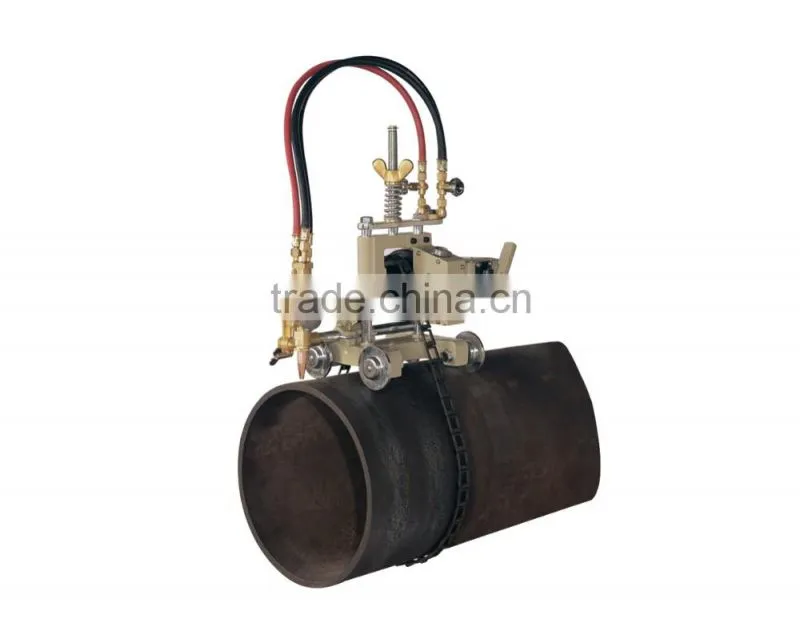

Automatic Flame Cutting Machine Pipe Gas Cutter

Name: Automatic Flame Cutting Machine Pipe Gas Cutter
Brand: YILANG
SKU: 110153201
Availability: InStock

US$ 600 - 700 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

YILANG

Nanning ChuanJun Welding Hardware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name YILANG

Model Number CG2-11D

Voltage AC220/50V/HZ

Dimension(L*W*H) 265*420*450MM

Weight 16KG

Certification CE ISO

Warranty 1 Year

After-sales Service Provided No overseas service provided

Automatic Flame Cutting Machine Pipe Gas Cutter

Features

1.It has good performance to cut various pipes and groove cut.

2.The machine adopts motor shift driving

3.You can increase or decrease chain according to the diameter of pipe.

4.It has impacted structure, light weight and can cut continuously.

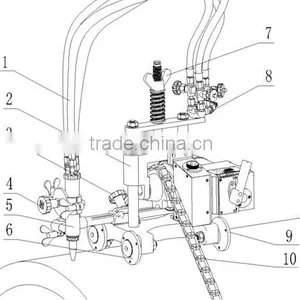

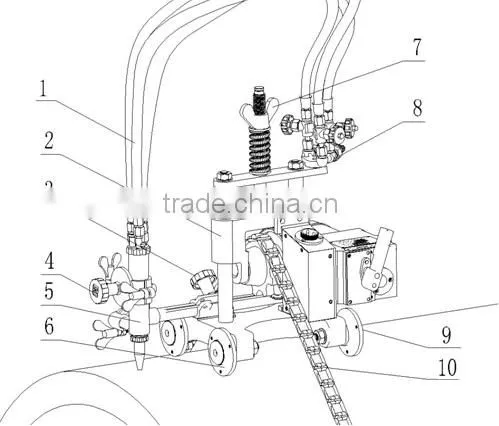

Product Description

1.Hose:Connect them to gas distributor. There are three hoses: preheating oxygen hose, fuel gas hose and cutting oxygen hose.	6.Roller wheel :To make the machine walks smoothly on the pipe wall.
2. Sliding support	7. Wing nut:Revolve it to tighten the chain to fix machine on pipe.
3.Cross feeding hand wheel :To adjust horizontal position of torch.	8.Gas distributor:Gases are preheating oxygen, fuel gas and cutting oxygen.
4.Lift hand knob of torch:To adjust the height of torch.	9.Body
5. Torch:The cutting thickness is about 5-50mm	10. Chain

Specification

1.Weight(body)	16KG
Accessory	7.8KG
2. Machine dimension	280mmX280mmX450mm
3. Power source	AC 220V±10%
4. Cutting speed	50~1150mm/min
5. Cutting thickness	5-50mm
6. Groove angle	0°--45°
7. Cutting diameter	ø150-ø600mm
8.Tip	GO2(acetylene) GO3(propane)
9. Motor	70ZYT08 85W 6000r/min
Accessory
Tip GO2(acetylene) or GO3(propane) #1,#2,#3		1 pc each
Tip cleaner		1set
Chain(82 chain shackle)		1set
Electric appliance case		1pc
Wrench		1pc
Fuse		2pcs
Notice: The biggest cutting diameter is 600mm due to the collateral chain. If the cutting diameter is above 600mm, you should increase chain which need be purchased.

Packaging & Shipping

After quality testing,our products will be well packed.

1 First wrapped by plastic film

2 Then fixed by EPE foam

3 Carton box outside

1) Main body	1set
2) Standard torch unit assemblage	1set
3) Connector of torch	1set
4) Electric case	1set
5) Tip cleaner	1set
6) Tip GO2(acetylene) GO3(propane)	1pc each
7) Chain(82 chain shackle)	1 set
8) Fuse (2A)	2 pcs
9) Specification sheets and certificate of qualification	1 pc each
