Help CenterHot Sale PEX Series of Used Jaw Sand Maker With Low Price
Related Products
-
Price Lists of Double Roll Sand Making Machine for SaleUS$ 2,800 - 26,400MOQ: 1 Set -
Price of Vertical Granite Sand Maker for SaleUS$ 1 - 300,000MOQ: 1 Set
-
Building Industrial Vsi Sand Making MachineUS$ 1,000 - 100,000MOQ: 1 Set
-
Hot Sale Small VSI Sand Maker at Factory PriceUS$ 1,000 - 100,000MOQ: 1 Set
-
Price of Large Vertical Shaft Sand Brick Maker for SaleUS$ 1,000 - 55,000MOQ: 1 Set
Function
When you need to crush the hard stone product into sand products with high quality, your best option for you personally is the PE series of jaw sand-making machine, and this series of sand maker is widely used as the fine crusher in the modern stone-crushing production plant and sand-making production plant.
Structure

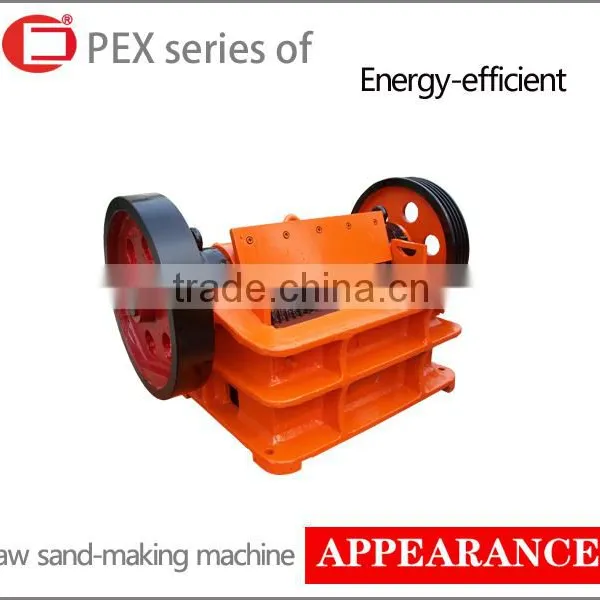

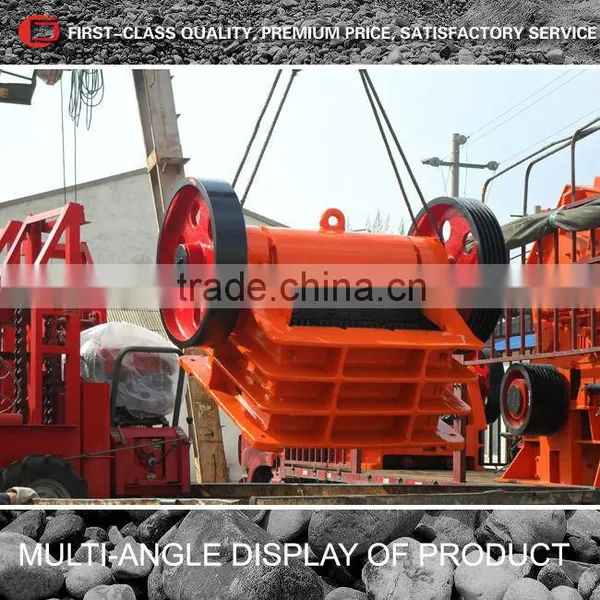

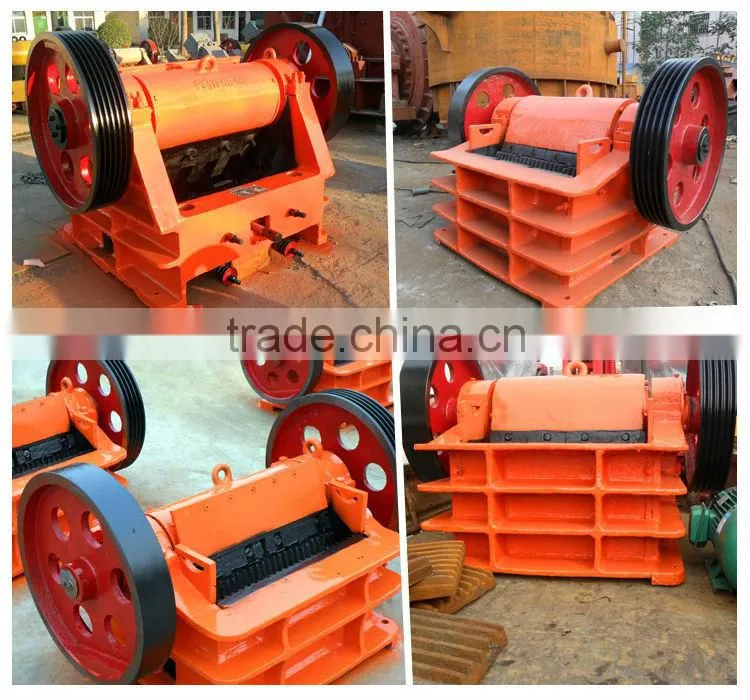

In fact, PE series of used jaw sand maker is the jaw fine crusher, and it is mainly consisted of housing, jaw plates(movable and stable), flying wheel and belt wheel, edge guard, toggle plate, motor and other main components.
Application
Jaw sand maker is widely used in mining , metallurgy, building material and chemical industry. And they are very suitable for crushing these following materials:
Advantages
Beacuse of its special manufacturing process and structural properties, PE series of used jaw sand maker has many advantages:
1 Deep crushing chamber and no dead zone.
2 High crushing ratio ,uniform products sizes.
3 Simple structure, reliable operation, low operating cost, convenient, large adjustment range.
4 Lubrication system is safe and reliable.
5 Gasket type nesting population adjusting device, reliable and convenient, large adjustment range.
6 The equipment save energy 15%--30%.
| Specifications | |||||||||
|
Model |
Feed opening size |
Max feeding size |
Adjustable range |
Capacity |
Speed |
Weight |
Power |
Dimension |
|
Length |
Width |
||||||||
| PEX100*600 | 600 | 100 | 80 | 7-20 | 3-10 | 330 | 1.0 | 7.5 | 750*1660*595 |
| PEX150*750 | 750 | 150 | 120 | 10-40 | 8-30 | 300 | 3.5 | 15 | 1380*1658*1025 |
| PEX250*750 | 750 | 250 | 210 | 15-50 | 15-40 | 320 | 5.5 | 30 | 1420*1921*1528 |
| PEX250*1000 | 1000 | 250 | 210 | 15-50 | 15-50 | 330 | 6.5 | 37 | 1550*1964*1380 |
| PEX250*1200 | 1200 | 250 | 210 | 15-60 | 18-60 | 330 | 7.7 | 37 | 1840*2912*1580 |
| PEX300*1300 | 1300 | 300 | 250 | 20-90 | 40-100 | 300 | 11 | 75 | 1930*2400*1747 |
The capacity refers to limestone, professing capacity may vary with different materials and feeding sizes. | |||||||||
Working Principle

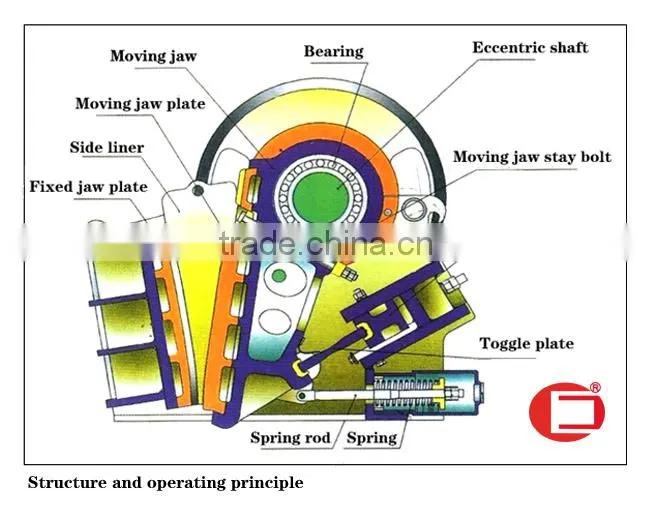

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft of used jaw sand maker. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Pre-sale:Enthusiastic
We offer you the early planing of the project, the best process flow design, choose the best appropriate equipment model to design products according to your special needs.
Sale: Integrity
All productds have to pass strict inspection with the drawings and process flow according to the contract before they go out. We assigned the technicians to the producing spot to provide installation guide, testing and training.
After-sale:Considerate
To establish good business relationship, we adopt periodical visit to the users. We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
Q: Payment?
A: 30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client's satisfactory inspection of the equipment prior to the goods leaving the factory.
Q: What about Warranty? And what will we do if the machine is broken down?
A: The warranty period for all of structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q: What should we need to do for if we want to get a best quotation?
A: Hi, if you want us recommend a suitable type for you, please let us know the details as follows:
1) The capacity (tons per hour ) do you need?
2) The size of the raw materials and the size of the finished products?
3) What's your main raw materials?(soft or hard materials? water content?)
Q: What could you help me to do for the business?
A: Many thanks for your trust, we can provide you with proposal chart for complete production lines, spot inspection and operator traning according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, loader, trucks, excavators and so on for rotary washer for sand washing.
Q: Delivery time?

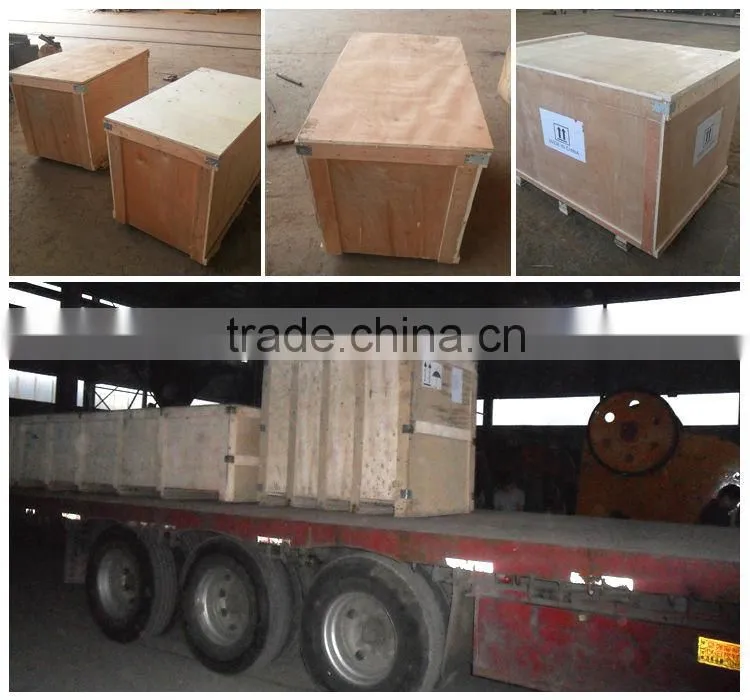

A: Standard delivery time for stationary crusher plant is 30 working days from receipt of deposit, the mobile crusher plant is 45 working days.
