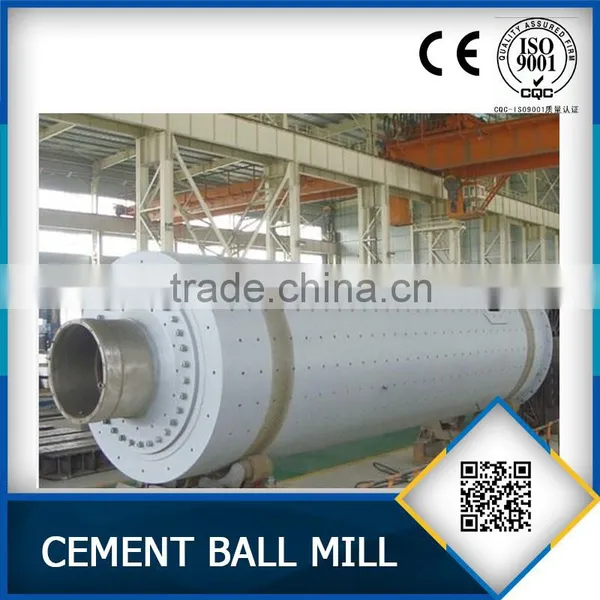

Cement grinding mill is the key equipment for grinding after the crushing process,which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal.We can supply any type of ball mill.If you are interested in our ball mill,coal ball mill,and cement ball mill.Contact us!
Cement grinding Plant Introduction:
cement grinding is the key equipment for secondary grinding after crushing. And it is suitable for grinding all kinds of ores and other materials, no matter wet grinding or dry grinding. Besides, it is mainly applied in many industries, such as ferrous&non-ferrous metal mine, building materials, chemical, electric power, coal, traffic, light industry, etc. In our company, this series of high-efficiency ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%. According to different discharging ways, it can be divided into two kinds, grate type and overflow type.
Working principle of Cement grinding :

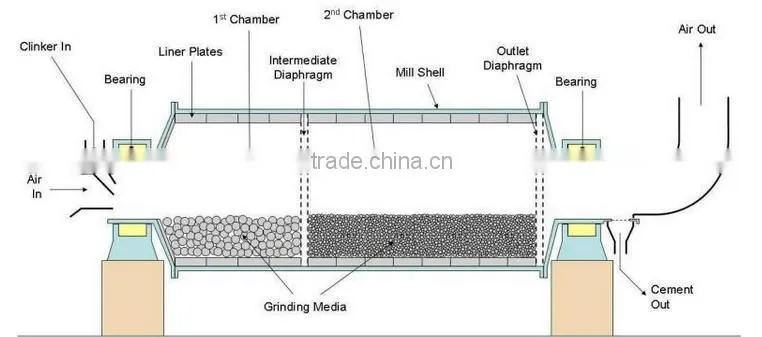

The cement grinding has horizontal cylindric rotating device, outer rotating with gear, two warehouses, is lattice-type ball mill. Material from the feeder device throuth hollow shaft of feeder evenly into the first warehouse of cement grinding , there are ladder liner and ripple liner in the warehouse , built by steel ball with different specifications , rotating cylinder produces centrifugal force take the ball to a certain height then fall,have a impact of the thumping and grinding for the material. After the material in the first warehouse reach coarse grinding,pass throuth single-wall partition into the second position, the warehouse lined with flat lining and steel balls in it ,have further grinding for the material . Powder discharged through the discharging plate to complete the grinding operation.
Structural characteristics of Cement grinding :
This cement grinding is made up of feeder part ,discharging part ,rotating part ,transmission part(reducer,samll transmission gear ,motor,electric control) etc. main part.Hollow shaft adopt steel casting, lining can be converted,big rotating gear processed by casting gear hobbing .In the barrel there are board of wear-resistant,have a good characteriatics of wear-resisting.The machine is of steady operating and reliable working.
Structure of Cement grinding :

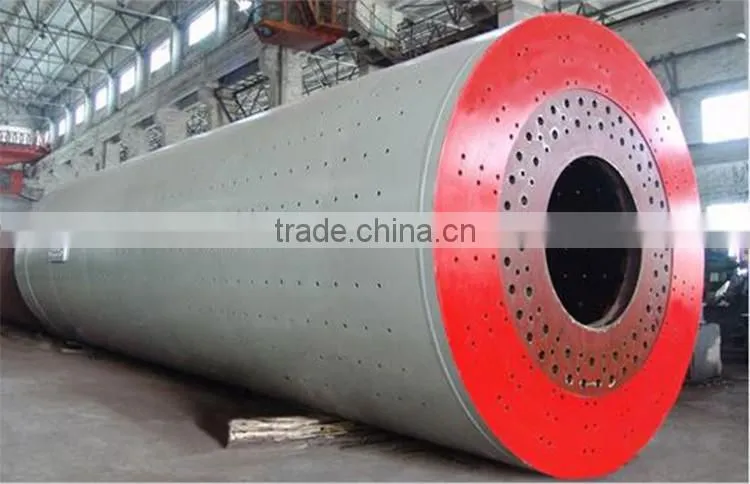

Host of ball mill include cylinder,and cylinder are equiped with liner made from wear-resistant material and bearing bear cylinder and maintain it to rotate ,also have driving parts,such as motor, and transmission gear, pulley, V-belt etc.
Performance characteristics of Cement grinding :
1.This series cement grinding is of wide scope of application , simple structure and easy maintenance.
2.This series ball mill has a big processing capacity, the advantages of continuous operation is obvious .
3.Cylinder liner and grinding media can use a variety of materials, corrosion resistance is strong, and use is wide.
4.This series ball mill is of convenient installation and commissioning , easy to operate.
5.This series ball mill productivity is high, the cost of use is low.
Pre-sale:Enthusiastic
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
All productds have to pass strict inspection with the drawings and process flow according to the contract before
After-sale:Considerate
To establish good business relationship,we adopt periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
Attention
1.We should install the machine under shelter from rain and do not put it in the open air directly.
2.Electric motor should be installed in the rear of the crusher and the direction of rotation should be consistent
with the crusher. Reverse is forbidden.
3.The machine has six ground screws fixed on the concrete flood. The foundation need a place left for
discharging the ore stone and the scope is not less than 50°. The base form should be decided by the users
according the model of the feeder and transportation facilities.
4.Before debugging the equipment, we should tighten the screws and connect parts and check the lubrication
conditions.
5.After launching, the machine should reach normal speed before feeding. The material should be inserted
from the front and do not from the side in case of overload caused the accident.
6.Feeding must be stopped before stopping the machine. Only all the material have been broken is spit out
entirely, stopping working is available.
Q:Payment
A:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the factory.
Q: What about Warranty? what will we do if the machine is broken down
A: The warranty period for all of structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q: What should we need to do for if we want to get a best quotation
A: Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )
2).feed size
3).output size
4).stone type
Q: What could you help me to do for the business ?
A: Many thanks for your trust , we can provide you with proposal chart for complete production lines,spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on for rotary washer for sand washing.
Q:Delivery time
A: Standard delivery time is 30 days from receipt of deposit,the special required machine is 45 days.
