1.Construction

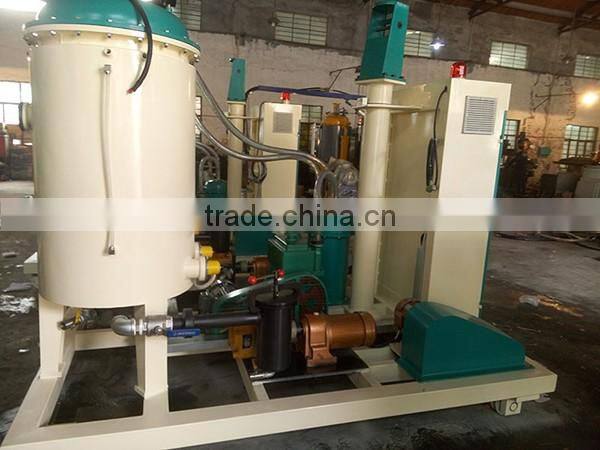

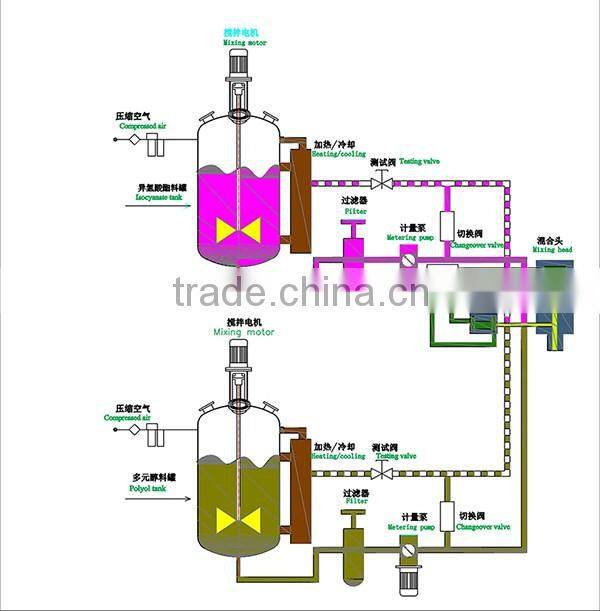

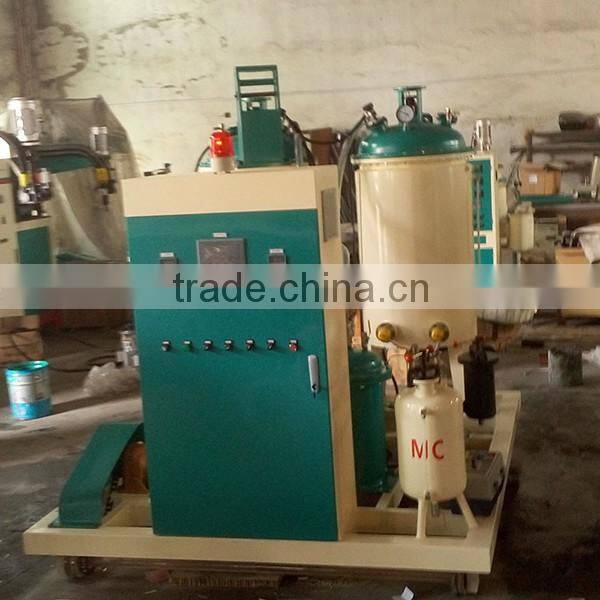

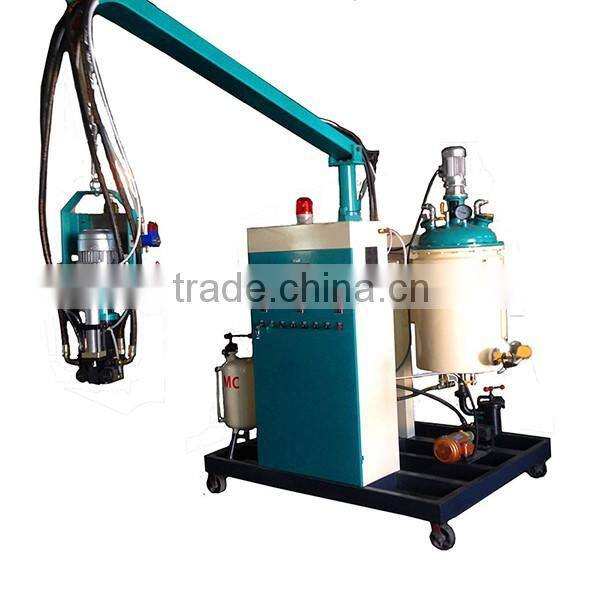

The machine consisted of electrical control system,mixing head,chemical tanks,metering pumps,frequency converter,control and adjust system of temperature,rotate speed and pressure,cleaning system,air push system and base frame etc.
2.Feature
*Adopt rotary valve type three-cylinder,prevent blocking of casting hole and cleaning hole.Isochronous operation of casting and mixing ensure the quality of product.
*Adopt high precision metering and frequency converter,variable frequency speed regulation,stable operation,easy to use.
*Adopt microcomputer controller to set and adjust data of casting,clean and air push works.Display and adjust data of temperature,pressure from data display instruments,temperature error ≤2℃.
3.Main parameters
NO. |
Model |
Output(KG/MIN) |
Volume of tank(L) |
Power(KW) |

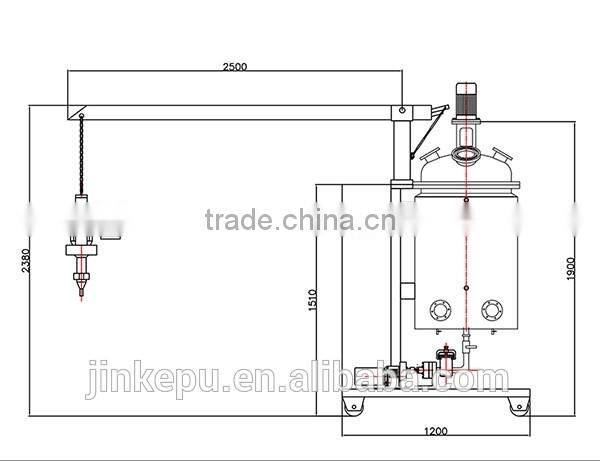

Appearance(mm) |
1 |
PU20D-Y1 |
1.5-4 |
120~160~220 (Optional) |
9 |
1500*1160*2060
|
2 |
PU20D-Y2 |
4-12 |
9 |
1500*1160*2060
|
|
3 |
PU20D-Y3 |
8-20 |
10.5 |
1500*1160*2060
|
|
4 |
PU20D-Y4 |
15-40 |
12 |
1500*1300*2120
|
|
5 |
PU20D-Y5 |
20-60 |
12 |
1500*1300*2120
|
|
6 |
PU20D-Y6 |
30-80 |
13.5 |
1500*1300*2120
|
|
7 |
PU20D-Y7 |
40-120 |
17 |
1500*1300*2120
|
|
8 |
PU20D-Y8 |
60-160 |
20.5 |
1500*1300*2120
|
|
9 |
PU20D-Y9 |
80-200 |
20.5 |
1500*1300*2120
|
4.Application
Used to produce flexible high resilience,slow rebound,integral skin and rigid foam.
Such as cushions of sofa,motorcycle,bike and auto,armrest,imitation wood furniture,steering wheel and some insulation board etc.
1.Export standard plywood cases for better care when transport;
2.Ocean shipping, air transportation or land transportation for choices.
1.Free to visit, introduce, do Selection Guide;
2. Free to visit home clients to know in-service condition of machine;
3. Test and adapt whole setting data here as according clients’demands;
4. Send experienced engineers to guide installation, operation, debugging and maintain;
5. Rich supporting suppliers of molds, chemical and others for reference.
1. More than 20 years PU equipments industry experience;
2. Advantaged production equipments and modern industrial workshops;
3. Strong R & D team and skilled assembly workers;
5. Strict quality control and perfect after-sales service.
1. Application field: Manufacture various PU foam mattress, cushion, acoustic insulating material, backrest, sofa, memory pillow, PU foam tires, self skinning foam arm rest, integral skin foam bumper and toys etc;
2. Chemical material: polyol and isocyanate;
3. Components and capacities: 2 or 3 even more components, 87-435g/s, 160-800g/s, 375-1875g/s, 750-3750g/soutput etc;
4. Temperature types: Normal temperature;
5. Multicolor products manufacture: additional color paste adding systems selectable.
