Packaging & Delivery
| Packaging Detail: | CDH type vertical lifting clamp:High quality double wall carton |
| Delivery Detail: | 20 days afer receipt of payment |
Specifications

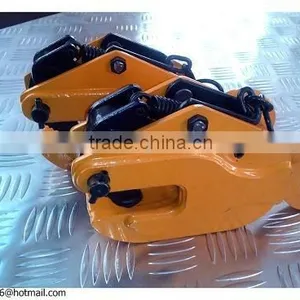

CDH type plate vertical lifting clamp
1. low- carbon high quality alloy steel
2. Capacity: 0-16T
3. ISO9001:2008
DSQA type steel plate vertical lifting clamp
Capacity: 0-16T
Material: Low-carton high quality alloy steel
Plate lifting clamps are mechanically operated for smooth, fast and safe handling of plates both horizontally and vertically. These clamps will hold the plates with a friction gripping force, which can be locked through a lever, while holding the plate. Till the lever is unlocked, the plates are not released. They are very safe for handling of plates, with minimum manpower.
1.The rated loading is the maximum weight as the angle is 60 degree and a pair of clamps are
recommended.
2. One unit for working load limit, you can use one unit or two pieces matched use in the working.
3. It can only hoist one steel plate at one time, stack up lifting is forbidden.
4. To crash the cargos in the working is also forbidden.
5. It is necessary to pull the link handle up for straining the spring when hoisting the cargos.
And press the link handle down when loading off, after releasing the spring, clamp and steel plate
will separate.
6. Can be made according to customers' design and requirement.
The technical parameter of CDH type vertical lifting clamp
| Mode No. | Open size | Working load | Weight | ||||||||||||||||||||||||||||||||||||||||||||
| mm | kg/2pcs | kg | |||||||||||||||||||||||||||||||||||||||||||||
| DSQA0.75 | 0-15 | 750 | 2.6 | ||||||||||||||||||||||||||||||||||||||||||||
Packaging & Delivery
SpecificationsCDH type plate vertical lifting clamp CDH type steel plate vertical lifting clamp Capacity: 0-16T Material: Low-carton high quality alloy steel
Plate lifting clamps are mechanically operated for smooth, fast and safe handling of plates both horizontally and vertically. These clamps will hold the plates with a friction gripping force, which can be locked through a lever, while holding the plate. Till the lever is unlocked, the plates are not released. They are very safe for handling of plates, with minimum manpower. 1.The rated loading is the maximum weight as the angle is 60 degree and a pair of clamps are recommended. 2. One unit for working load limit, you can use one unit or two pieces matched use in the working. 3. It can only hoist one steel plate at one time, stack up lifting is forbidden. 4. To crash the cargos in the working is also forbidden. 5. It is necessary to pull the link handle up for straining the spring when hoisting the cargos. And press the link handle down when loading off, after releasing the spring, clamp and steel plate will separate. 6. Can be made according to customers' design and requirement.
The technical parameter of CDH type vertical lifting clamp
|
0-20 | 1000 | 5.5 | ||||||||||||||||||||||||||||||||||||||||||||
| CDH2 | 0-25 | 2000 | 6 | ||||||||||||||||||||||||||||||||||||||||||||
| CDH3 | 0-30 | 3000 | 10 | ||||||||||||||||||||||||||||||||||||||||||||
| CDH5 | 0-50 | 5000 | 16.5 | ||||||||||||||||||||||||||||||||||||||||||||
| CDH8 | 0-60 | 8000 | 24 | ||||||||||||||||||||||||||||||||||||||||||||
| CDH10 | 0-60 | 10000 | 33 | ||||||||||||||||||||||||||||||||||||||||||||
| CDH16 | 0-70 | 16000 | 56 |
