Worm Gear Manual Winch Lifting Equipment
US$ 44 - 270
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Model Number:
HWA(HWV)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
OEM
Model Number
HWA(HWV)
Power Source
Hand
Application
Boat
Capacity
250kgf-2000kgf, 250KG-2000KG
Characteristic

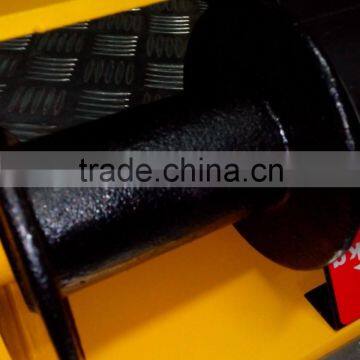

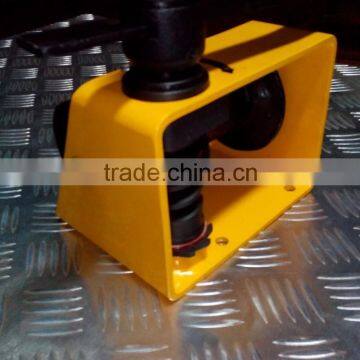

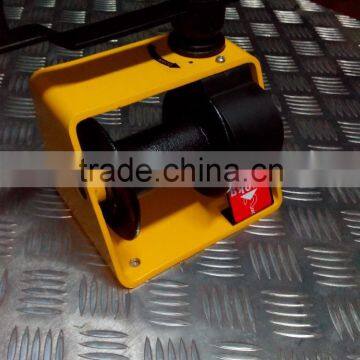

The HWV winch is available in capacities from 250 kg to 2000 kg .High capacity models are fitted with a dual speed feature as standard , which allows rapid lifting of light loads . Supported within a robust one piece steel frame , the drum which can accept up to 25m of wire rope .The drum incorporates a frees pooling release catch (except the 250kg model) which allows rapid manual rope pay out . It is driven through a worm gear mechanism which incorporates a heavy duty ratchet brake.
. Robust - easy to use design
. Free spooling release catch
. smooth operation
. automatic brake
. rapid winding facility
. adjustable crank length for maximum mechanical advantage
. high quality gears and breaking mechanisms
Product Features :

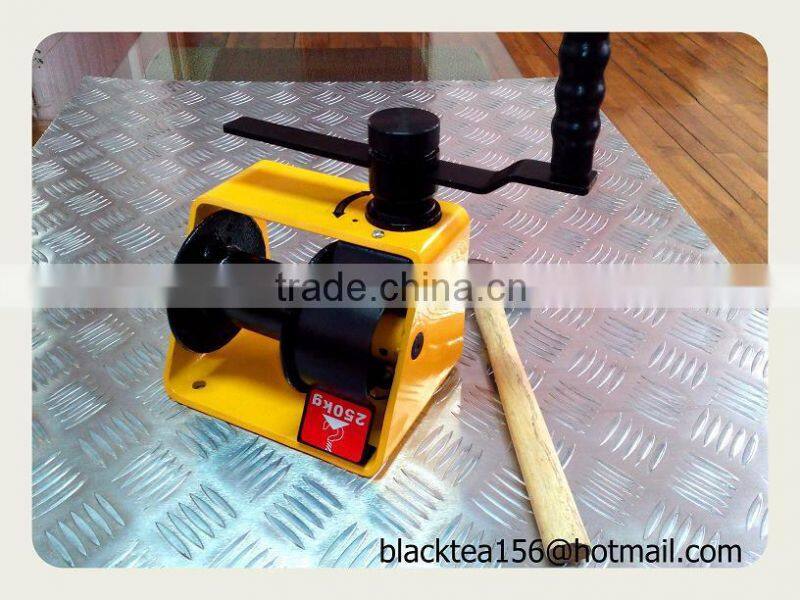

- Worm hand winch (manual winch)with vertical handle
- Allows for better load control and features a reinforced frame, comfort-grip handle

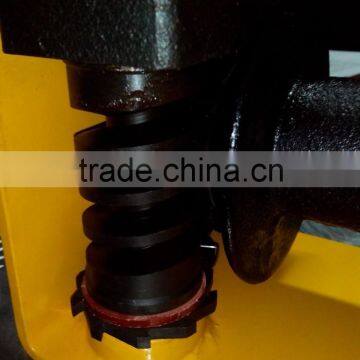

- Worm gear provides load holding capability when handle is released
- Reel stops automatically, locking load in place whenever the handle is released
- Measures 7-inches length by 10-1/4-inches width by 7-inches height
| Model | VS250 | VS500 | VS1000 | VS2000 |
| S.W.L(kg) | 250 | 500 | 1000 | 2000 |
| For wire rope(mm) | 5 | 6.8 | 9 | 13 |
| Length(m) | 20 | 25 | 35 | 40 |
| Number of layers | 4 | 4 | 4 | 2 |
| N.W.(kg) | 10 | 16 | 30 | 55 |
| Capacity(kg) | 250 | 500 | 1000 | 2000 |
| A(mm) | 150 | 180 | 300 | 340 |
| B(mm) | 330 | 360 | 490 | 534 |
| C(mm) | 150 | 180 | 300 | 340 |
| D(mm) | 200 | 260 | 300 | 395 |
| E(mm) | 240 | 240 | 370 | 370 |
| ¢x(mm) | 5×20 | 6.8×25 | 9×35 | 13×17 |
| Drive ratio | 15:1 | 21:1 | 26:1 | 86.6:1 |
| FOB Price(USD) | 48 | 82 | 167.5 | 368 |
